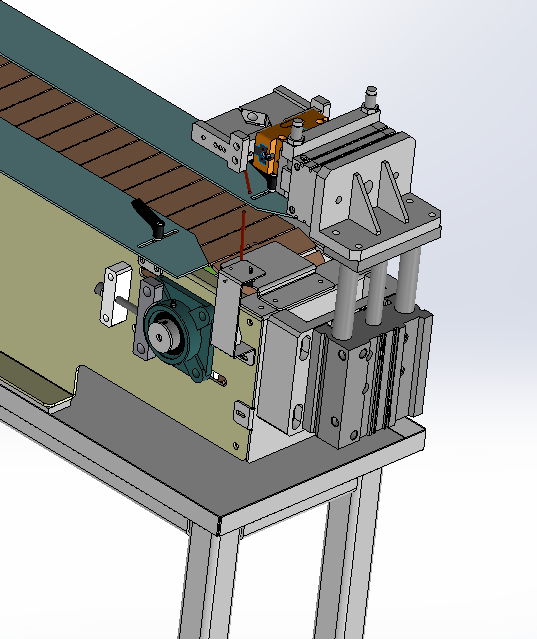

A turning mechanism for the end of a single-row conveyor line (used for the unloading bin and transfer station)

A turning mechanism for the end of a double-row conveyor line (intended for the terminal of a 30-unit storage bin)

A turning mechanism for the end of a four-row conveyor line (intended for the termination point of a 60-unit storage bin)

The automated flip mechanism for CNC machine tools adopts a combined design of "guide rod cylinder + rotary cylinder + finger cylinder". These three cylinders work together to achieve precise 360° flipping of products.

As an important part of the CNC machine tool automation system, this flip mechanism optimizes the product processing and circulation rhythm through its precise and stable 360° flipping function, empowering the production line to reduce costs, increase efficiency and realize automation upgrading.
