Outer Race Groove Milling Machine: A Core Equipment Driving the Future of Power Transmission Systems

With the rapid rise of new energy vehicles and high end equipment manufacturing, the requirements for machining accuracy, efficiency, and stability of key transmission components have reached new levels. As a crucial part of the constant-velocity joint (CVJ) structure, the outer race plays an essential role in ensuring transmission efficiency and durability. The machining quality of its internal grooves directly affects overall vehicle performance. In this process chain, the groove milling machine, known as the "core machine tool for forming ball cage components," has become the preferred equipment for many automotive component manufacturers seeking high-end and intelligent production.

I. The Key Value of Outer Race and Ball Cage Machining

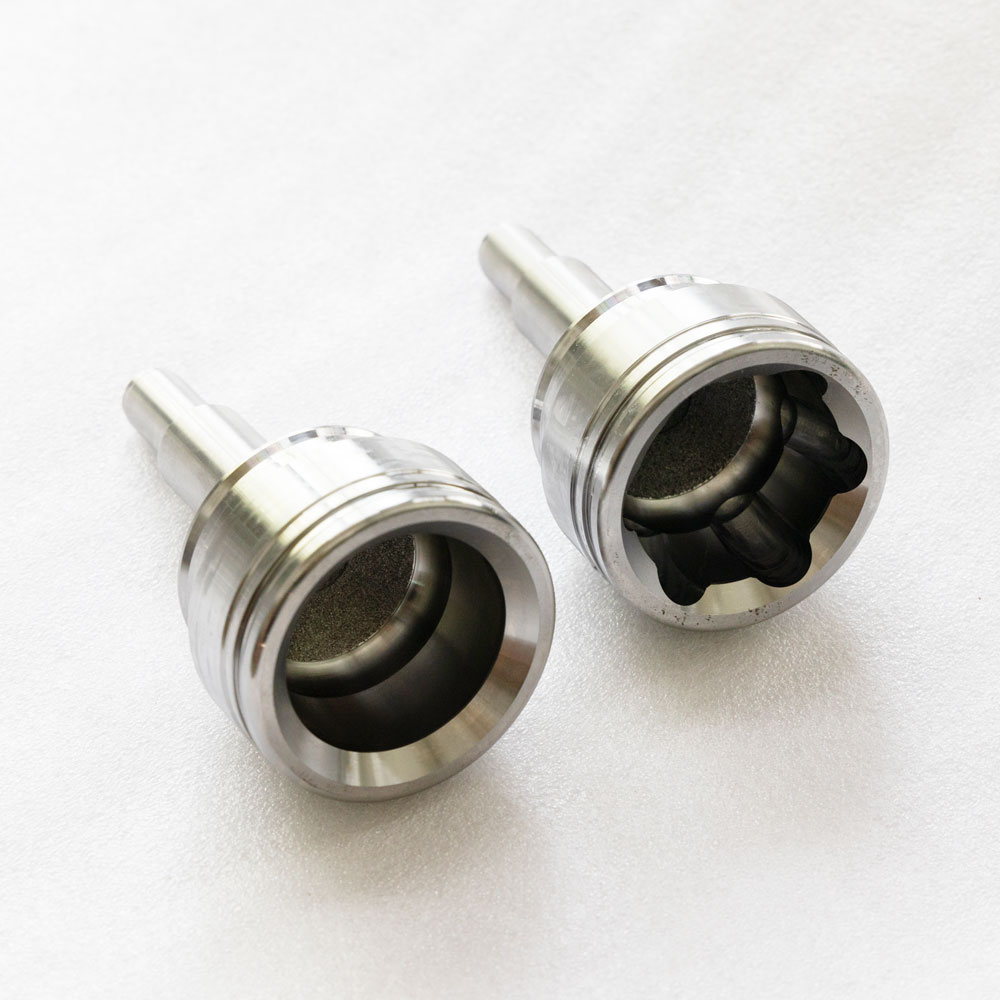

The outer race is a vital connecting component between the engine and transmission system and one of the core parts of the constant-velocity joint. Its six internal grooves must maintain extremely high consistency, concentricity, and curved surface accuracy. These grooves not only transmit torque but also ensure the constant-velocity characteristics. Therefore, any variation in machining parameters will affect the stability of the entire transmission system.

Traditionally, groove machining required multiple processes such as rough milling, semi-finish milling, and final finishing. However, with advancements in manufacturing technology, the groove milling machine has taken over as a key piece of equipment. Especially for outer race machining, the groove milling machine significantly improves efficiency and, more importantly, ensures complete spatial consistency of the curved groove profile.

II. Technical Positioning and Process Flow of the Groove Milling Machine

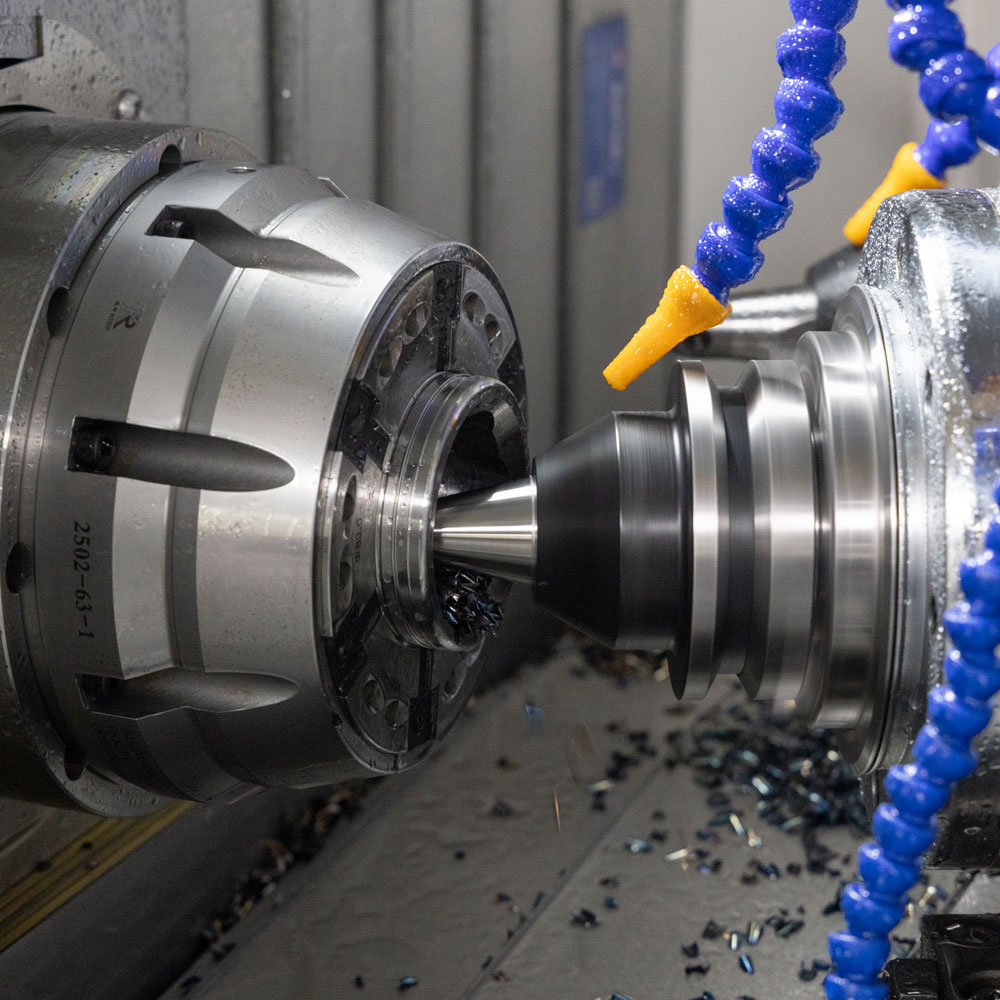

A groove milling machine is a high-speed, high-precision piece of equipment specifically designed for machining outer races, ball cages, and other complex spatial groove components. For outer races, the groove milling machine typically adopts two arc-shaped groove cutters working simultaneously, enabling all groove forming operations to be completed in one clamping. Compared with traditional machining methods, the groove milling machine offers remarkable advantages in accuracy, efficiency, and stability.

Typical process route:

Outer race pre-machining

Groove milling machine for rough & finish composite milling

Hard turning & hard milling machine for final precision machining

Final inspection

Automated warehousing

In this process chain, the groove milling machine undertakes the most critical curved surface forming task. The groove geometry, surface roughness, positional tolerance, and symmetrical consistency of all six grooves must be completed on the groove milling machine.

III. Structural Market Growth for Groove Milling Machines in 2025

According to the 2025 Outer Race Groove Milling Machine Market Research and Monitoring Report, the global demand for high-precision curved surface components continues to grow, presenting unprecedented development opportunities for groove milling machines.

The report highlights three main growth drivers:

1. Rapid Expansion of the New Energy Vehicle Supply Chain

NEVs require lightweight, high efficiency, and low loss driveline components. The rising demand for CVJ assemblies directly fuels the market for groove milling machines. Many major NEV manufacturers are expanding production, making the groove milling machine an essential addition to new transmission component production lines.

2. Growing Demand Driven by Global Manufacturing Reshoring

Industries such as aerospace, industrial robotics, and engineering machinery are increasing their use of precision transmission components. The groove milling machine, known for its ability to machine complex 3D grooves, is becoming more widely adopted across these sectors.

3. Accelerated Trend Toward Automation and Smart Manufacturing

Groove milling machines have evolved from standalone units to integrated systems featuring automated production lines, online measurement, and smart processing. Their added value continues to rise.

The report indicates that the groove milling machine market in 2025 is entering a "structural growth" period where high end, high precision, and highly automated groove milling machines become mainstream.

IV. Automated Production Line Solution Centered on the Outer Race Groove Milling Machine

In many recent industrial projects, the groove milling machine is no longer used as a single machine but integrated into a flexible production line made up of “three core machines + automation.” A typical configuration includes:

● Groove Milling Machine (Primary Forming)

Two arc-shaped groove cutters working simultaneously

One-clamping completion of all grooves

Five-axis linkage ensures curved surface accuracy

Adaptive machining adjusts load and trajectory in real time

● Hard Turning & Hard Milling Machine (Finishing)

Precision refinement of outer race grooves

Machining of sphere seat surface, inner bore, and other key areas

Ensures final dimensional and geometric accuracy

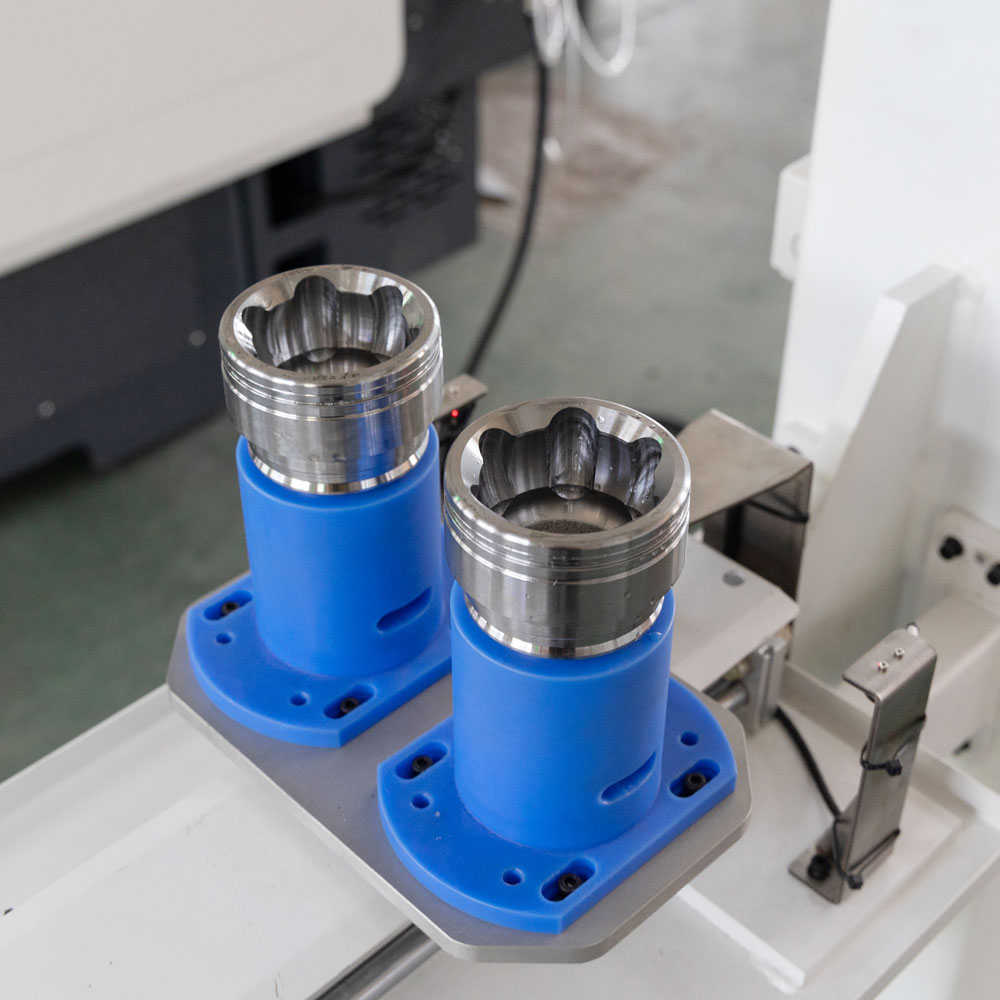

● Online Inspection System

Full dimensional measurement

Automatic form & position tolerance evaluation

Real time data feedback to the groove milling machine

Enables closed-loop machining control

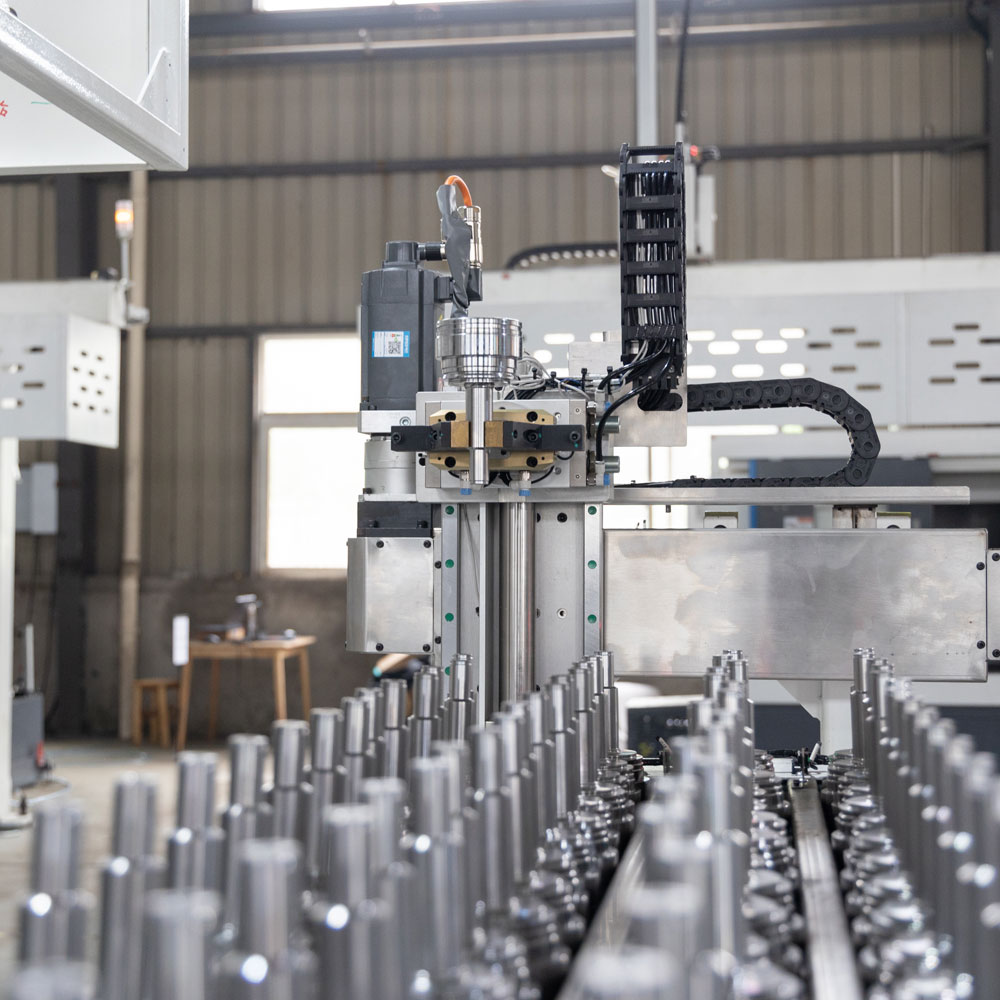

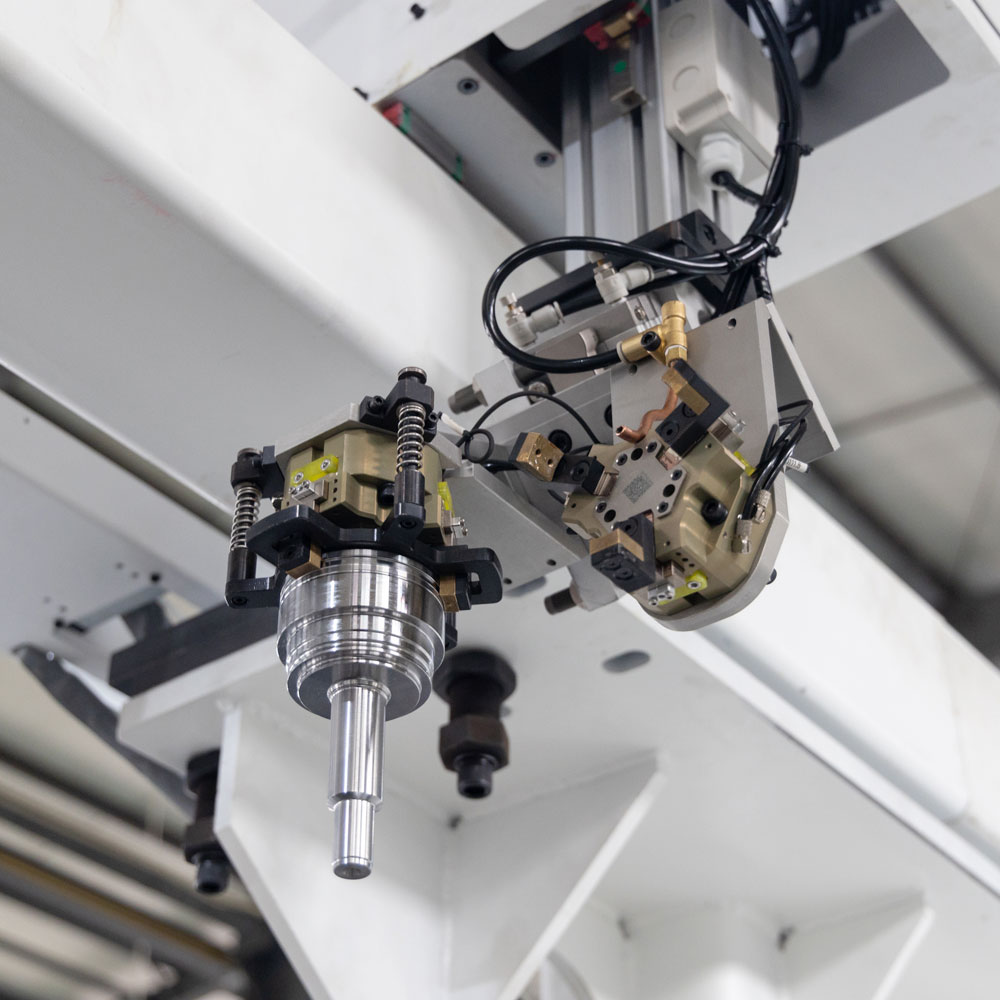

● Robotic Automated Material Handling System

Automatic loading, unloading, flipping, and positioning

Stable cycle time

Compatible with multiple outer race specifications

In this configuration, the groove milling machine acts as the core and pacing center of the entire production line. When the three machines work cooperatively, overall production efficiency reaches more than three times that of a traditional single-machine automated setup.

V. Key Technical Highlights of the Groove Milling Machine

Five-axis linkage structure

Provides highly accurate 3D toolpath generation suitable for outer race and ball cage groove machining.

Dual-cutter simultaneous machining

Two arc shaped cutters work at the same time, improving efficiency and ensuring perfect consistency among all grooves.

Online inspection & closed-loop control

Dimensional data is automatically fed back to the groove milling machine to enable real-time tool compensation.

Adaptive cutting system

Automatically adjusts feed and cutting parameters when machining different materials, reducing vibration and extending tool life.

Deep automation integration

The groove milling machine seamlessly connects with robots, AGVs, and MES systems, becoming a key node in intelligent factory workflows.

VI. Typical Application Industries

The groove milling machine is widely used in:

New energy vehicle CVJ manufacturing

Traditional automotive driveline systems

Aerospace transmission joints

Industrial robot joint bearings

High end machinery precision motion components

In the NEV industry especially, demand for groove milling machines is surging as the requirements for outer race groove stability become increasingly stringent.

VII. Case Study: Major Automotive Manufacturer Procurement Project

In this project, the customer--a globally renowned automotive manufacturer—adopted a three-machine production line solution consisting of a groove milling machine + hard turning & hard milling machine+automated inspection system. Through dual-cutter machining, adaptive cutting, and closed-loop inspection, groove accuracy and consistency were significantly improved.

Customer feedback showed that after implementing the groove milling machine–based production line, annual productivity increased by approximately 2.8 to 3 times, with a substantial reduction in scrap rate.

VIII. The Groove Milling Machine Will Play an Even More Critical Role in Future Manufacturing

The value of the groove milling machine lies not only in its ability to machine outer race grooves with high precision but also in its integration with the wider manufacturing ecosystem. As new energy vehicle supply chains grow, high-end equipment manufacturing advances, and smart factories accelerate, the groove milling machine will continue to serve as a key enabler pushing the accuracy and efficiency of CVJ core components to new heights.
