Automated Lathe Solution for Efficient Inner and Outer Diameter Turning of outer race

In the modern manufacturing industry, lathes play a vital role in metal cutting and precision machining. From automotive components and engineering machinery to hydraulic parts and everyday hardware, countless products rely on lathe turning to achieve the required accuracy and surface finish. As one of the most fundamental metalworking machines, the lathe has long been an indispensable piece of equipment in machining workshops.

During industrial exhibitions, one can easily notice that lathes and machining centers always occupy a large portion of the show floor. With the continuous progress of automation and digital manufacturing, lathes have evolved from manual and semi-automatic types into highly intelligent and automated CNC systems. These modern lathes combine precision, efficiency, and flexibility, meeting the needs of both small-batch and mass production.

I. Development and Types of Lathes

Traditional lathes include conventional engine lathes, CNC lathes, and multi-functional turning-milling compound machines. Conventional lathes are suitable for small batches and diverse part types, but they rely heavily on manual operation. CNC lathes, on the other hand, can achieve higher precision and consistent quality through program-controlled automation.

With further technological development, automated lathes have become a major trend. By integrating robotic arms, loading and unloading stations, inspection tables, and buffering mechanisms, an automated lathe system can achieve continuous, unmanned operation. This reduces labor intensity, cuts costs, and significantly improves production efficiency.

 II. Machining Features of the outer race

The outer race is a critical component in automotive drivetrains, commonly found in tripod housings and constant velocity joints (CV joints). Its structure features both inner and outer circular surfaces that demand high precision, especially in roundness, coaxiality, and surface finish.

Traditionally, machining these surfaces required multiple setups on separate lathes or machines. Each re-clamping increased cycle time and introduced positioning errors. In contrast, an automated CNC lathe can complete both inner and outer diameter turning in a single setup, improving accuracy, consistency, and production efficiency.

III. Automated Lathe System Overview

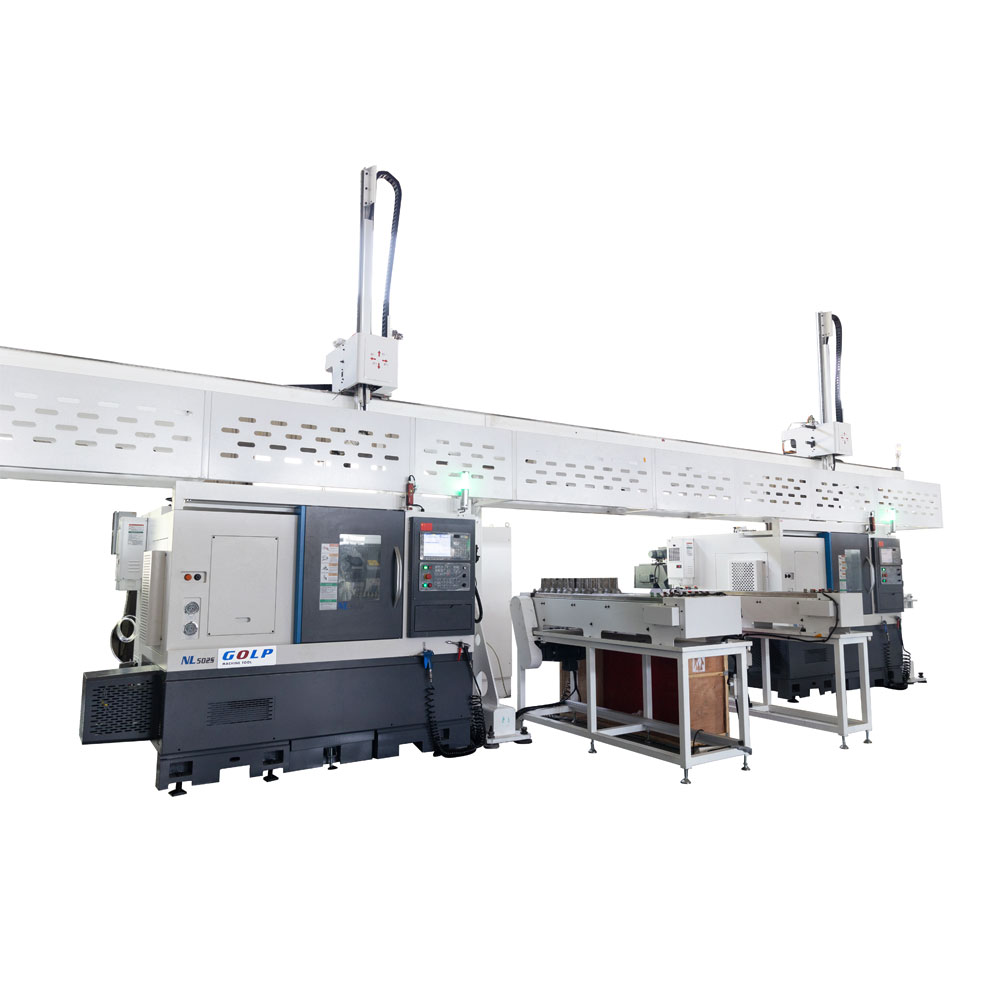

The presented solution utilizes an automated CNC lathe equipped with an 8-station rotary turret and a quick-change tool system, designed specifically for high-precision turning of outer race inner and outer diameters. The entire automation line integrates a gantry robot, dual loading magazines, independent unloading conveyor, inspection stations, and buffering tables, forming a complete production unit.

System Configuration:

Two-axis gantry robot (dual-arm structure) for automatic loading and unloading.

Two loading magazines with independent channels--magazine 1 stores approximately 60 pieces, magazine 2 stores about 30 pieces.

Independent unloading line, around 1 meter long, for smooth product outflow.

Single-station and dual-station inspection tables for easy manual quality checks.

Buffering table to avoid interference between dual machining heads and synchronize unloading.

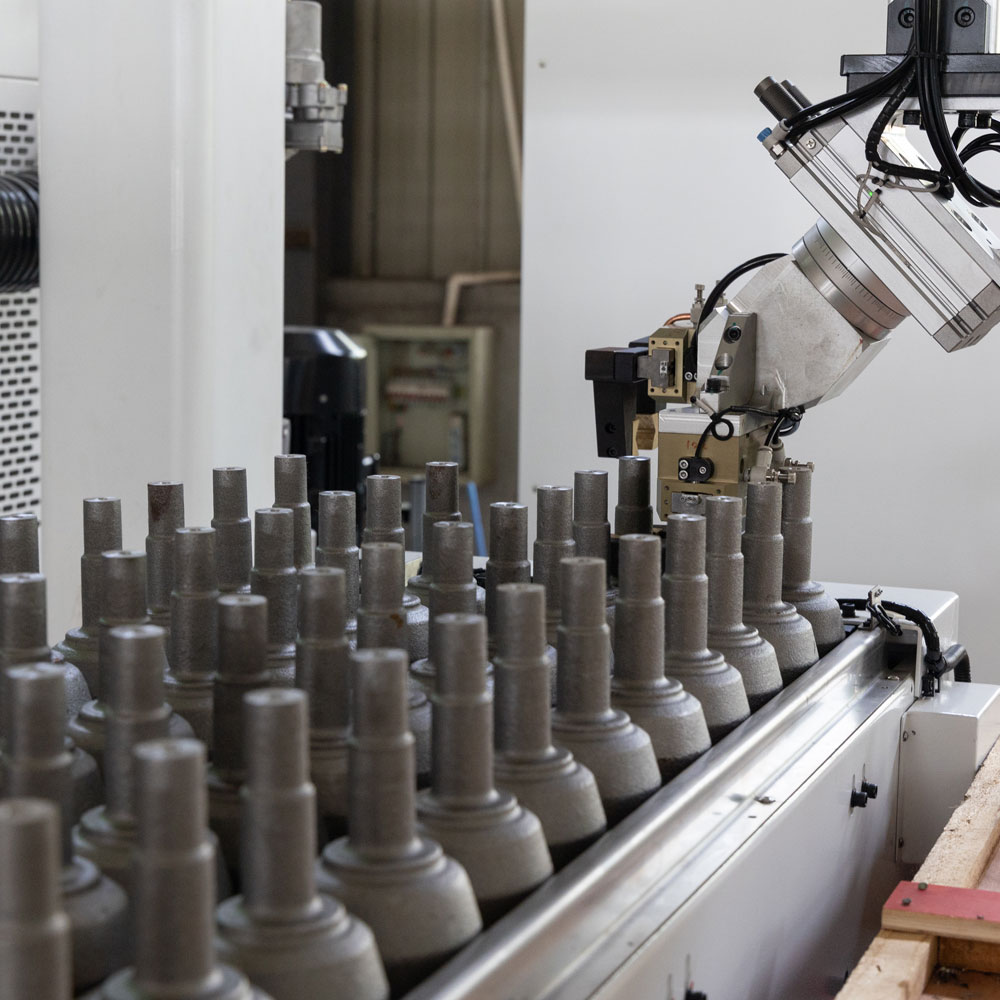

The robot's dual-gripper design allows simultaneous part exchange, improving loading efficiency. Finished parts are automatically placed on the main conveyor line. Each storage bin adopts a closed-end design with V-block positioning to ensure alignment accuracy. The distribution unit uses a servo-driven clamping cylinder to transfer parts between the main line and side magazines, achieving efficient material distribution.

IV. Machining Workflow

1. Loading: The gantry robot picks up raw blanks from the magazine and accurately places them into the lathe chuck.

2. Turning Process: The lathe performs both rough and finish turning on the outer race's inner and outer diameters.

Rough turning: Removes excess material, forming the basic geometry.

Finish turning: Achieves precise dimensions and smooth surfaces.

3. Unloading: After machining, the robot removes the finished part and places it on the main conveyor or buffer station.

4. Buffering and Transfer: To prevent collision between two machine heads, the buffering table temporarily stores parts and delivers them to the main line once clear.

5. Inspection: Parts are manually inspected at single or dual inspection tables. Qualified pieces can be reintroduced to the production line.

This fully automated process ensures stable cycle times, continuous operation, and consistent quality across batches.

V. Technical and Performance Advantages

1. High Productivity

The automated lathe operates continuously with minimal downtime. Its dual-gripper robot achieves fast material exchange, while the 8-station turret and quick-change tool system reduce idle time, enabling high speed, stable production.

2. Excellent Precision and Stability

Thanks to its rigid spindle system and high accuracy servo drives, the lathe delivers outstanding precision in inner and outer diameter turning. Reduced manual handling further enhances dimensional consistency and repeatability.

3. Labor and Space Efficiency

A compact layout allows one operator to supervise multiple lathes. This minimizes labor requirements and optimizes workshop space utilization.

4. Intelligent Monitoring and Traceability

The lathe can be equipped with a data monitoring system that records machining parameters, part counts, and alarms, ensuring process traceability and supporting digital production management.

5. Reliable Structural Design

The closed-end magazines with V-block positioning ensure accurate feeding. The servo controlled sorting mechanism and buffering system prevent machine interference and idle waiting, keeping the entire lathe line running smoothly.

VI. Application Results and Industrial Value

This automated lathe solution has been successfully implemented in several automotive component plants, mainly for tripod housings and CV joint housings. The system allows one lathe to complete both inner and outer turning in a single cycle, delivering exceptional efficiency and precision.

Measured production results include:

Cycle time reduced by 30% compared with traditional setups;

Product yield above 99%, with stable quality;

Operator workload cut by 50% per shift.

These achievements demonstrate the substantial economic and technical benefits of adopting an automated lathe in outer race machining.

VII. Conclusion

The continuous evolution of  lathe technology reflects the overall transformation of the manufacturing industry toward automation and intelligence. The automated lathe has become not only a symbol of modern production efficiency but also a foundation for achieving consistent high quality results.

For components like the outer race, which require both high precision and productivity, an automated lathe provides the ideal balance between efficiency, accuracy, and reliability. With intelligent control, servo driven automation, and flexible tooling systems, the lathe ensures fast cycle times, stable performance, and long-term cost savings.

Looking ahead, as digital manufacturing, smart inspection, and industrial connectivity continue to advance, the lathe will further evolve into a core part of smart factories. The combination of automated lathes, robotic handling, and data-driven management will create a truly flexible, unmanned machining environment--setting new standards for precision and efficiency in the global manufacturing industry.
