On-Site Filming Report of an Automated Broaching Machine:

Efficiency, Precision, and the Power of Automation

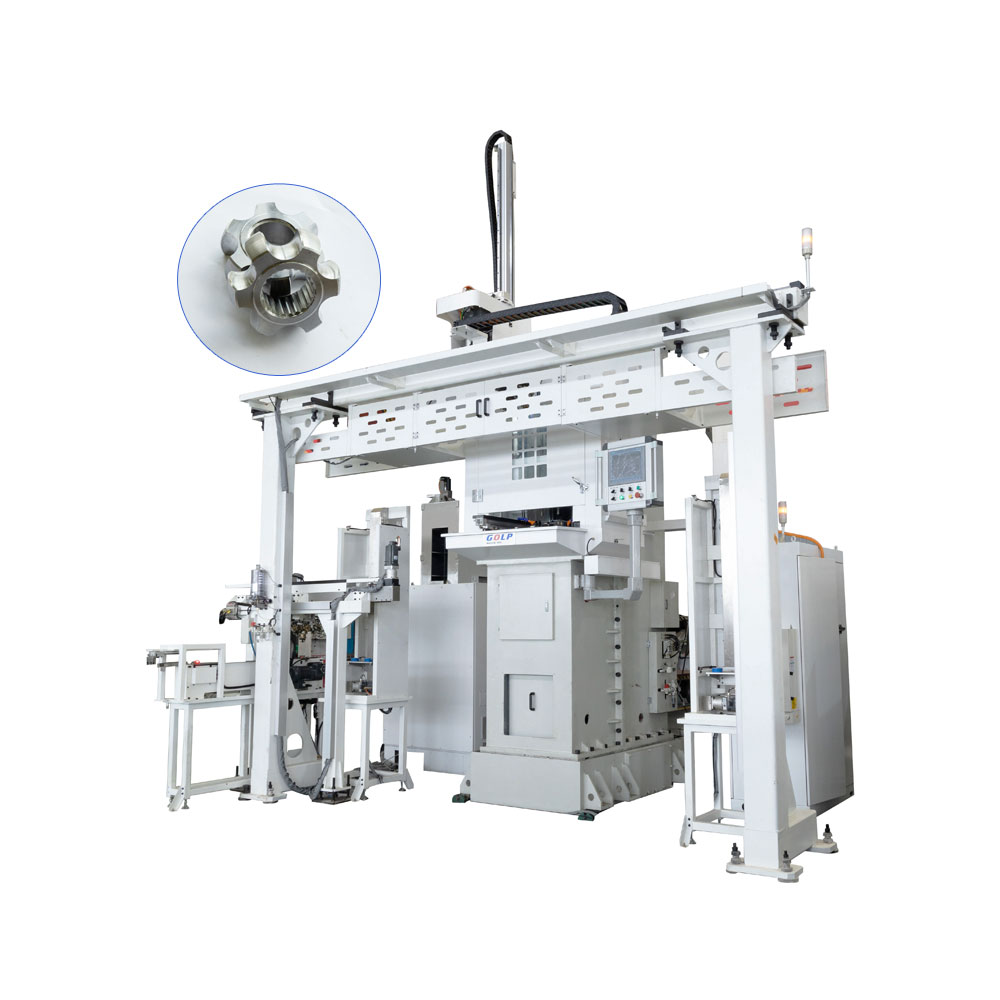

During this factory visit, our focus was to film and document an automated broaching machine used for broaching the internal spline of a inner race. As a key piece of equipment for the customer, this automated broaching machine not only performs the core broaching task but also integrates a gantry robot, automatic grippers, a lifting module, and a complete loading/unloading system--forming a highly efficient, fully automated line.

When we first arrived on-site, the equipment made a strong visual impression. Because the automated broaching machine is equipped with a full gantry system, the overall structure of the broach machine becomes significantly taller than a standard model. Its height required us to use platforms and stands in order to observe and film the machine from suitable angles. This was the first challenge we faced.

Preparation Before Filming: Understanding the Broaching Machine and the Workflow

Before the actual shooting began, we spent about half an hour studying the entire line, including the broaching machine itself, the loading and unloading sequence, the movements of the gantry robot, and the roles of the various components. For the filming team, understanding the structure and function of every module was essential for writing accurate captions and narration afterwards.

With assistance from the technical staff, we confirmed the names and functions of all key units: the loading rack for holding raw parts, the grippers for picking and placing, the lifting mechanism for vertical transfer, the gantry robot with automatic exchange grippers, and the dual-station structure of the broaching machine, which forms the core of the machining operation. After clarifying the workflow, we decided to film strictly according to the machine’s real production rhythm, presenting both the automated process and the actual broaching of the internal star-shaped spline.

Full Automation Workflow: The Efficient Operation of the Broaching Machine

The automation system is the highlight of this automated broaching machine, and it quickly became the main focus of our filming.

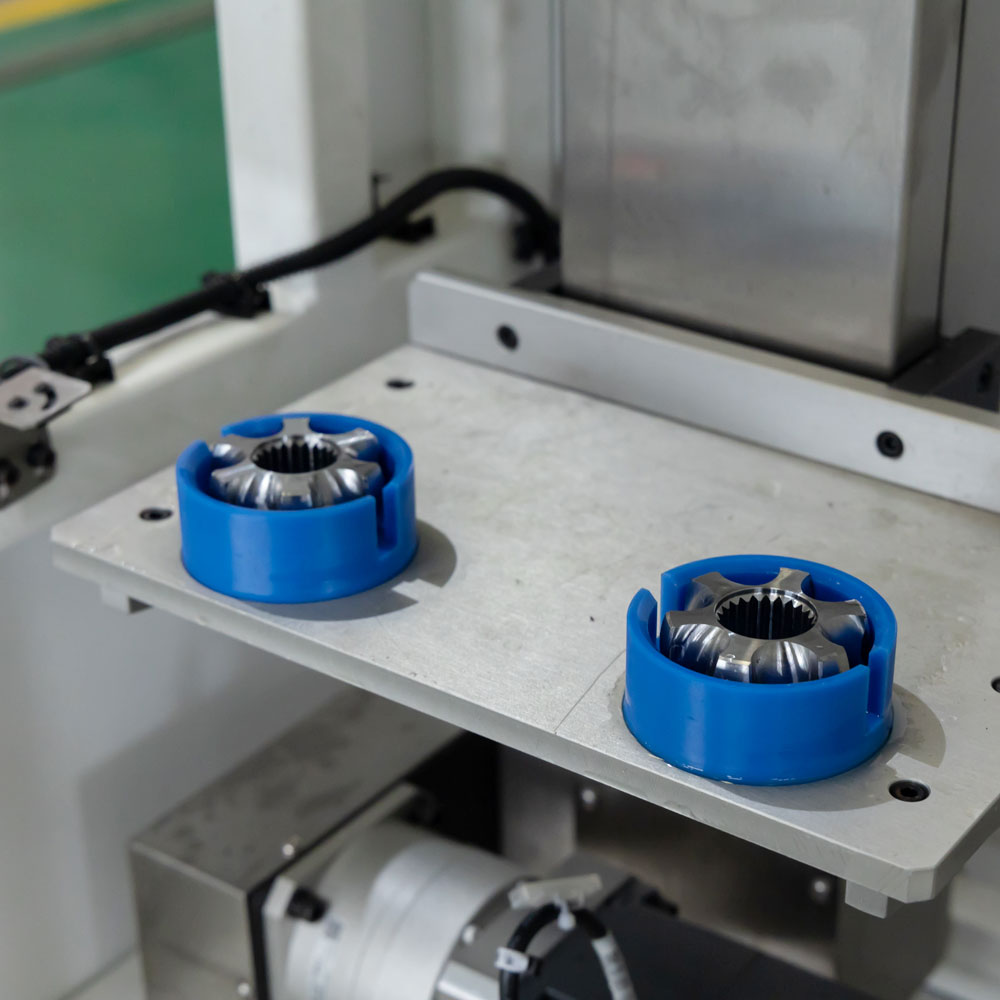

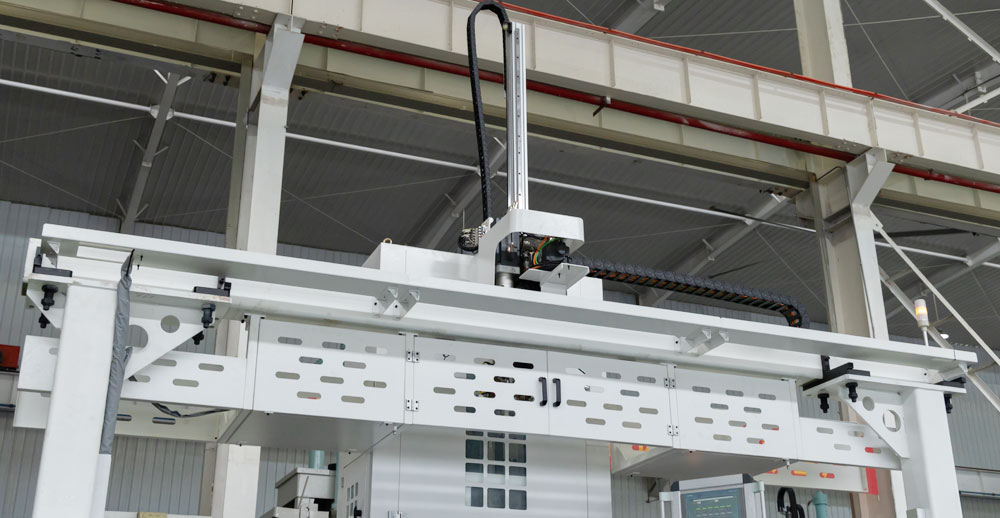

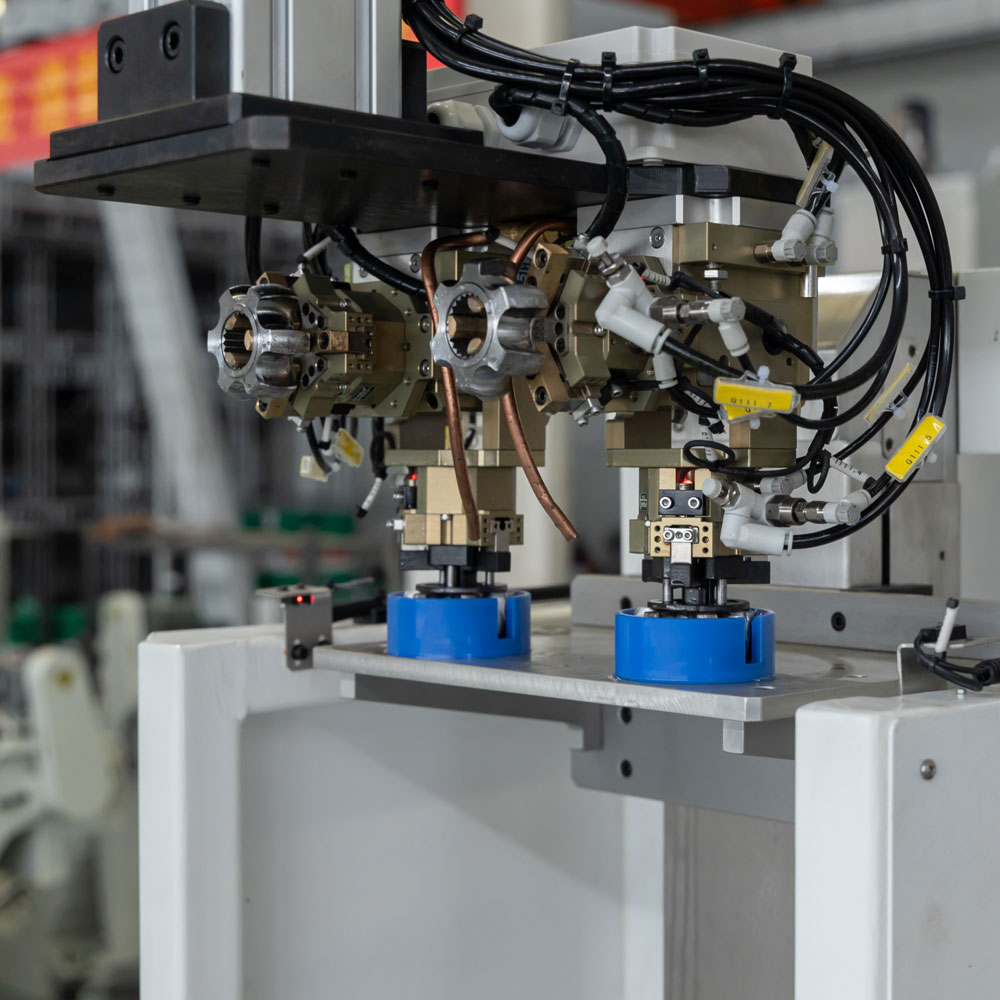

The sequence begins when the loading rack starts operating. A gripper takes a workpiece from the rack and places it onto the transfer table. Then, the lifting device raises the workpiece to the upper layer. The gantry robot's automatic exchange gripper enters next, taking away a finished piece while simultaneously placing a new unfinished workpiece onto the machine table.

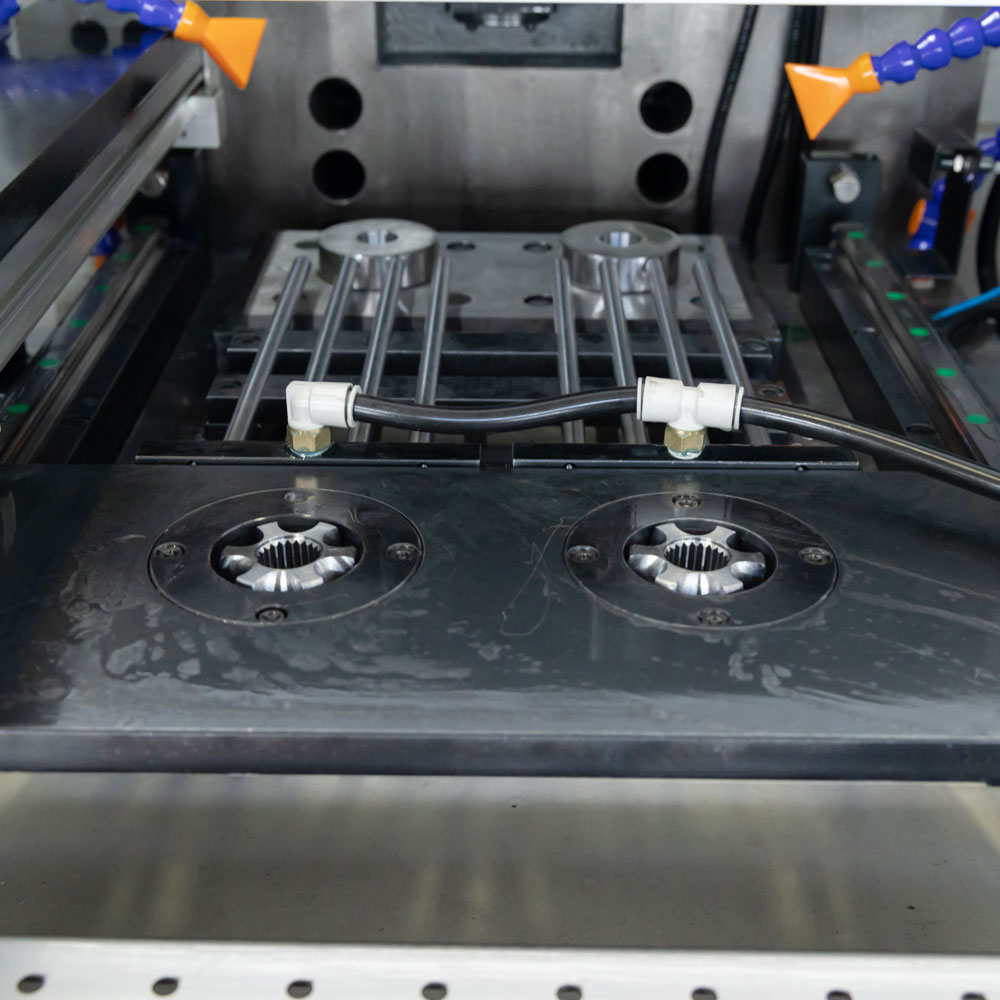

The pusher mechanism positions the part precisely into the broaching area, and then the broaching machine starts machining. This is a downward-pull type dual-station broaching machine, capable of processing two parts simultaneously, delivering extremely high throughput. The machining cycle for each part is only about 20 seconds, demonstrating both the efficiency and stability of this broach machine in an automated production environment.

After broaching is complete, the broach tool retracts upward. A pneumatic pusher ejects the finished part, and the gantry robot once again performs the exchange process--removing the finished piece and moving it to the unloading section.

Throughout this process, we clearly felt the advantages brought by an automated broaching machine. The dual-station structure further amplifies productivity, enabling continuous, uninterrupted machining.

Filming Difficulties and How We Overcame Them

Although the workflow of the broaching machine was impressive, filming proved far more challenging than expected.

First, the automated broaching machine is very tall and occupies a compact footprint. There was very limited space to place tripods or filming equipment. Second, the gantry is positioned very close to the broach machine, restricting shooting angles. Furthermore, because the machine operates under full automation, we could only observe from outside the safety zone during cutting, making many close-up shots difficult to capture clearly.

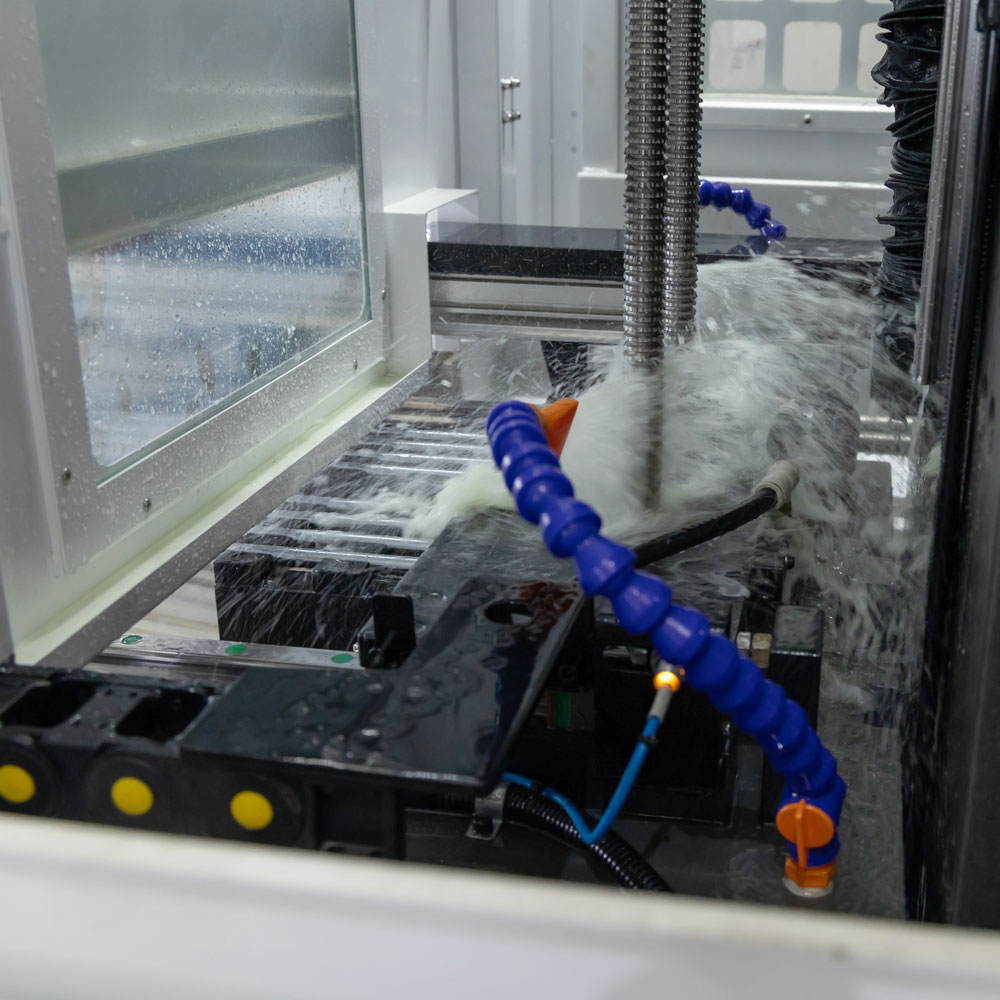

Especially during active broaching, it was nearly impossible to approach the broach machine closely, resulting in inevitable motion blur. After trying multiple shooting positions, we finally discovered a small inspection door on the opposite side of the broaching machine, which allowed us to film the complete machining sequence with much better clarity.

This experience reminds us once again: presenting the real working process of an automated broaching machine is not easy. Only by being physically present at the production site can we capture professional and convincing footage.

Applications of the Broaching Machine: High Precision for Spline and Form Cutting

After filming, we returned to take a closer look at the applications and advantages of the broaching machine.

A broaching machine is ideal for high-precision machining of internal splines, keyways, shaped holes, and the star-shaped inner races required by many industries. Compared with other processes, a broaching machine uses a multi-tooth cutting tool that removes material continuously in a single stroke, distributing the cutting load evenly. This allows the broach machine to achieve very stable dimensions and excellent surface quality.

For complex-shaped components like inner races, which require strict tolerance control, the broaching machine is undoubtedly the best processing method. In mass production, the combination of a dual-station broaching machine with an automated loading system enables long-period, unmanned operation, significantly reducing labor costs.

Whether in automotive parts, engineering machinery, or precision transmission systems, the broaching machine plays an irreplaceable role.

The Value of Automation for the Broaching Machine and for the Factory

Automation is not simply about adding a gantry next to a broaching machine. Its true value lies in elevating the overall efficiency of the entire factory.

Higher Productivity

Automated broaching machines operate continuously with minimal downtime, greatly improving daily output compared with manual loading.

Better Consistency

Automated grippers ensure stable positioning, reducing human error and giving the broaching machine superior consistency in part dimensions.

Lower Labor Cost

An automated broaching machine allows one operator to manage multiple systems, reducing staffing requirements.

Improved Safety

Broaching involves high cutting forces; automation minimizes the need for human interaction with the machine, making production safer.

A Step Toward Smart Manufacturing

Introducing an automated broaching machine raises the factory's automation level and positions it for future digital manufacturing upgrades.

Conclusion: The Broaching Machine Is More Than a Tool-It Is a Source of Competitiveness

Through this filming session, we gained a deeper understanding of the importance of the automated broaching machine in modern manufacturing. A broaching machine is not just a machining tool. It is the core of a high-efficiency production line, a key contributor to output growth, and a vital guarantee of consistent quality.

From loading to unloading, from the gantry robot to the dual-station broaching machine, from part transfer to precise broaching-every step demonstrates the industry's pursuit of efficiency and precision. And the automated broaching machine is the best embodiment of that pursuit.

Although the filming process was full of challenges, it reinforced one belief: only by stepping into the real production environment can we truly appreciate the value that a broaching machine brings when paired with automation. As more automated broaching machines enter production lines in the future, factories will continue upgrading toward higher efficiency and smarter manufacturing systems.
