Product Details

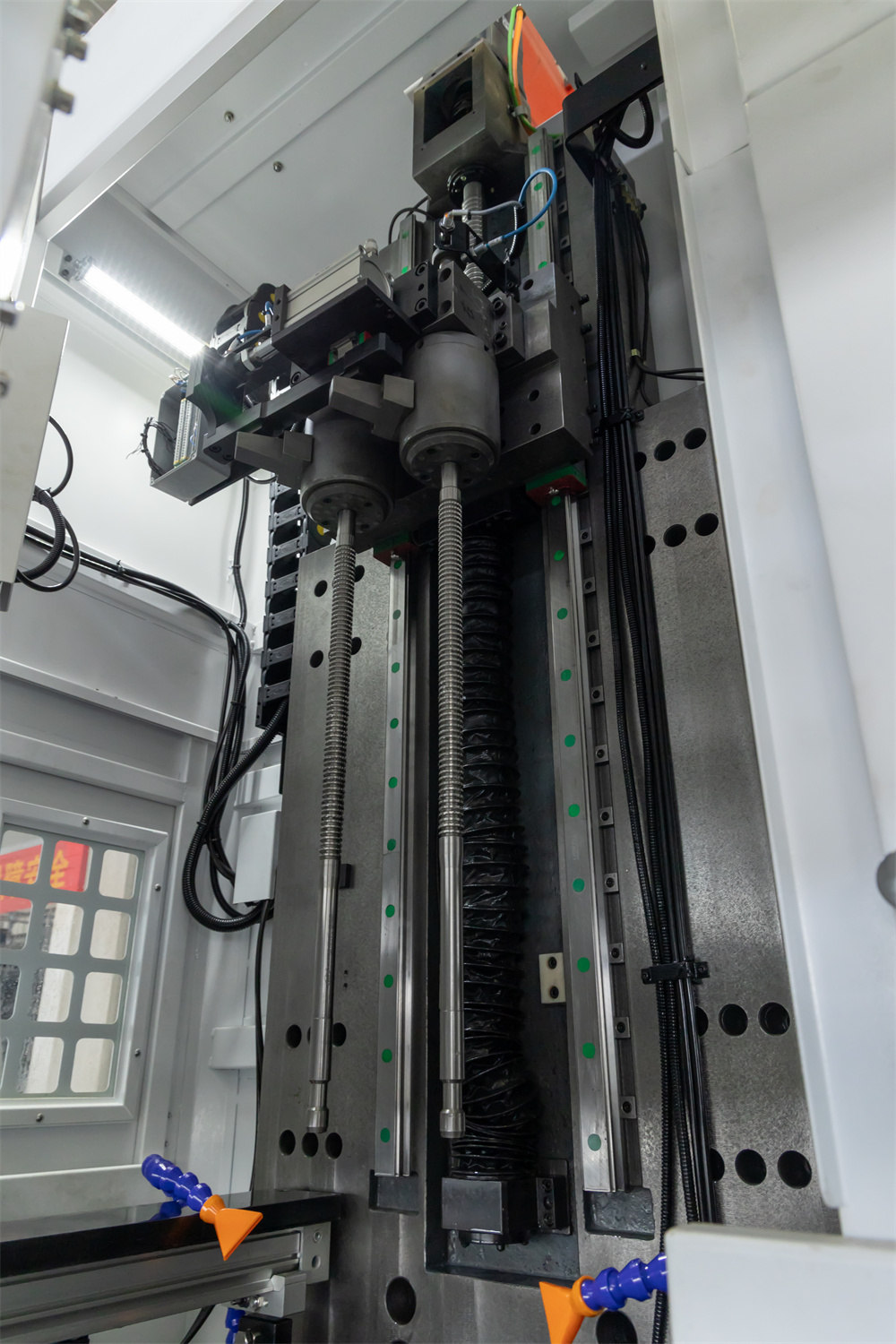

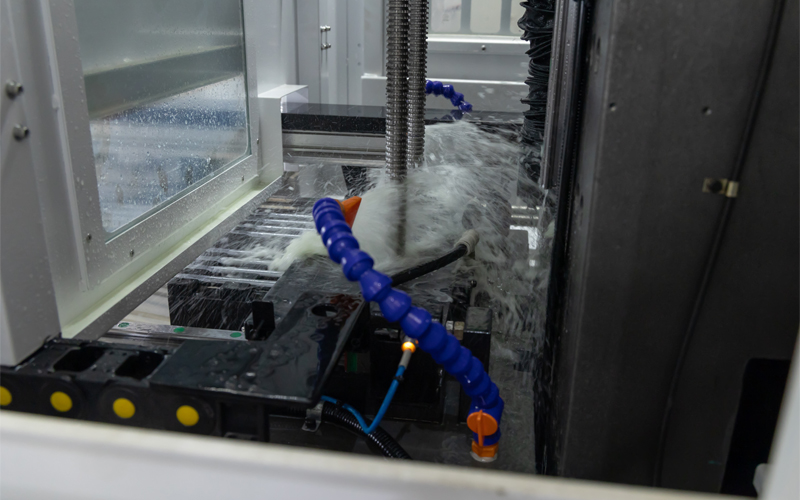

The pull-down type internal broaching machine, where the broach moves downward while the work piece remains stationary, achieves broaching. The machine tool uses ball screw drive, ensuring smooth operation, convenient handling, and high efficiency, and can be integrated with automatic loading/unloading robots for continuous production. It supports stepless speed adjustment and allows setting and adjustment of speed change parameters and broach displacement change parameters. The machine tool offers two cycle modes: automatic cycle and semi-automatic cycle. All actions can be performed individually or adjusted via point operation.

It is designed for internal spline cutting, offering high productivity and suitability for batch production and mass production.

Product Advantages

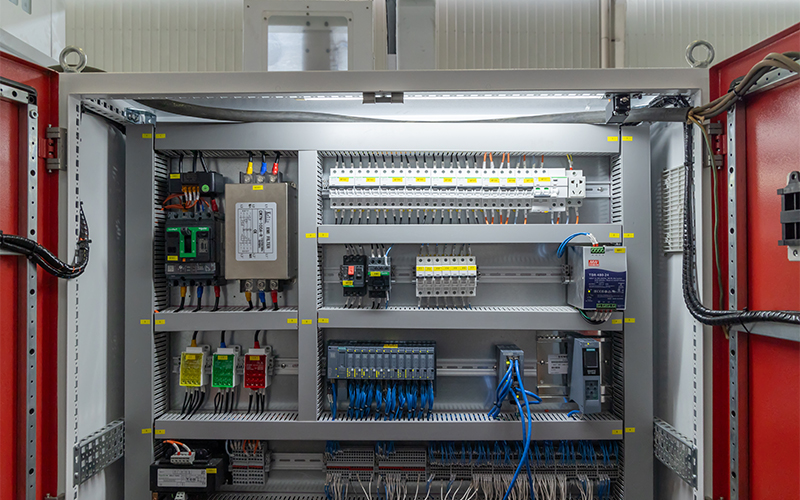

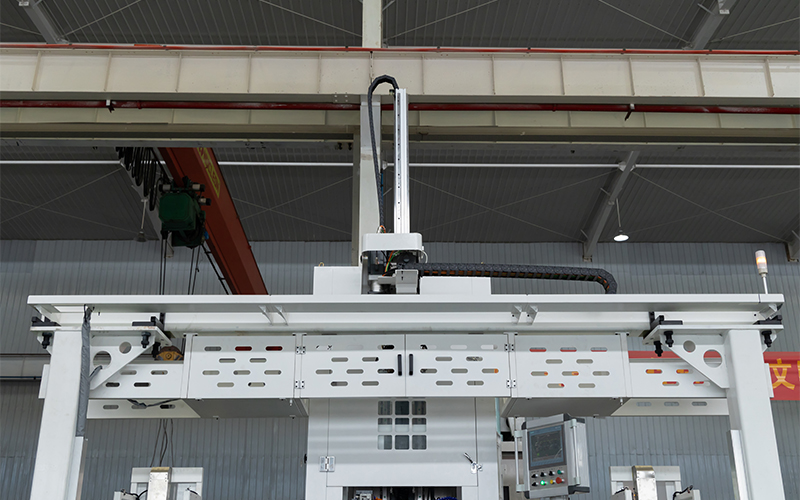

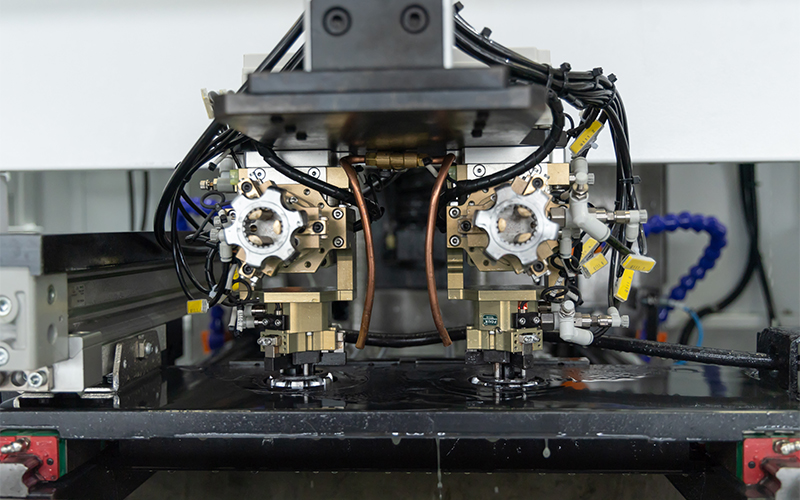

With automatic loading and unloading devices, no scaffolding or excavation is required. The vertical design minimizes floor space requirements, allowing direct operation on the ground while maintaining high broaching precision. The machine's electrical system is housed in a separate electrical cabinet, controlled by a master control panel for convenient operation.

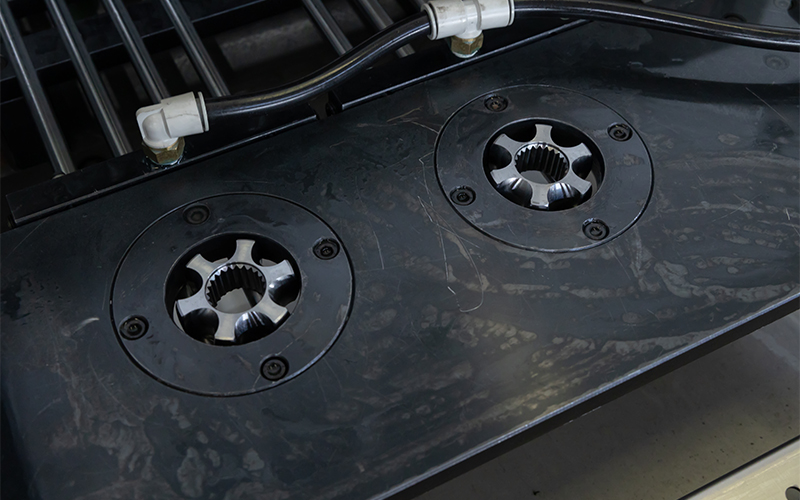

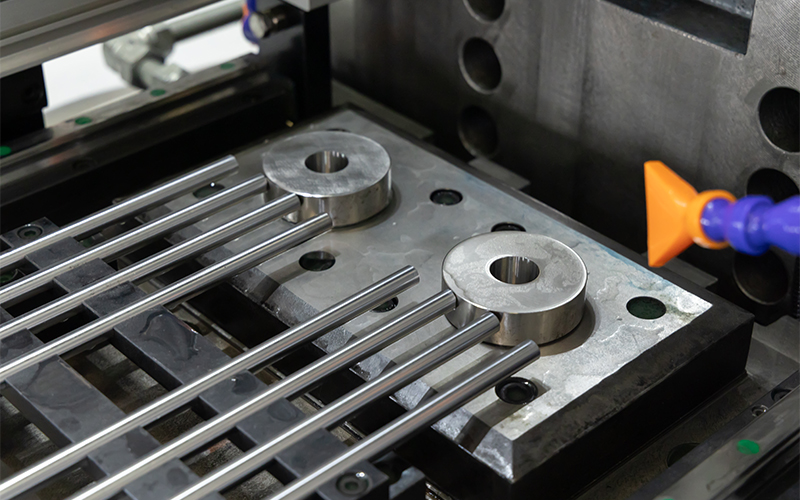

Workpiece

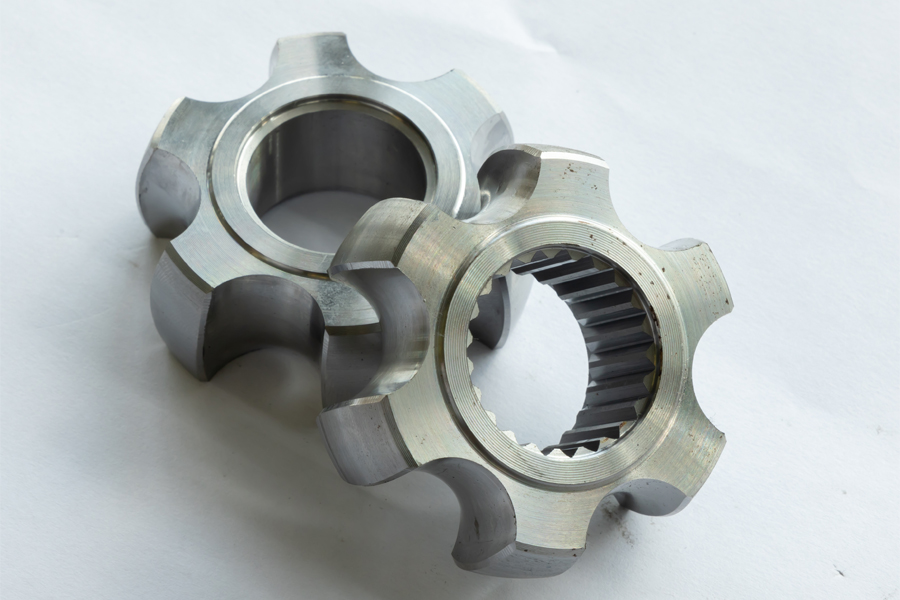

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

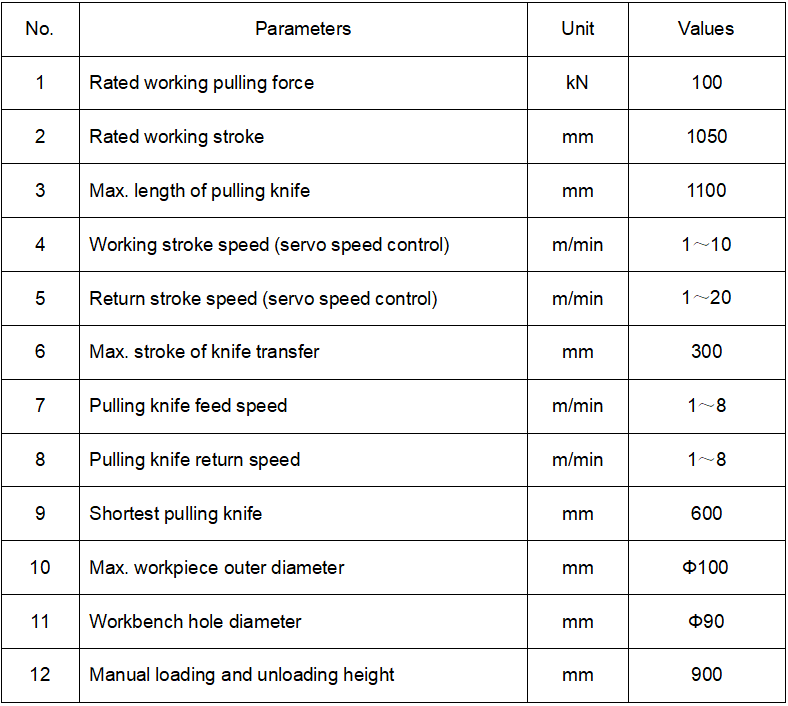

Technical Data

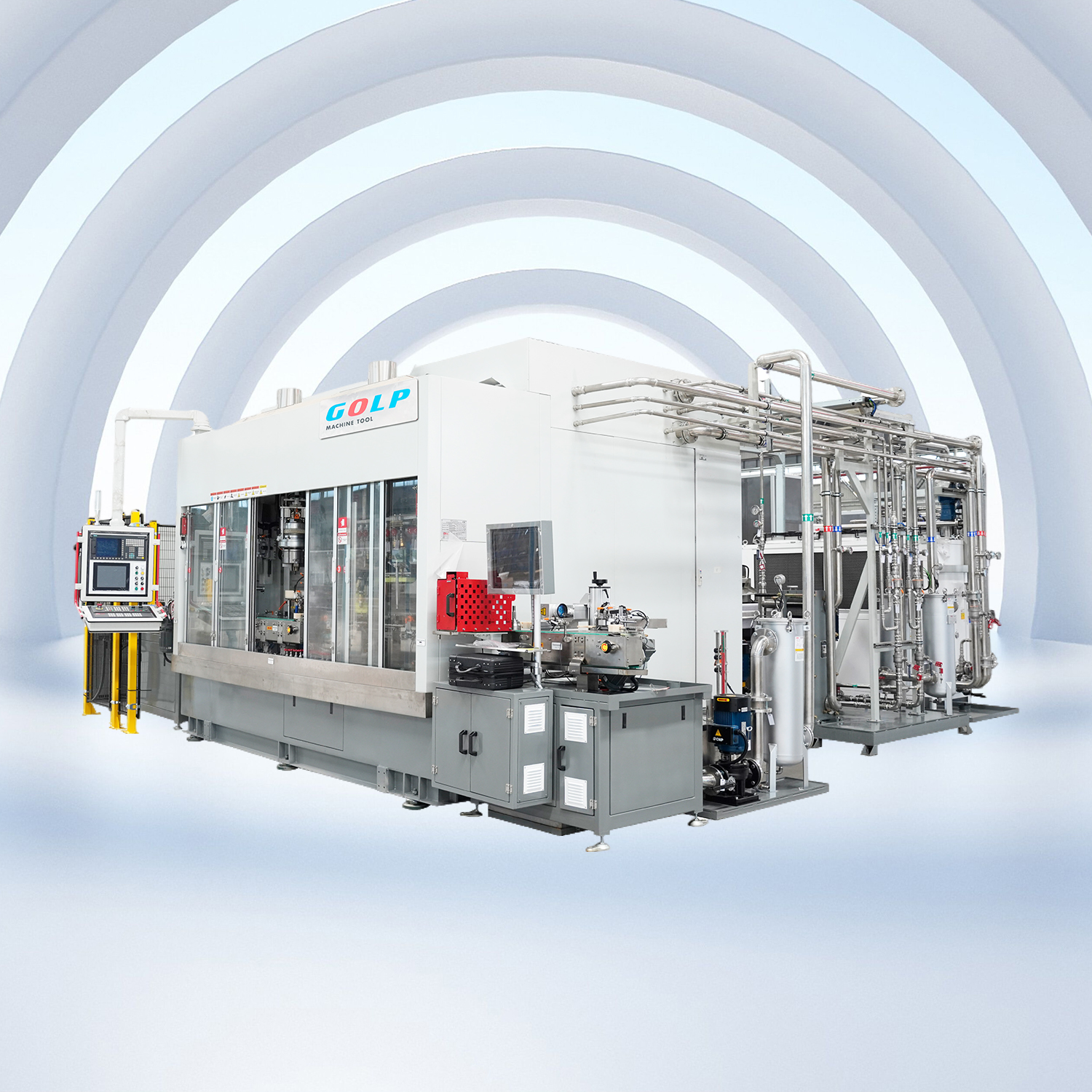

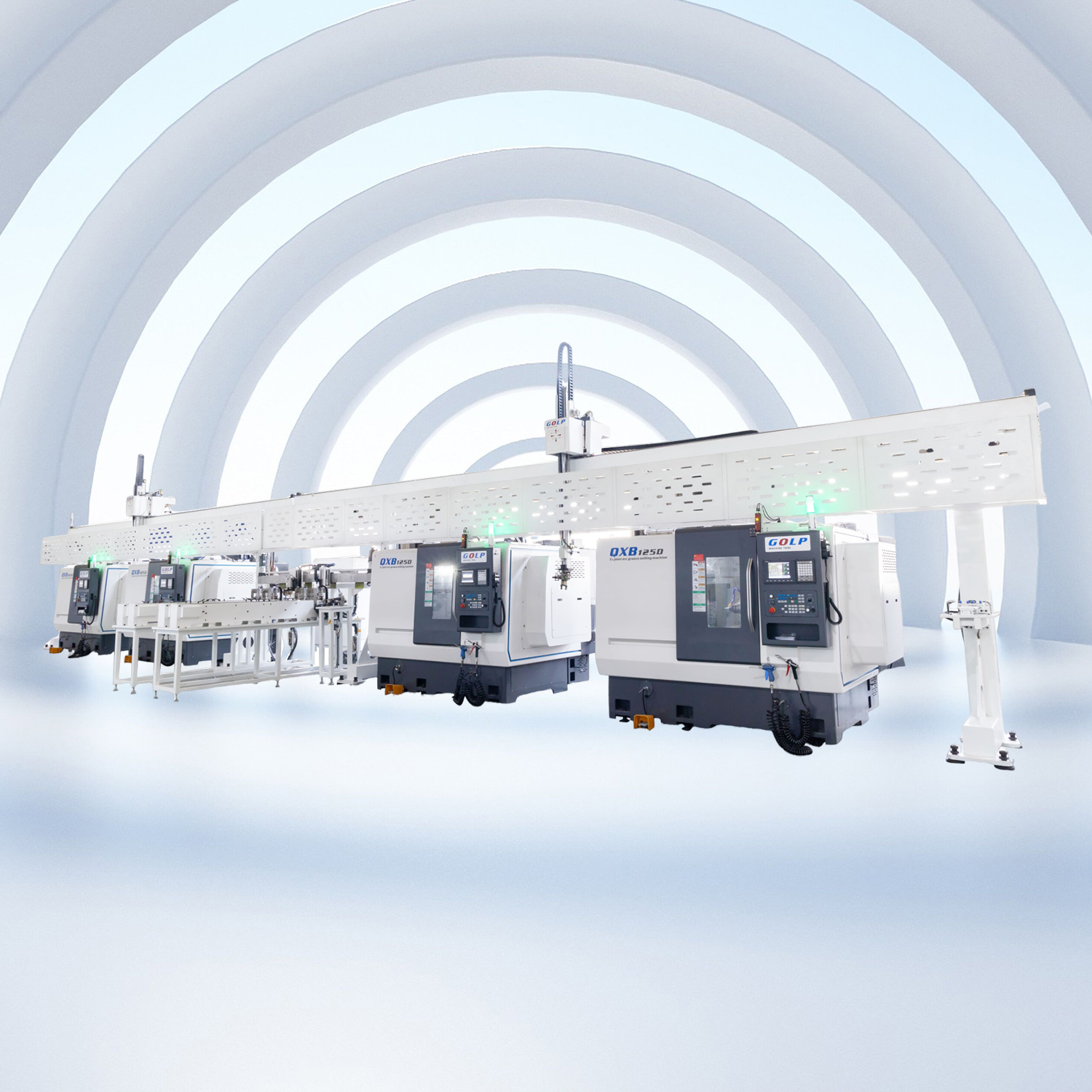

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
