Product Details

High precision automated cnc milling machine for inner race, designed for soft milling of 6 ball tracks using 2-edge cutters. Supports inner rise Ø110mm and outer clamp Ø78mm, with a maximum workpiece length of 60mm. Handles channel diameters Ø25–Ø70mm and rod diameters up to Ø40mm. Efficient cycle time of 105 seconds per workpiece (excluding loading/unloading), ideal for automated production lines requiring consistent accuracy and high efficiency.

Product Advantages

1. Versatile Clamping

Supports inner rise Ø110mm and outer clamp Ø78mm, with a maximum workpiece length of 60mm, suitable for various cv joint inner race workpieces.

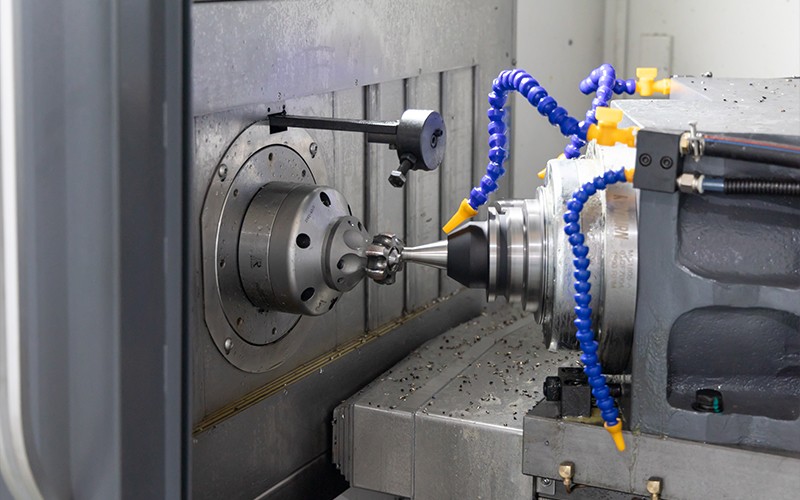

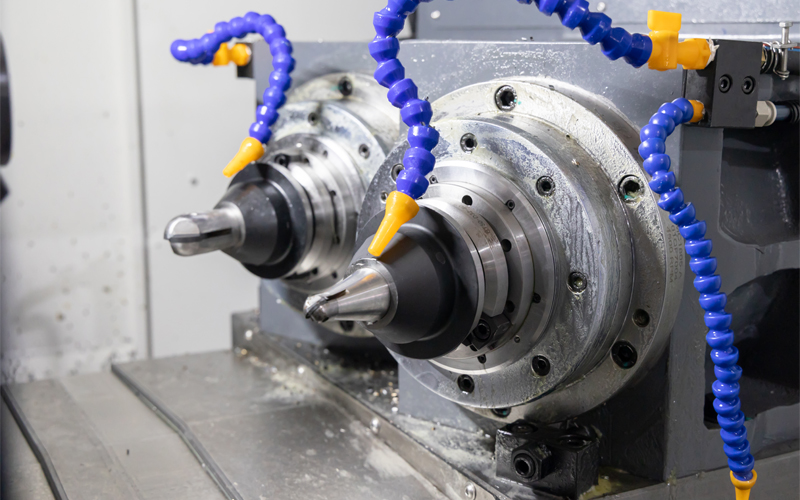

2. Efficient Soft Milling

Uses 2 edge cutters to mill 6 ball tracks per cycle, with an approximate cycle time of 105 seconds (excluding loading/unloading), ensuring consistent precision and high productivity.

3.Flexible Workpiece Range

Capable of milling groove diameters from Ø25 to Ø70mm and rod diameters up to Ø40mm, meeting the demands of batch production for different inner race.

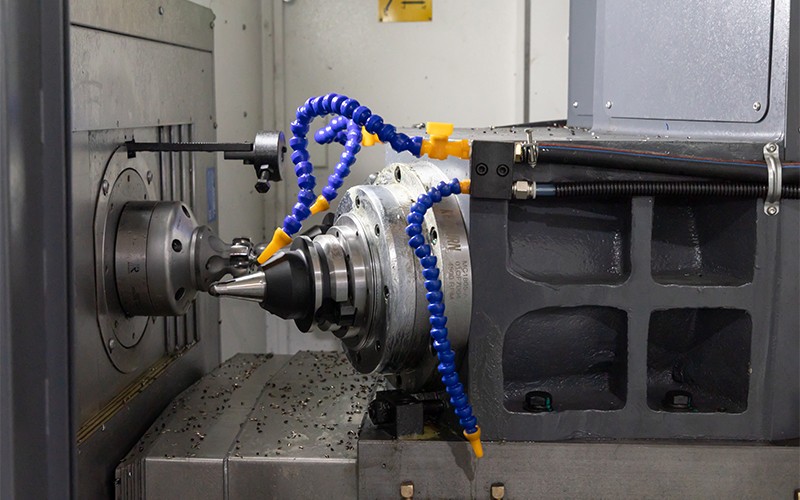

4.Arc Groove Special Milling Cutter

designed for precise and efficient machining of curved grooves, ensuring smooth surface finish and extended tool life.

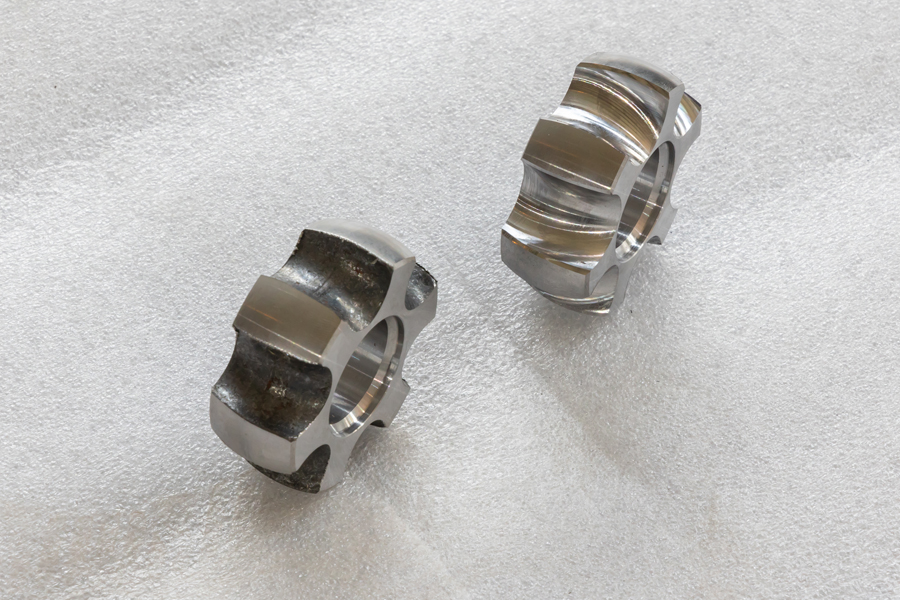

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

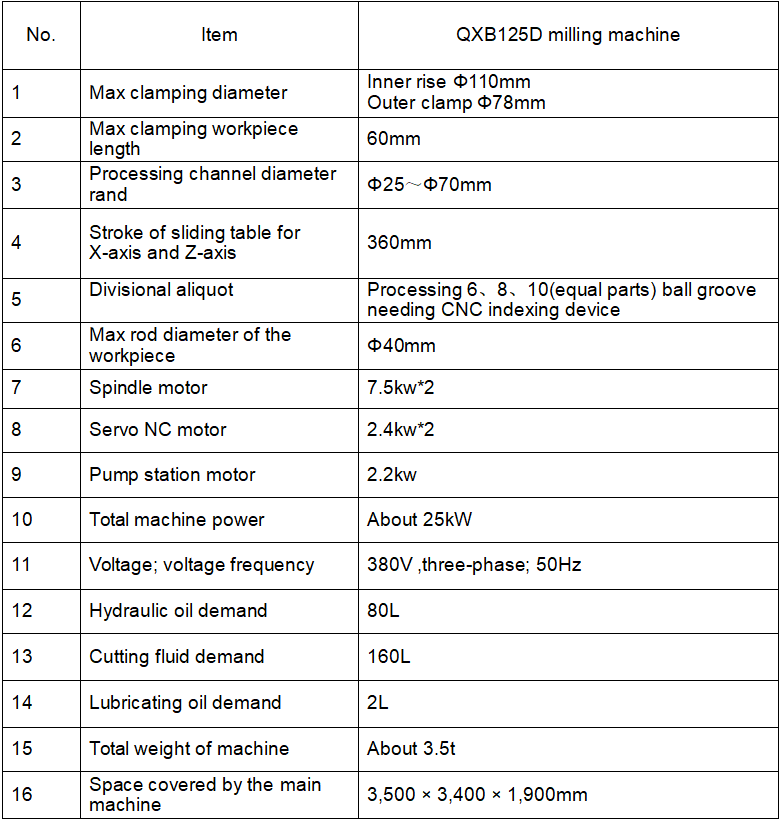

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
