Product Details

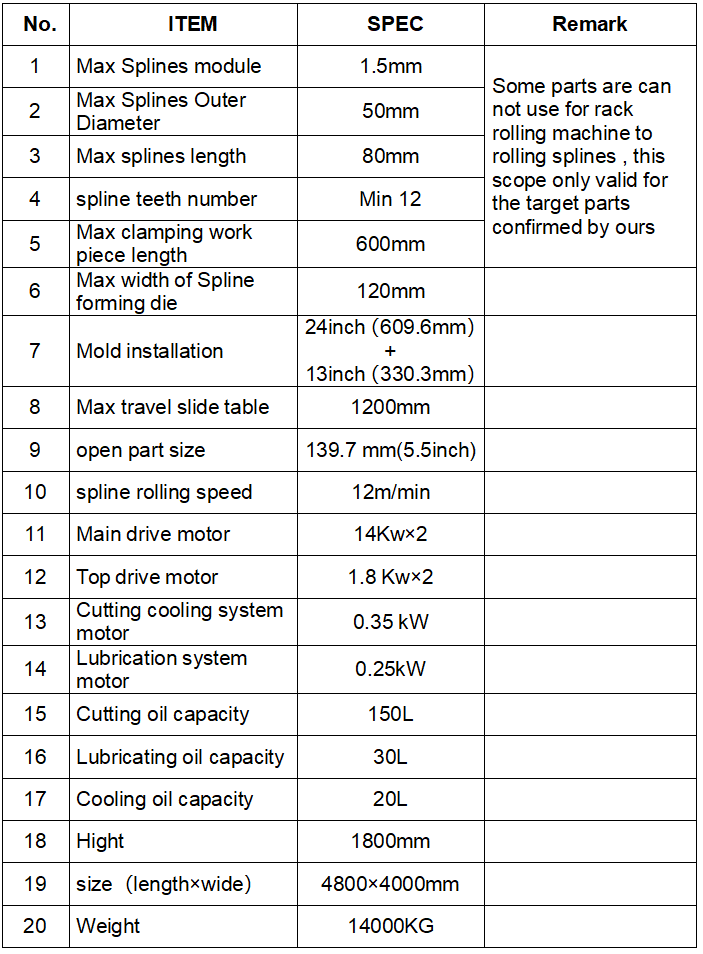

This automated spline and thread rolling machine is specifically designed for the integrated processing of splines and threads on outer races. It incorporates a highly efficient automated system, enabling seamless operation from workpiece clamping to the completion of processing. The machine features controllable processing precision, with a maximum spline module of 1.5mm, a maximum spline outer diameter of 50mm, and a maximum spline length of 80mm, while also supporting the processing of splines with 12 teeth. Additionally, it ensures stable thread rolling performance and can simultaneously complete the processing of key structures of outer races. In terms of adaptability, it has a maximum workpiece clamping length of 600mm, a maximum die installation width of 120mm, and a maximum saddle stroke of 1200mm, allowing it to accommodate outer races of various specifications. It is suitable for mass production in the fields of automotive transmission and construction machinery, balancing processing efficiency and precision.

Product Advantages

Automated Efficiency for Cost Reduction & Output Improvement: Equipped with an automated system to reduce manual intervention. The maximum clamping length of 600mm plus maximum saddle stroke of 1200mm adapts to continuous processing of outer races in various specifications, shortening cycles, boosting efficiency, cutting costs, and reducing human errors.

1.Loading Conveyor

 Ensures continuous and efficient feeding of outer race blanks, reducing manual handling and enabling smooth workflow.

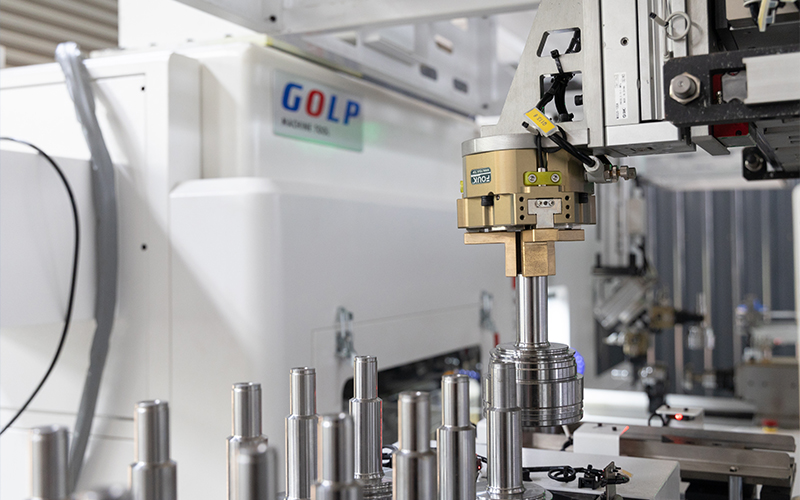

2. Outer Clamping Jaw

Provides stable and precise clamping of the outer race during rolling, preventing slippage and ensuring machining accuracy.

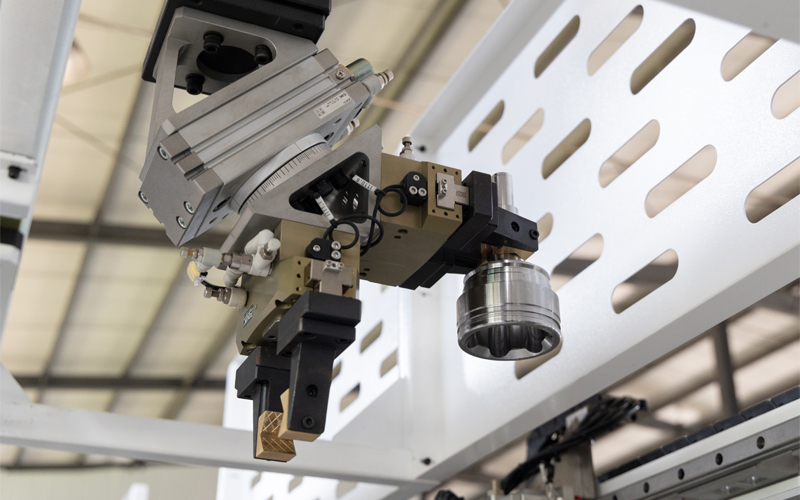

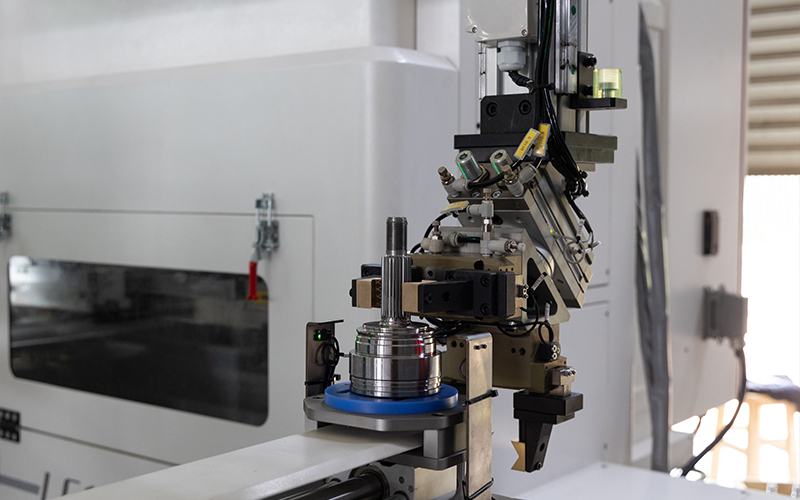

3. Automatic Loading and Unloading

Integrated automation solution for feeding and discharging workpieces, minimizing downtime and labor costs.

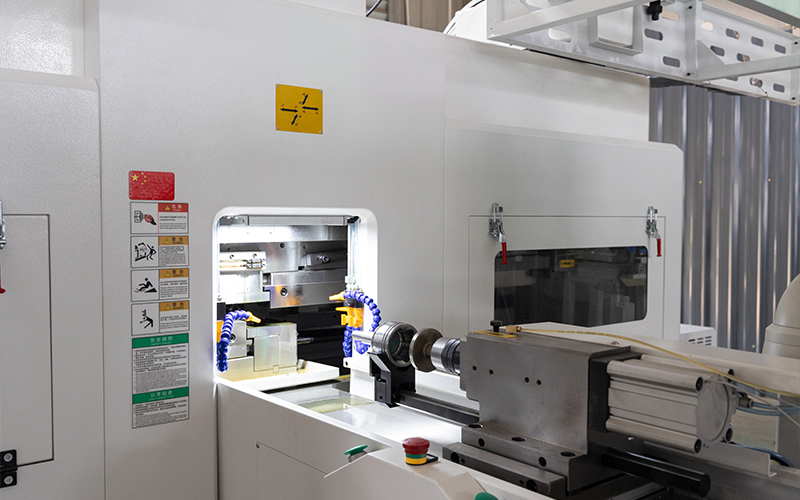

4. Pneumatic Fixtures

Offers reliable clamping with fast response and easy operation, improving efficiency in spline and thread rolling.

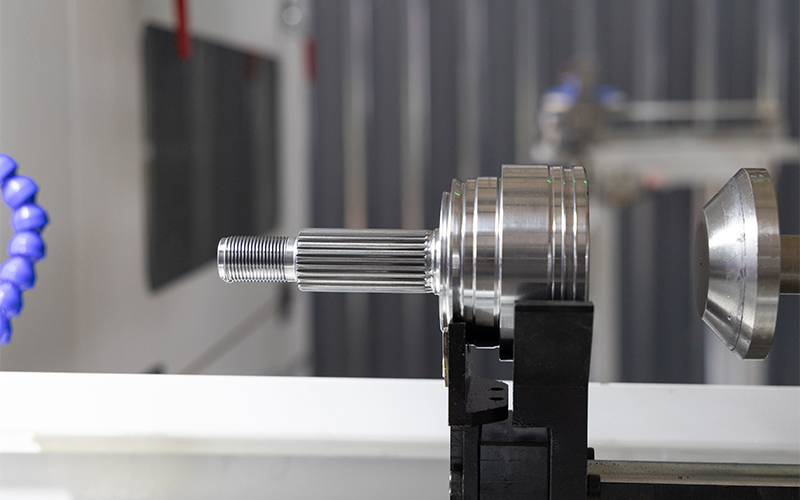

5. Customized Spline and Threading Tools

Specially designed tools tailored to customer specifications, ensuring accurate forming and long tool life.

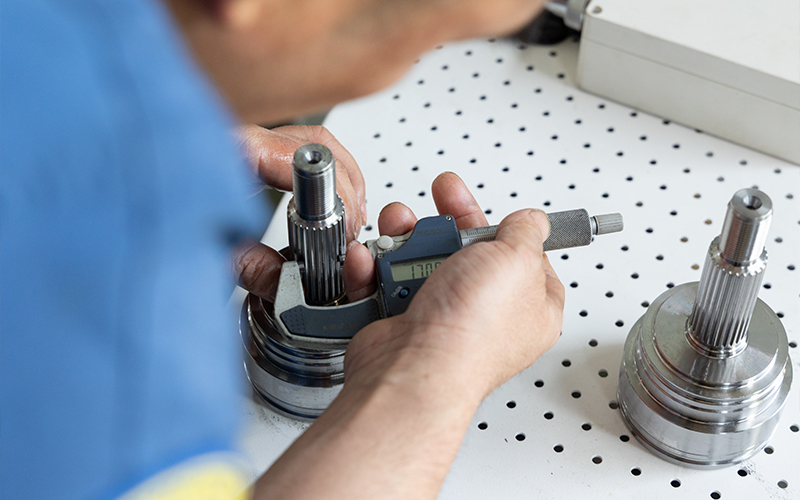

6. Automatic Checking Table

Enables in-line inspection of splines and threads, ensuring quality consistency and reducing defective rates.

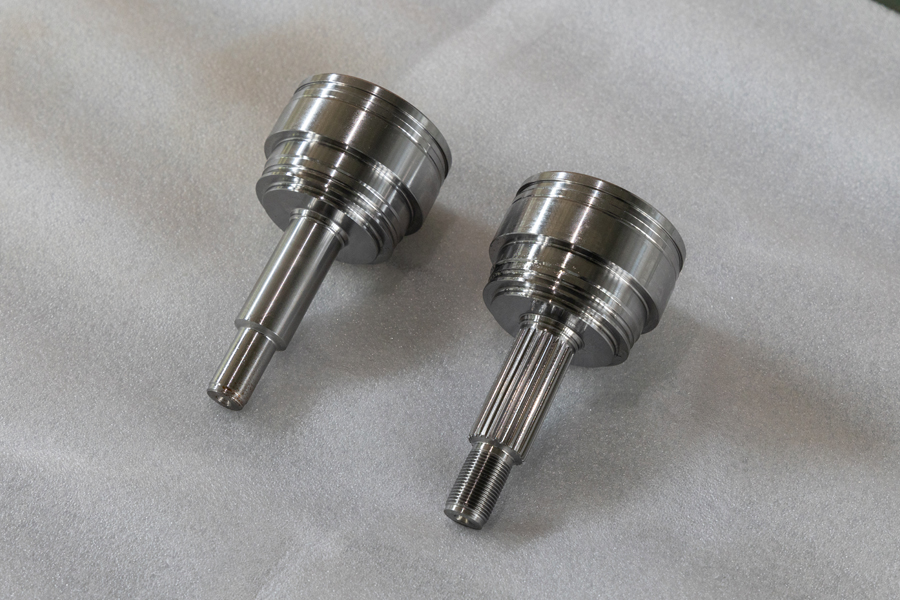

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More
