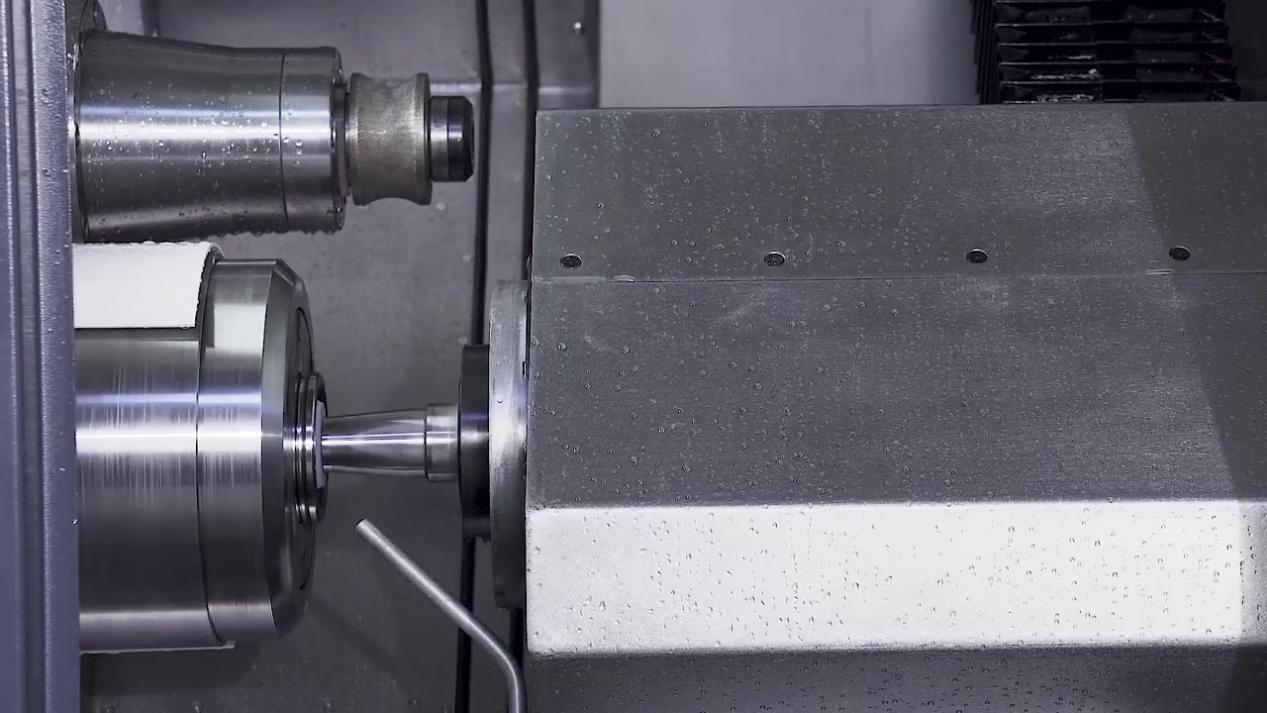

CV Joint Internal Grinding Machine For Outer Race Inner Bore
max work piece length: 260mm
inner hole diameter scope: 45-100mm
max work piece handle diameter:40mm
grinding wheel diameter scope: 30-50mm
weight: 2800kg
length * width: 2000*1600
Product Detail

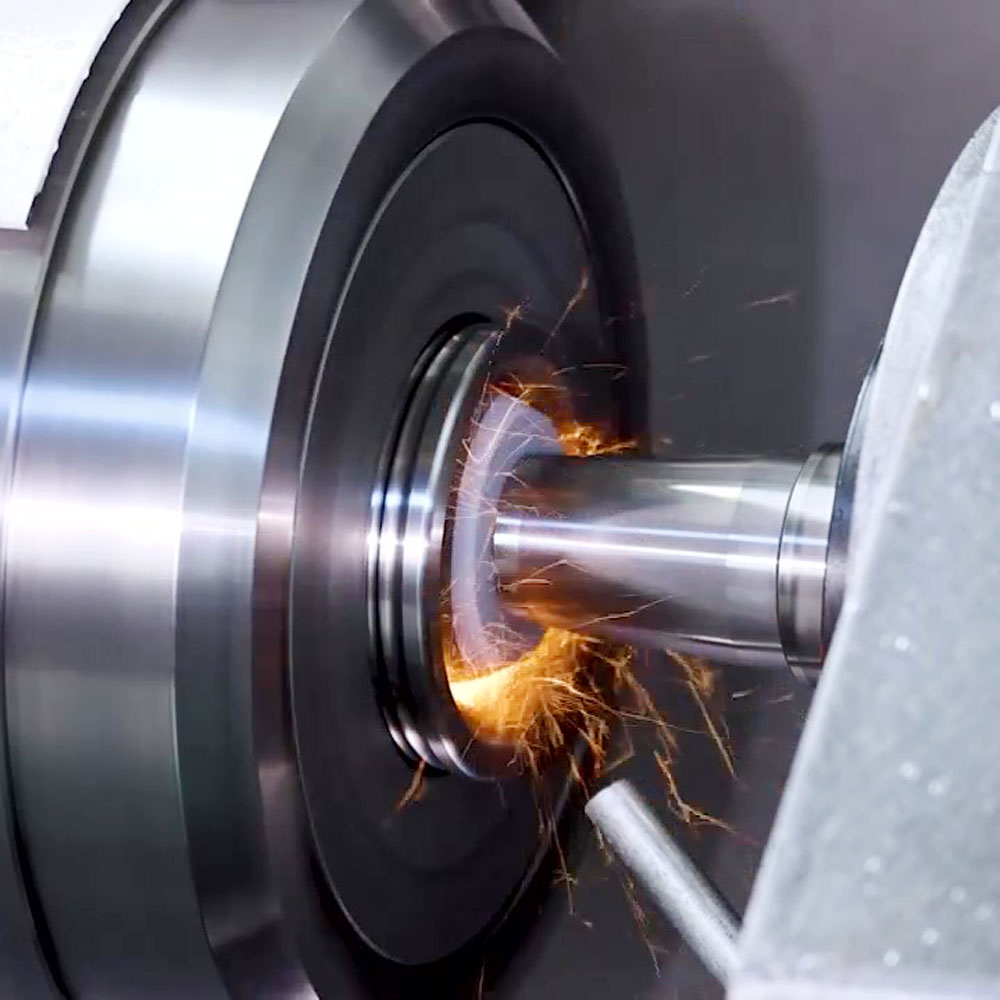

The CV Joint Grinding Machine (Outer Race Internal Grinder) is an intelligent grinding solution engineered specifically for machining the core component of automotive constant velocity joints: the outer race. Integrating robust construction, exceptional precision, and automation, it delivers efficient and reliable high precision grinding of the complex internal profile of the outer race.
it easily connects with robotic systems to form automated production lines, enabling 24/7 continuous operation. This machine is the optimal choice for manufacturers seeking to boost capacity and ensure consistent, high quality output.
Product Advantages
Robust and Durable, high Precision
Featuring a 45° high rigidity inclined bed and high speed linear guides, the machine offers excellent vibration resistance, ensuring long-term stability and consistent machining accuracy even under heavy duty, continuous operation.
Dedicated Fixture, Secure Clamping

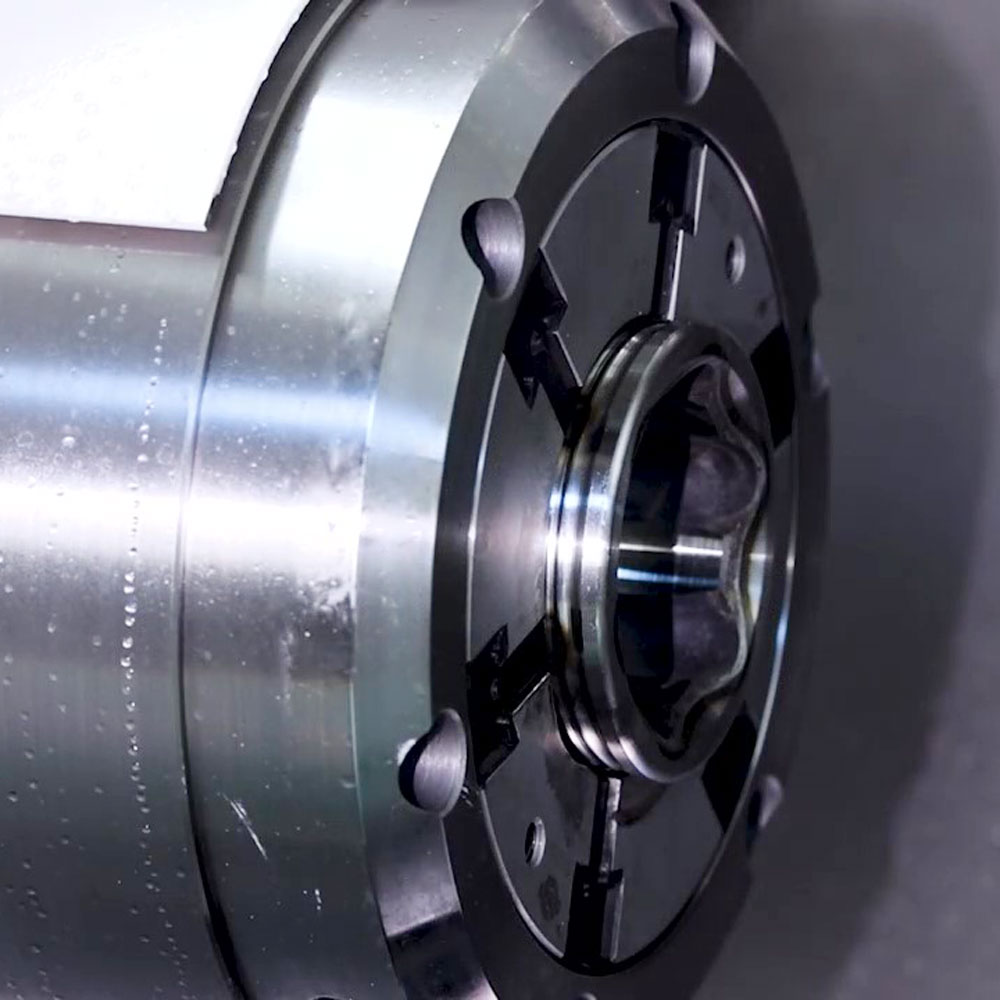

Equipped with specialized custom fixtures that provide firm and reliable clamping, ensuring precise positioning of every workpiece during high-speed grinding for consistently high quality results.
Powerful Spindle, Efficient and Stable

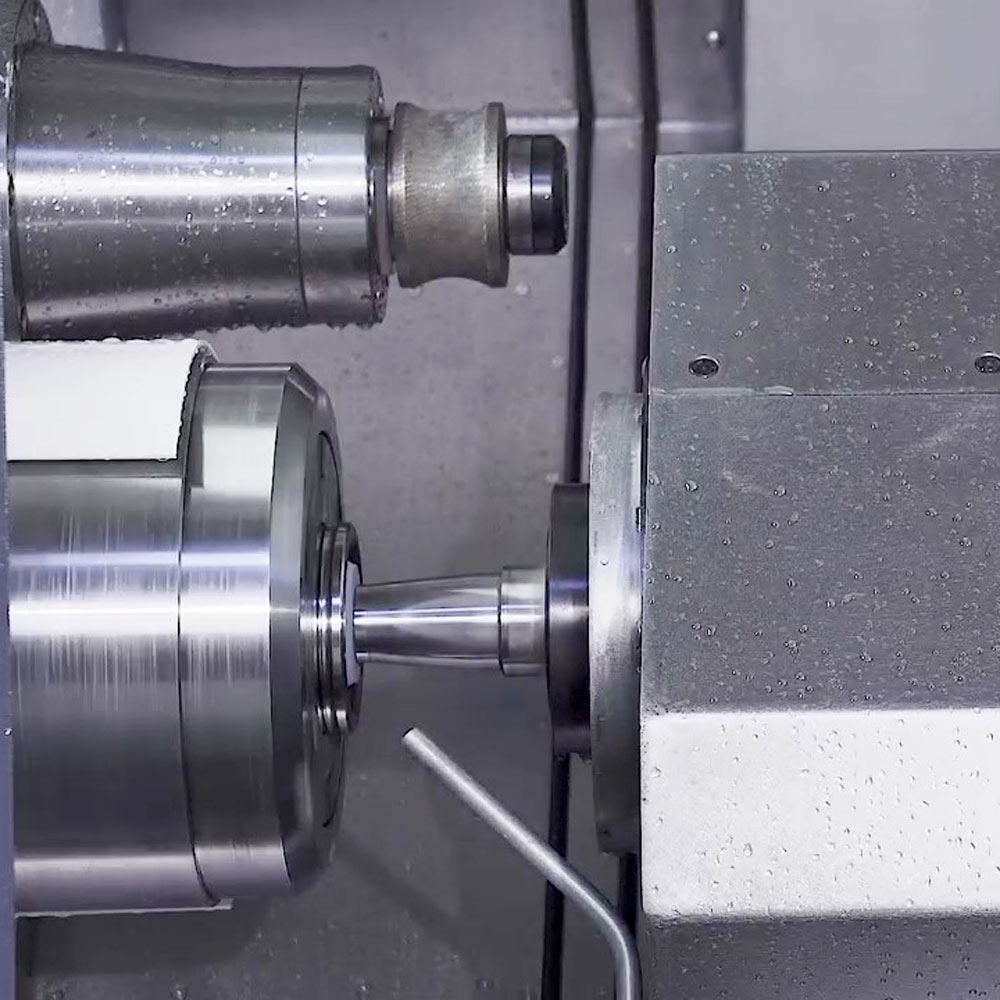

Powered by a high rigidity motorized spindle with robust torque, superior vibration damping, and extended service life. Capable of handling high load continuous operation to guarantee efficient grinding and exceptional surface finish.
Intelligent Dressing, Flexible Profiling

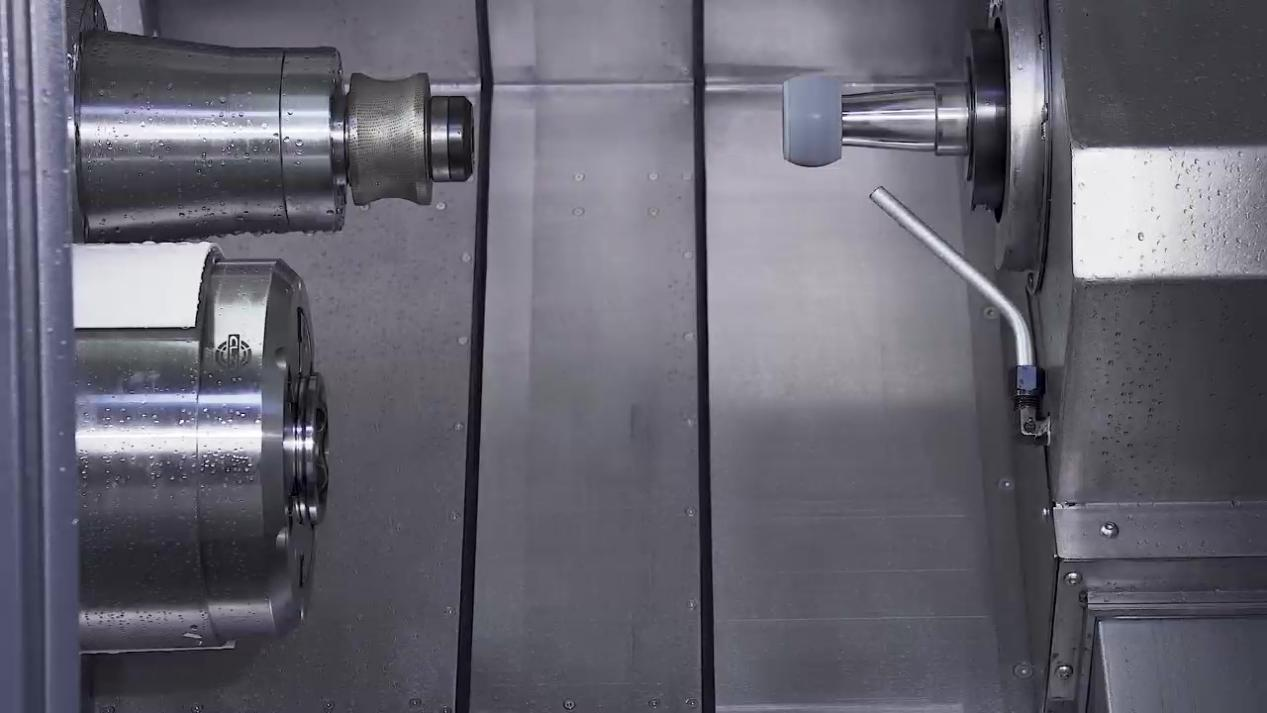

Incorporates a servomotor-driven diamond roll dresser, enabling intelligent and precise wheel dressing to easily accommodate the machining of various complex contours and profiles.
Automation Ready, Easy Integration
Designed for open connectivity, it integrates with manipulator to quickly establish automated production lines, significantly reducing manual intervention while enhancing production efficiency and consistency.
Workpiece

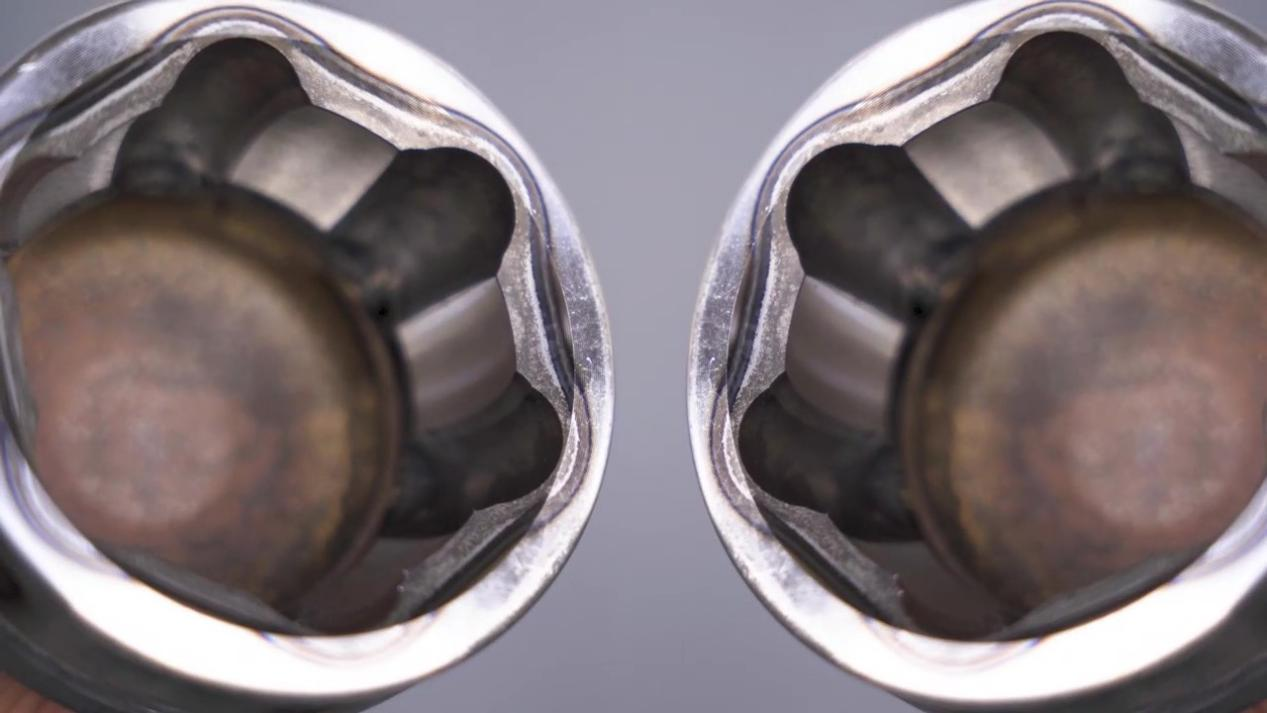

 | CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. |
Technical Data
max clamping diameter | 115mm |
max work piece length | 260mm |
inner hole diameter scope | 45-100mm |
max work piece handle diameter | 40mm |
grinding wheel diameter scope | 30-50mm |
weight | 2800kg |
length * width | 2000*1600 |
Recommended Machines
Contact Us for a Quotation
We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:
Email: info@golpmachinery.com
Thank you for your interest and support!
FAQ
Q: What are the Payment Terms?
A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.
Q: What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.
Q: When is the delivery time?
A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.
Q: What is your minimum order quantity and warranty?
A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.
Q: How are the machines packaged?
A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.
Q: How can I choose the most suitable machine?
A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
