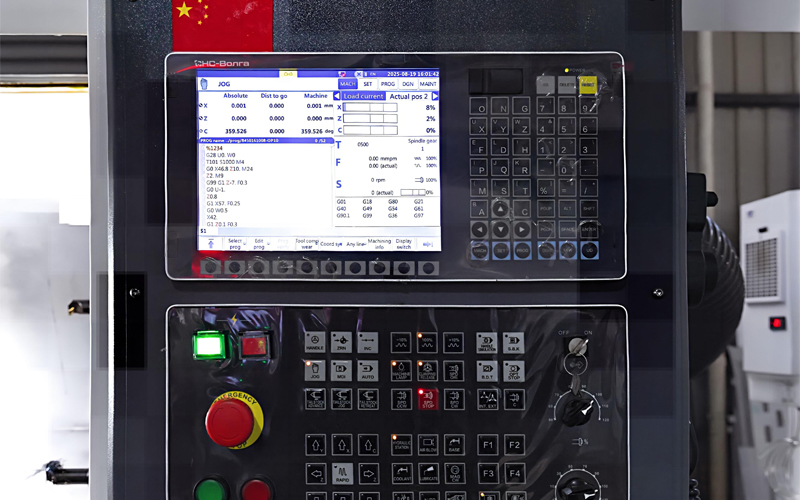

High Precision ID Turning Machine for Engine Part Cages
Max turning diameter : Φ300 mm
Max turning length : 500 mm
Spindle Max.speed: 3000rpm
Roughness: Ra1.6
Product Details
Engineered specifically for the engine parts manufacturing industry, this high precision CNC Lathe is the ultimate solution for turning the Inner Surface (ID) and End Faces of Cages.With a robust design featuring a Max Bed Rotary Diameter of Φ400mm and a Max Turning Diameter of Φ300mm, this machine handles medium-to-large retainers with ease. The extended 500mm turning length offers versatility for various work piece specifications. Powered by a 3000 rpm high speed spindle and equipped with an 8 station turret, this automated turning center ensures superior surface finish and rapid cycle times. It is the good choice for manufacturers looking to upgrade their production efficiency for cages.
Product Advantages
Versatile Machining Capacity:
Features a Φ400mm swing over bed and a Φ300mm max turning diameter, providing ample space for machining a wide range of cage sizes.
High Speed Precision:
The spindle reaches speeds up to 3000rpm, delivering cutting performance and surface roughness (Ra) on cage outer diameters.
Efficient 8 Station Turret:
Equipped with an 8 tool turret, allowing for complex machining processes (roughing, finishing, facing, chamfering) in a single setup without manual tool changes.
Automated for Mass Production:
Designed for automated turning, this machine streamlines the production of cage IDs and end faces, significantly reducing labor costs and human error.
Specialized for Cages:
Optimized for the specific requirements of window cages, ensuring high concentricity and minimizing deformation during the turning process.

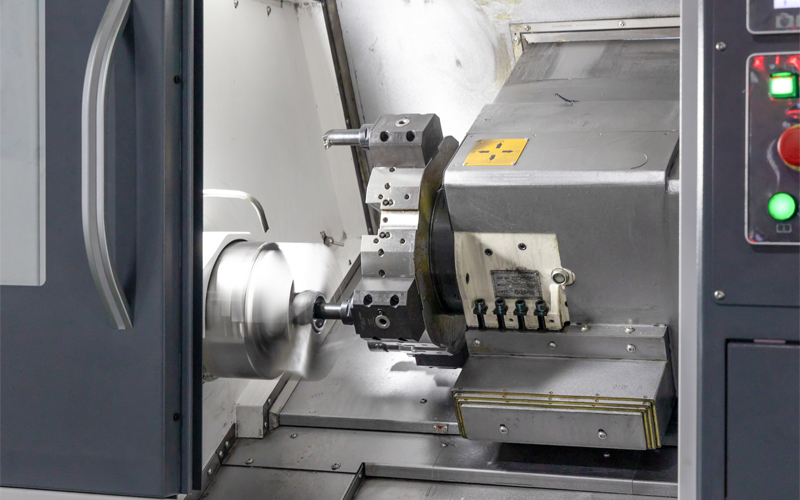

.jpg "loading-unloading-system")

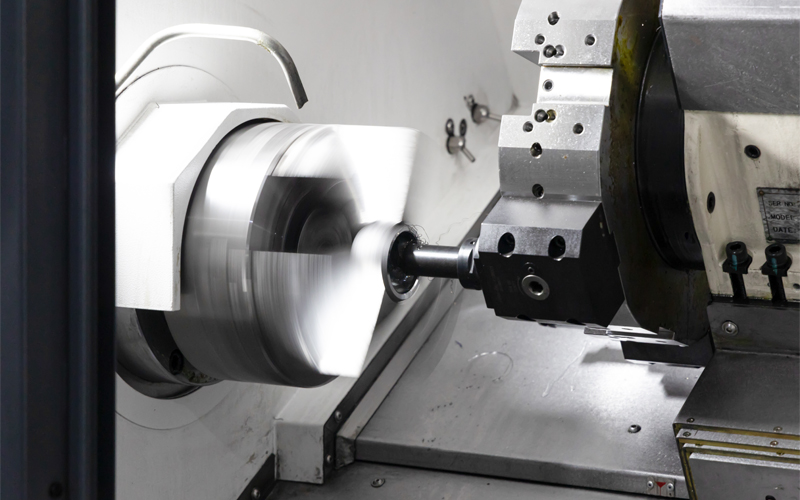

.jpg "loading-conveyor")

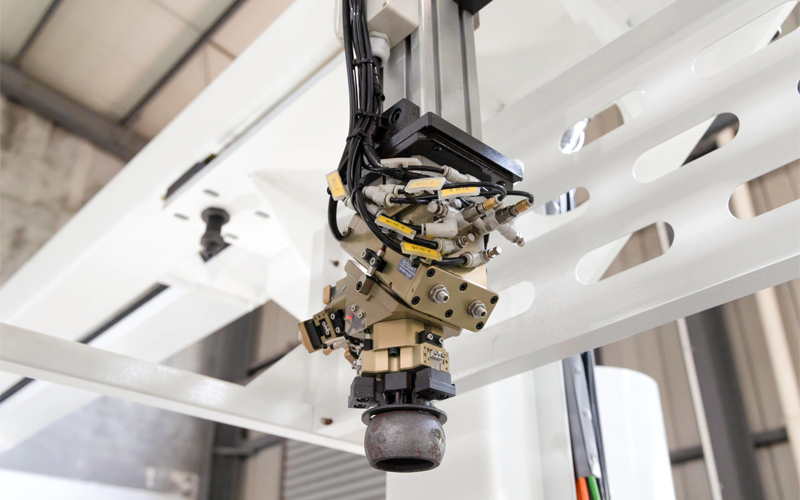

.jpg "milling-groove")

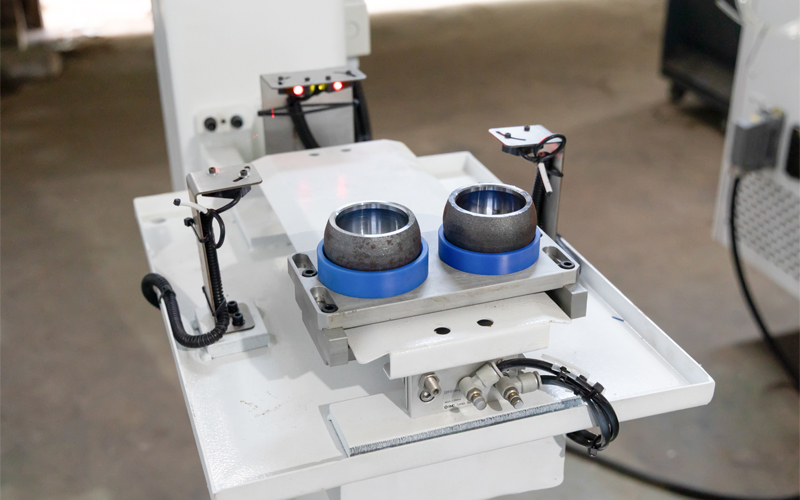

.jpg "checking-table")

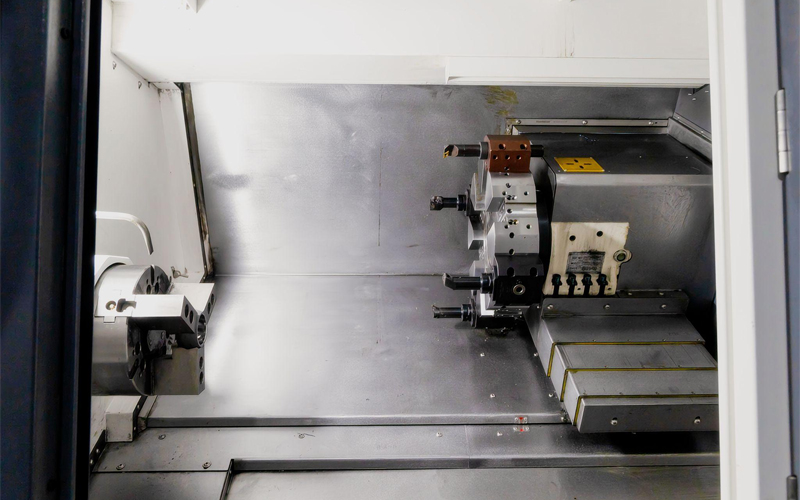

.jpg "precision-positioning-function")
Workpiece

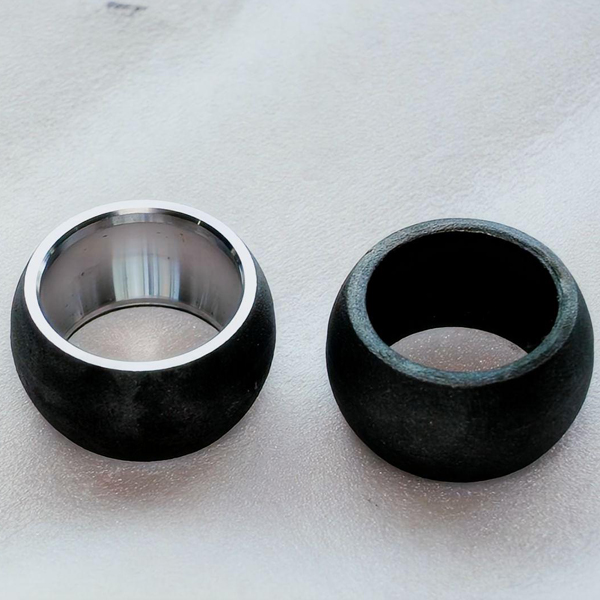

 | CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. |
Technical Data
No. | Item | Size | |
1 | processing scope | Max bed rotary diameter | Φ400 mm |
Max turning diameter | Φ300 mm | ||
Max turning length | 500 mm | ||
2 | spindle | spindle head type | A2-6 |
spindle bore tap | MT 6 | ||
spindle bore diameter | Φ55 mm | ||
spindle Max speed | 3000 rpm | ||
spindle motor power | 11 kw | ||
X axis / Z axis servo motor | 1.8/1.8kw 11.5N.m | ||
3 | feeding | X/Z axis travel | 195/500 mm |
X/Z axis rapid speed | 18/24 m/min | ||
4 | servo turrets | turn and lock it | 0.3s |
tool number | 8 | ||
tool size | CAPTO C4 | ||
5 | hydraulic tail stock | taper of tail stock | MT5 |
the travel of tail stock | 500mm | ||
the type of moving tail stock | rod type oil cylinder drive | ||
