CV joint Customized Automatic Window Cage Milling Machine
max clamping height: 60mm
Machining window height range:12-40mm
max. diameter of nose end of spindle: Ф 100mm
Max. speed of spindle:3000 rpm
Product Details

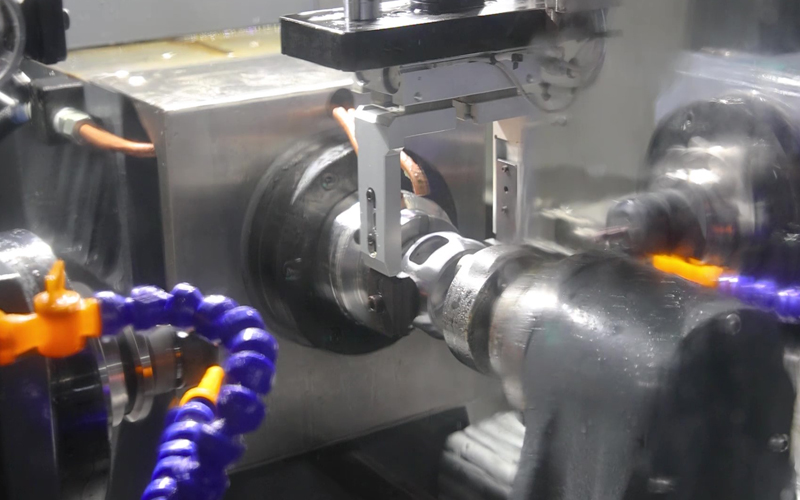

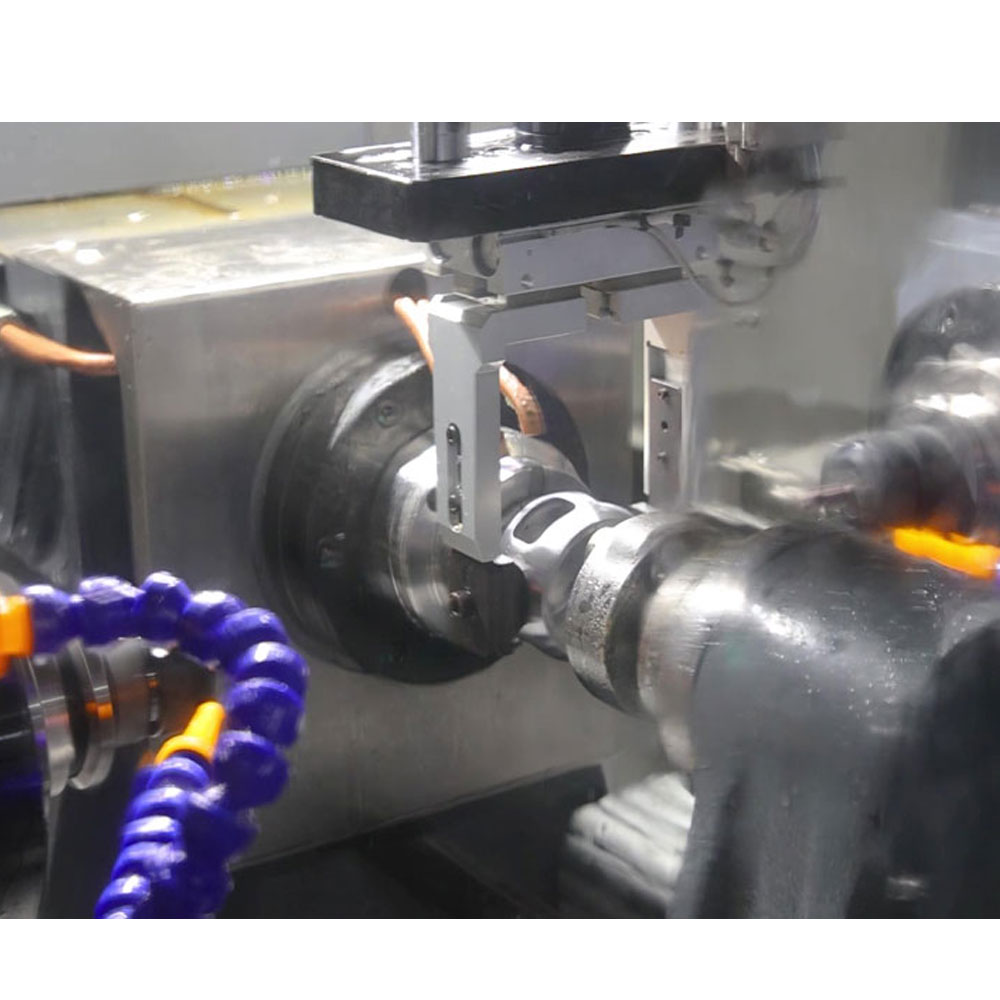

Engineered for the automotive drive train industry, this Customized Automatic Window cage Milling Machine is the ultimate solution for manufacturing CV Joint (Constant Velocity Joint) Cages.Specifically optimized for the Φ40mm to Φ70mm diameter range, this machine delivers high-speed, high-precision milling for the windows (pockets) of ball cages. Powered by a robust 3000 rpm spindle and designed for automation, it ensures cycle times and consistent quality. Whether you are producing joint cages or other automotive bearing retainers, this CNC milling center offers the rigidity and flexibility needed for mass production environments.
Product Advantages

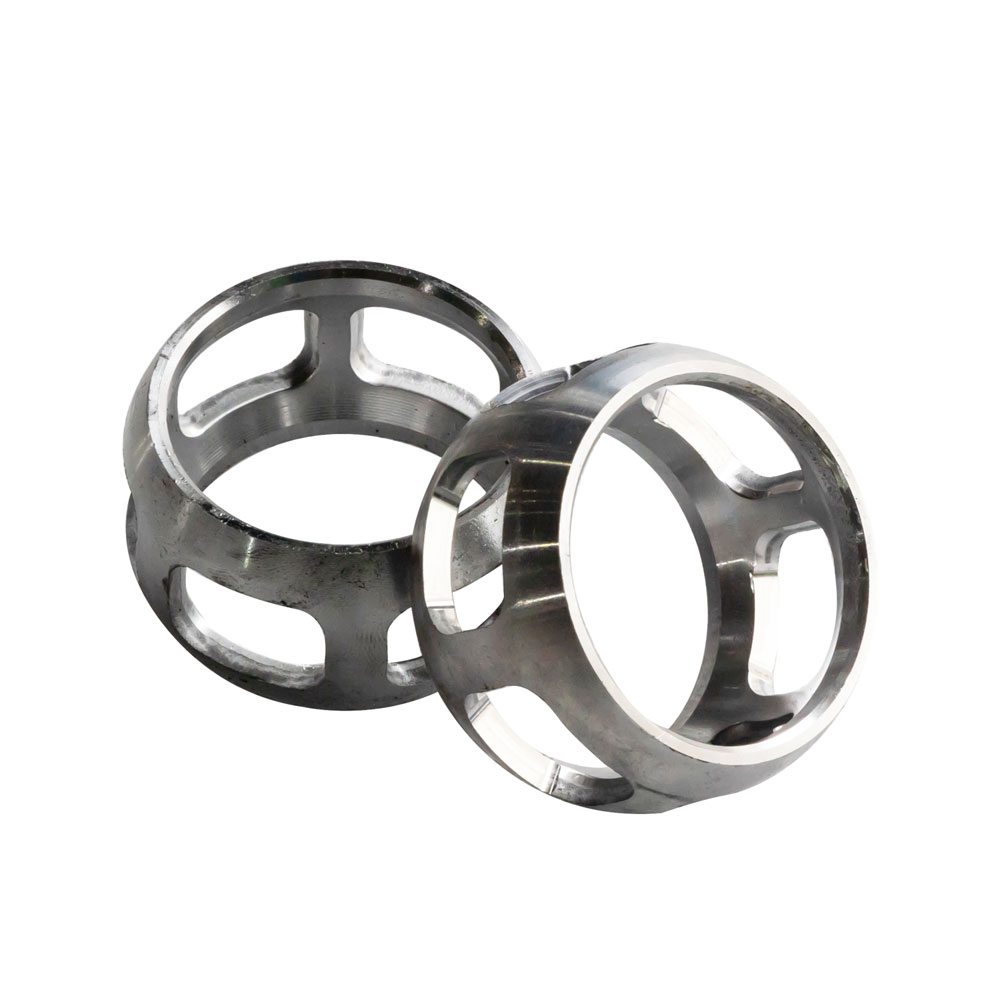

CV Joint Cages:
Clamping range of Φ40-70mm is good tailored for standard passenger vehicle ball cages, ensuring a dedicated and efficient production process.
High Efficiency Spindle:
Features a heavy-duty spindle (Nose Dia.Φ100mm) with a max speed of 3000 rpm, delivering powerful torque for fast material removal and excellent surface finish on cage windows.
Versatile Window Machining:
Capable of handling a Max Clamping Height of 60mm and a Window Machining Height range of 12-40mm, accommodating various cage designs and geometries.

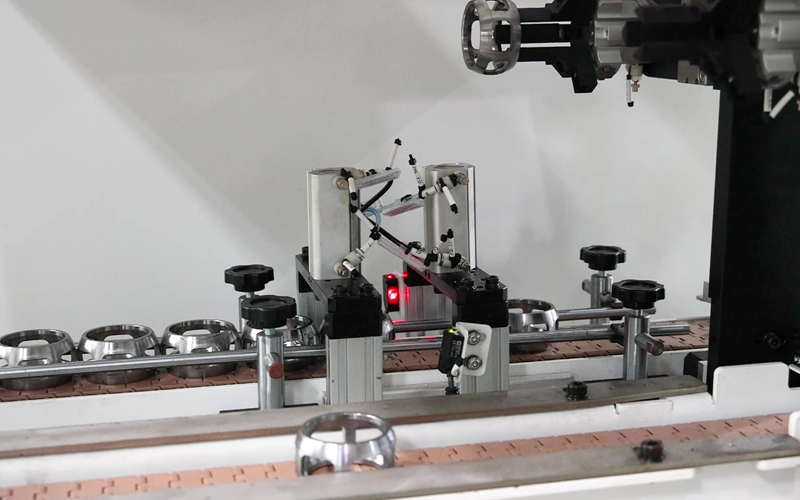

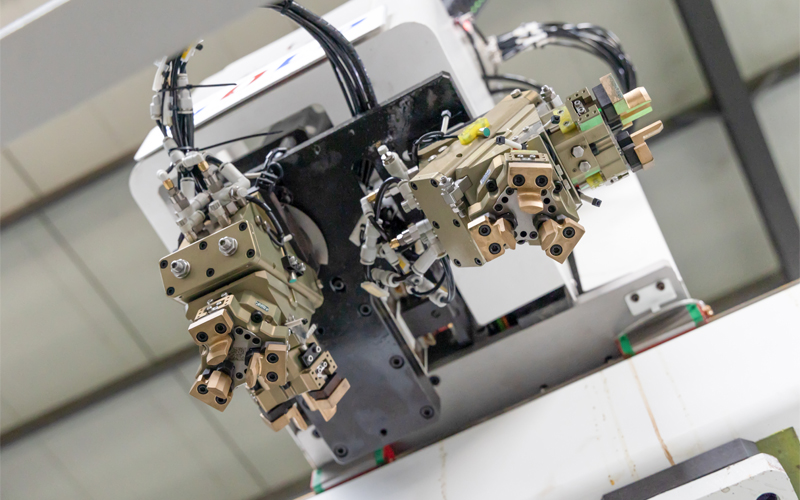

Automated Production Power:
Designed as a fully automatic milling solution, this machine reduces labor dependency and human error, making it ideal for 24/7 manufacturing lines.

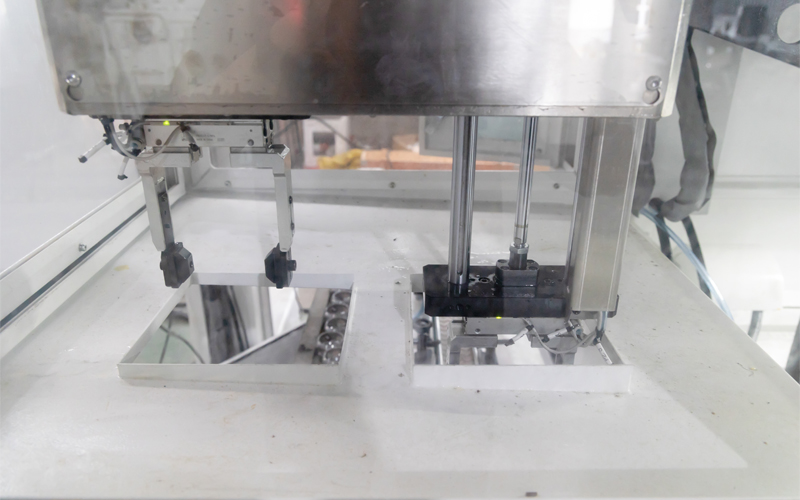

Robust & Customized Fixturing:
Comes with customized clamping solutions to securely hold the cage during the intense milling process, guaranteeing high concentricity and precise window indexing.
Workpiece
Item | QX125 | QM125 | QM135 |
Clamping diameter range | Φ40-120 | Φ40-70 | Φ70-135 |
max clamping height | 60 | 50 | 70 |
window height range | 12-50 | 12-40 | 40-50 |
Tool diameter scope | Φ6-12 | Φ6-12 | Φ6-16 |
weight | 3000 | 3500 | 3600 |
L*W | 3200x2200 | 3650x2500 | 3650x2500 |
