Product Details

With its high-rigidity structural design, precision transmission components, and stable thermal compensation performance, the lathe maintains outstanding dimensional stability and machining consistency during long-term continuous operation.

The servo turret provides rapid response and strong clamping force, making it ideal for heavy-duty and large-stroke machining tasks. The high-pressure coolant system minimizes tool-change downtime and eliminates coolant leakage, significantly enhancing machining efficiency.

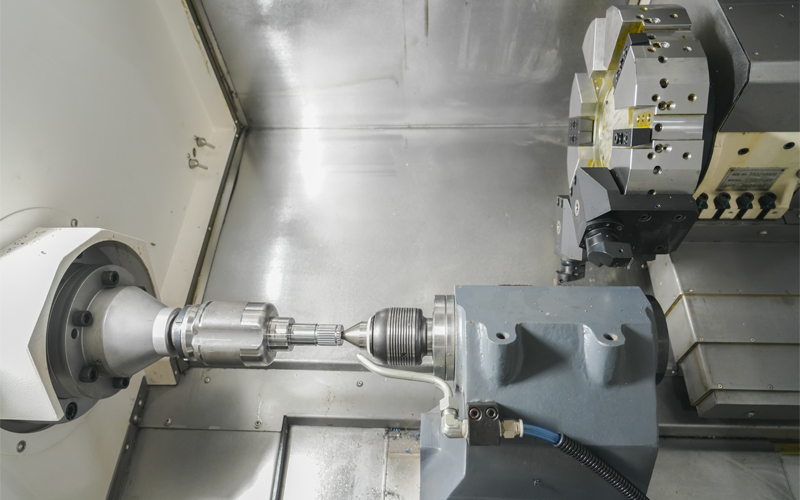

The spindle-type tailstock offers reliable end support for long-shaft workpieces, enabling superior cylindricity and surface quality even under high-speed and heavy-cutting conditions.

Overall, this CNC lathe delivers exceptional advantages in accuracy, rigidity, efficiency, and reliability, making it suitable for mass production and high-precision machining of automotive components, mechanical transmission shafts, precision sleeves, and various industrial parts.

Product Advantages

This CNC lathe series is equipped with a high-precision tool turret with nearest-tool selection. The X and Z axes adopt C3-grade double-nut ball screws paired with high-speed precision screw bearings, and both axes are pre-tensioned to ensure stable transmission and excellent accuracy retention under thermal expansion.

Both axes use P-grade high-rigidity linear guideways combined with precision ball-screw drives, achieving rapid traverse speeds of up to 24 m/min to significantly reduce non-cutting time.

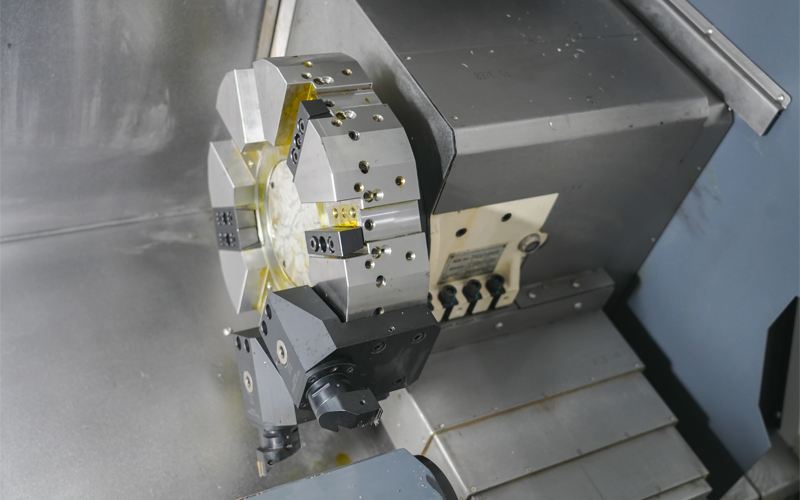

The 8-station high-pressure servo turret features a three-piece face-gear structure, servo-driven with hydraulic automatic clamping. It provides high repeat positioning accuracy, fast tool change, and strong capability for heavy-duty cutting. High-pressure coolant can reach up to 70 kg, and the pump does not need to stop during tool changes, ensuring zero leakage.

The spindle-type tailstock is supported by P4-grade bearings with an MT4 center and a labyrinth mechanical seal, delivering high precision and rigidity for rotating workpiece support and ensuring long bearing life and excellent cylindricity during machining.

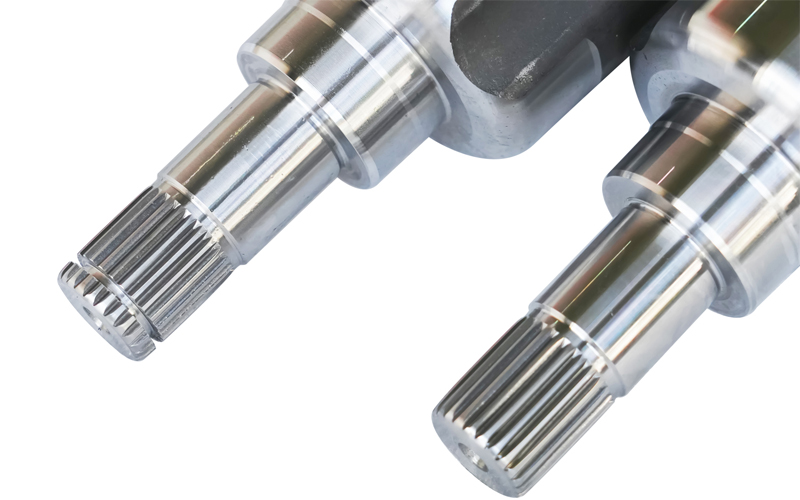

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

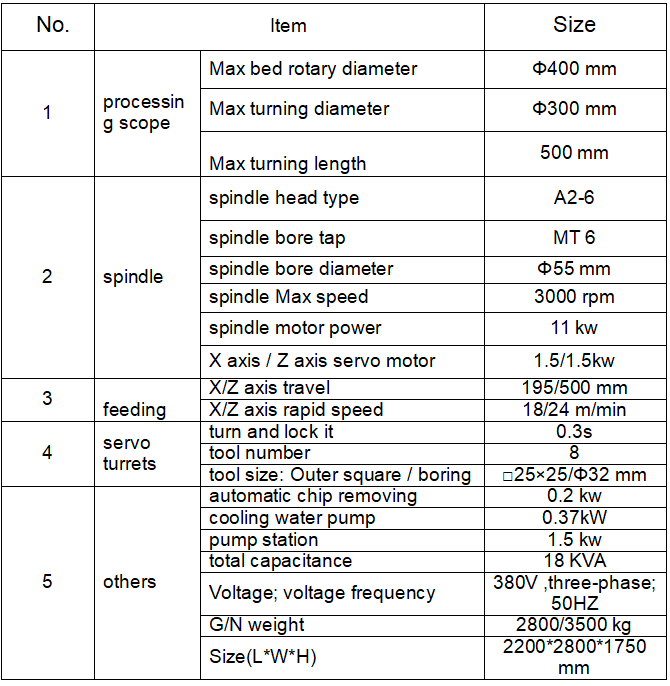

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
