The cold forming process is suitable for materials with an elongation not lower than 8%, commonly including C45, 40Cr, CF53, 20Cr, 20CrMnTi, Q235, and other alloy steels after annealing. It provides high material utilization, significantly improved strength, and excellent consistency.
With its high efficiency and low energy consumption, this spline rolling machine is widely used in the mass production of automotive components (such as tripod housing splines, drive shafts, differential parts, and gearbox shafts), new-energy motor shafts, construction machinery shafts, industrial transmission components, and various spline shafts. Its stable forming capability and highly repeatable accuracy make it a reliable and cost-effective core equipment for modern spline manufacturing.

Product Advantages

We offer a complete range of spline rolling machines, including vertical, horizontal, hydraulic-driven, and servo-driven models to meet various cold-forming spline requirements. Cold forming technology delivers outstanding advantages in precision, efficiency, economy, and energy saving. During the forming process, the material is plastically deformed so that the metal at the tooth root gradually flows toward the tooth crest, producing a high-strength, continuous fiber structure.

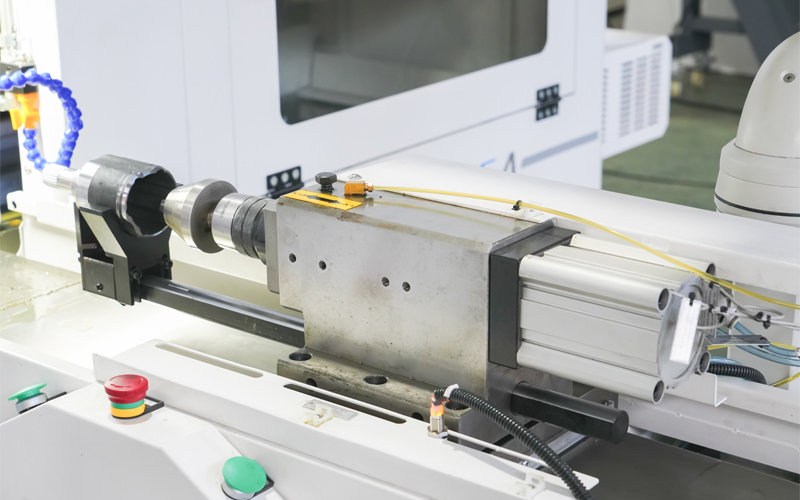

The machine adopts a high-rigidity C-frame structure and is equipped with precise quick-change die modules, flexible die-combination options, reverse rolling capability, axial positioning for accurate workpiece displacement, and multi-position forming in a single clamping. The unique forming principle and precise positioning mechanism allow the spline to be rolled very close to the shoulder without requiring any tool-retraction distance, making it especially suitable for directional splines and partial-tooth profiles.

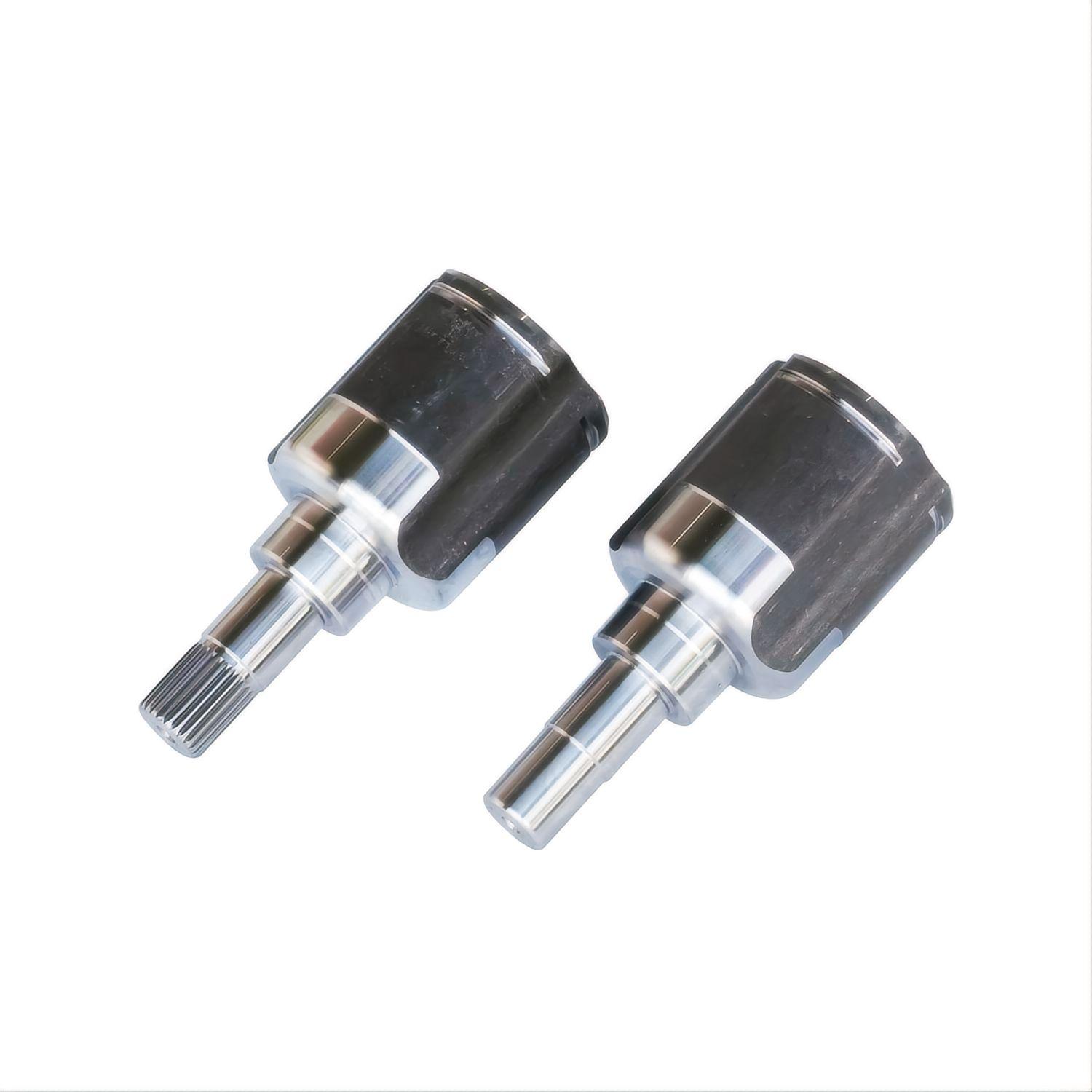

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

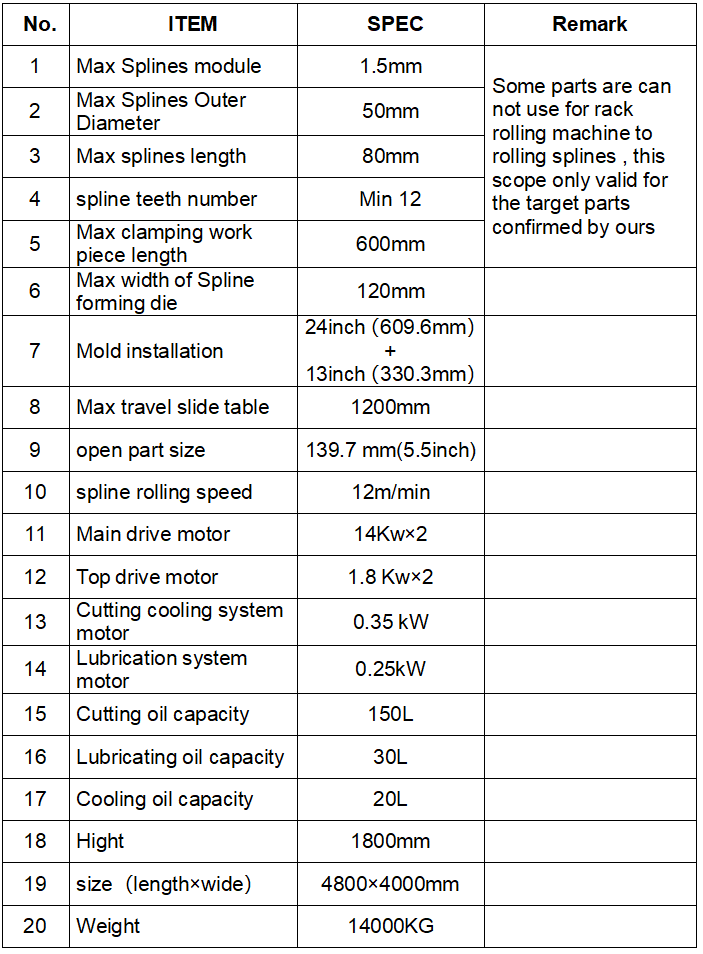

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
