CNC Inner Race Groove Hard Turning and Hard Milling Machine
Max clamping workpiece length: 60mm
Max. inner diameter(PCD) of the ball groove: Ф 20~ Ф65mm
Spindle rotating speed: 100-1500r/min
Product Details
Ball cage hard turning and milling machine for milling groove and turning sphere；
The hard turning and hard milling compound machine is specially developed for precision machining of CV joint inner race. It integrates hard turning, hard milling, and automation into one compact system, achieving high accuracy and efficiency through single clamping.
Product Advantages
Single clamping enables hard milling of the groove or hard turning of the spherical surface, ensuring high precision and eliminating errors from multiple setups.
The integral frame-type casting or granite structure provides excellent rigidity and vibration resistance for stable machining performance.
Multi-process compound machining replaces grinding with turning and milling, greatly improving productivity and reducing costs.
Fully enclosed protection separates the machining area from the loading unit, ensuring operator safety and easy maintenance.

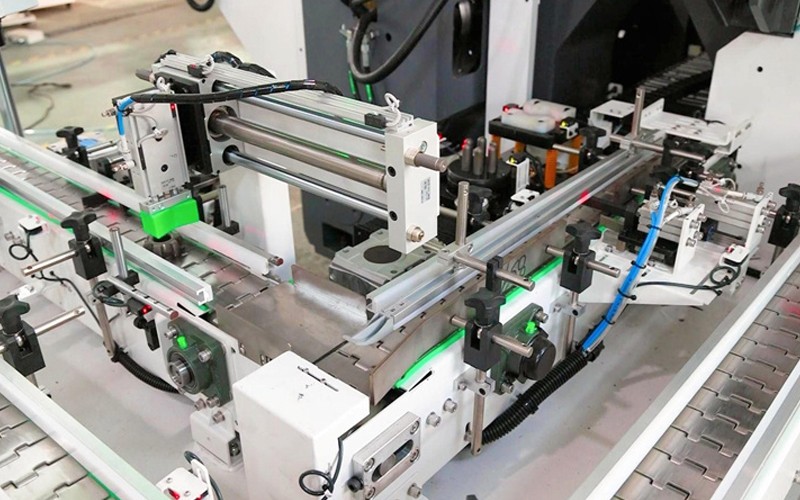

.jpg "loading-unloading-system")

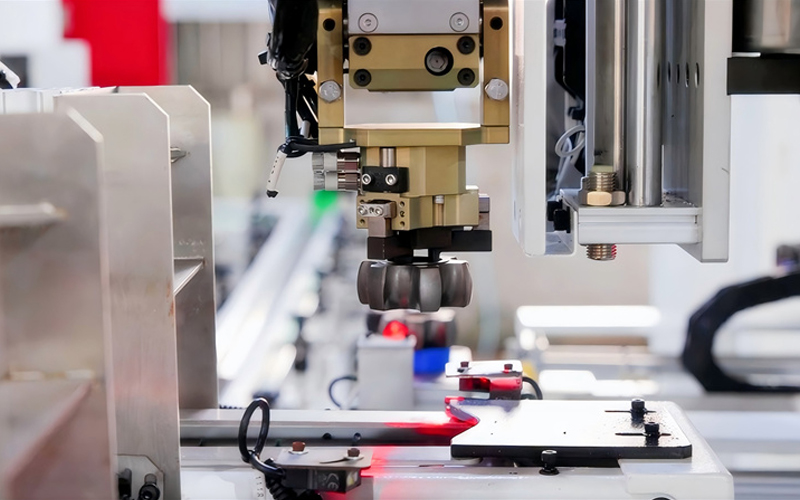

.jpg "inner-clamping-jaw")

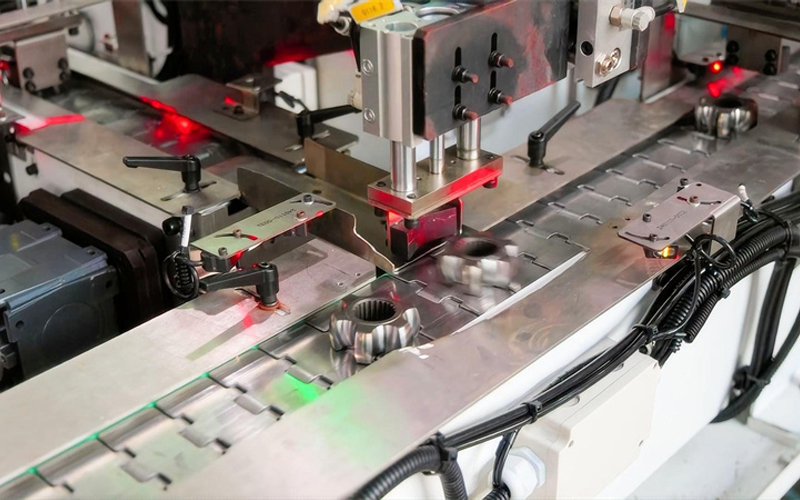

.jpg "loading-conveyor")

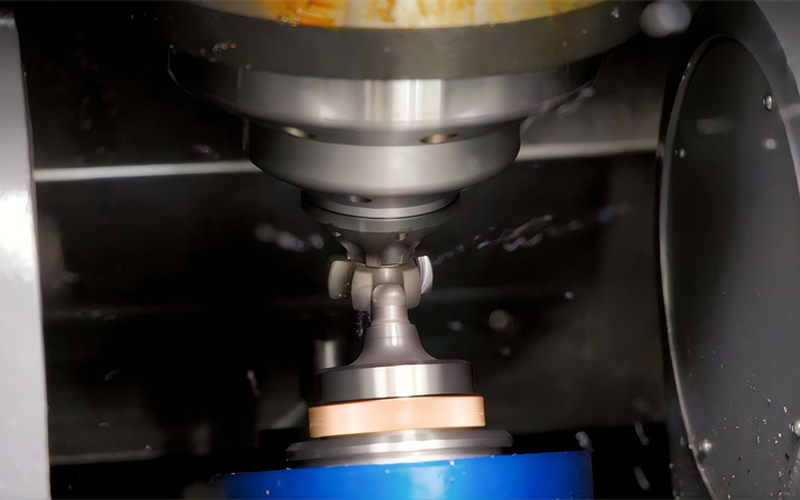

.jpg "milling-groove")

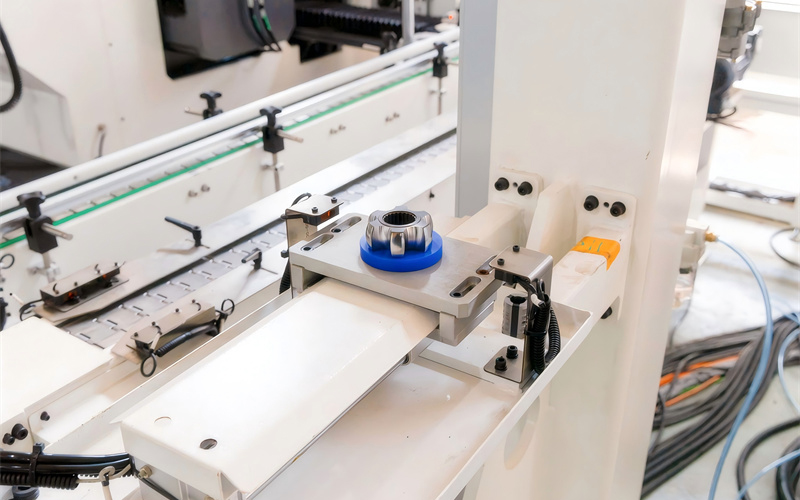

.jpg "checking-table")

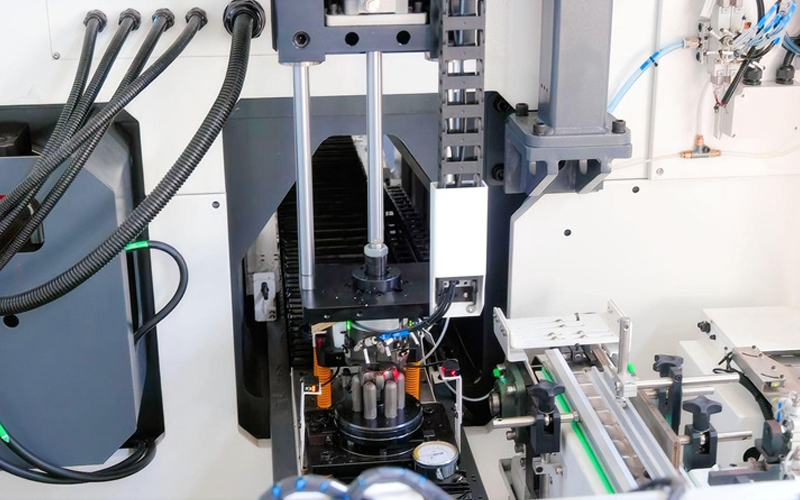

.jpg "precision-positioning-function")

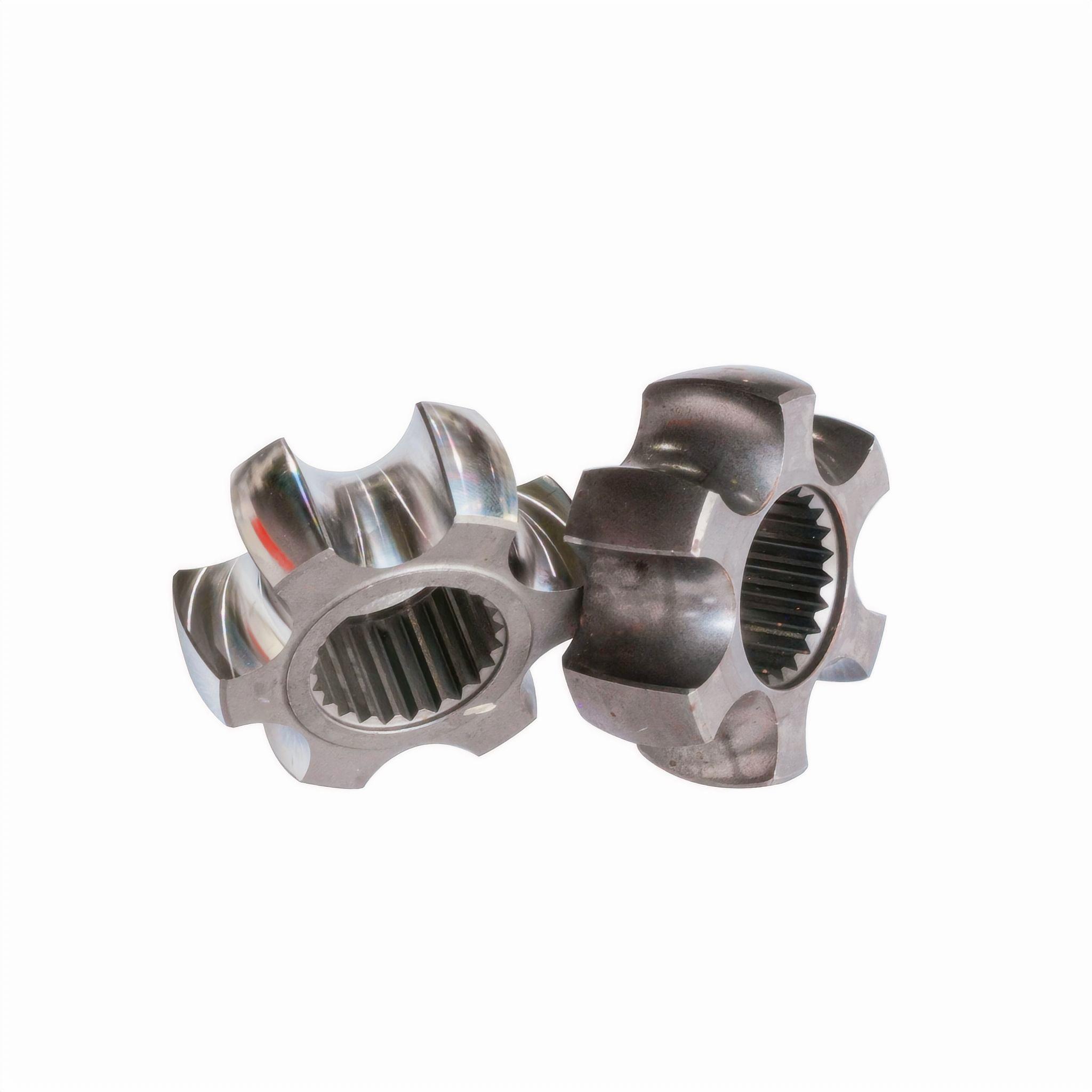

Workpiece
 | CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. |
Technical Data
ITEM | Outer race | Inner race |
Max.clamping diameter (mm) | Φ110 | Φ35 |
Max.work piece length (mm) | 260 | 60 |
Groove diameter scope (mm) | Φ45-Φ95 | Φ20-Φ65 |
Diameter of steel ball scope (mm) | Φ12.7-Φ22 | Φ12.7-Φ22 |
Max.work piece handle diameter (mm) | Φ38 | -- |
Weight (kg) | 9000 | 9000 |
L x W (mm) | 4000*4500 | 4000*4500 |
