CV joint hard turning and hard milling compound machine
Max clamping workpiece length：60-180mm
Max. inner diameter(PCD) of the ball groove: Ф 47~ Ф95mm
Inner sphere diamater:Ф 45~ Ф90mm
Spindle rotating speed: 100-1500r/min
Product Details
ball cage hard turning and hard milling machine:

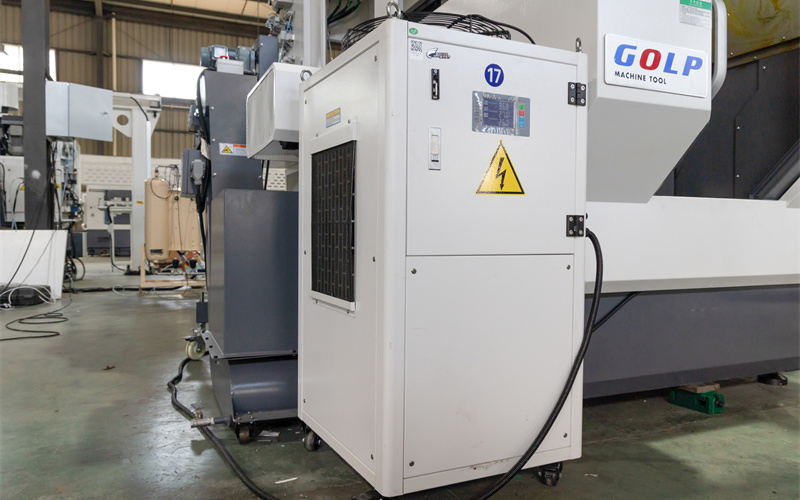

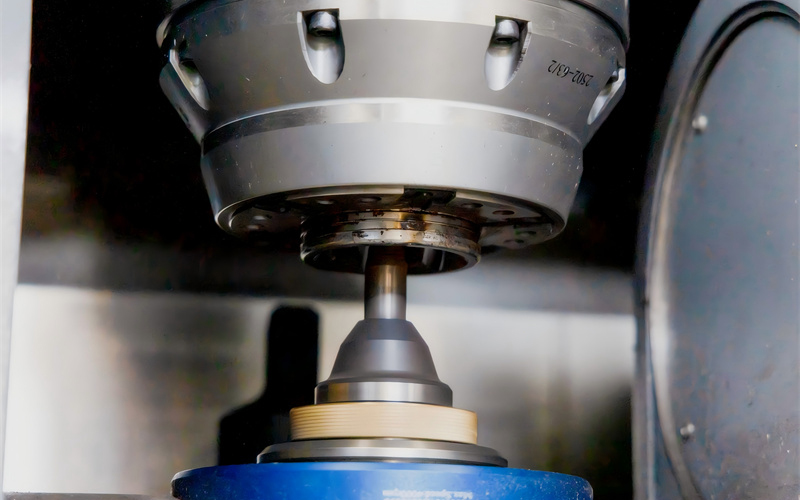

This machine is specially designed for hard turning and hard milling of CV joint outer race. It integrates high rigidity, precision machining, and automatic loading in one system. With single clamping, it can finish grooves and spherical surfaces efficiently through compound turning and milling.
Product Advantages

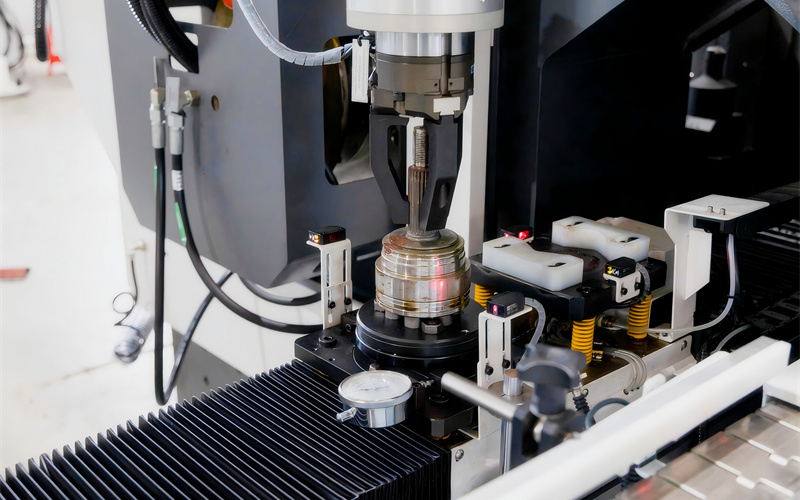

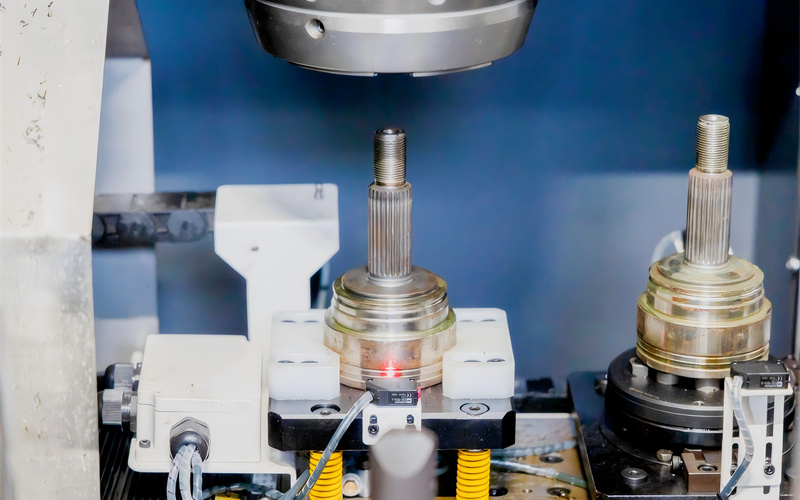

Single clamping enables hard milling of the groove or hard turning of the spherical surface, ensuring high precision and eliminating errors from multiple setups.
Multi-process compound machining replaces grinding with turning and milling, greatly improving productivity and reducing costs.
Dry cutting and air cooling eliminate the need for cutting fluids, making the process eco-friendly and cost-efficient.

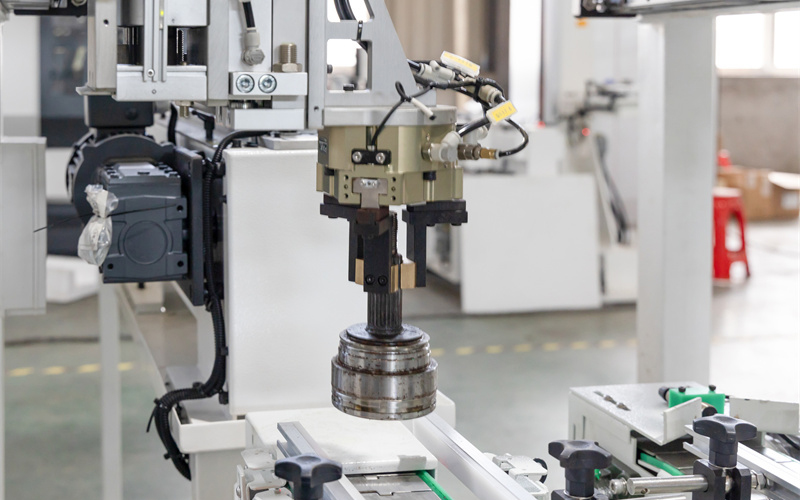

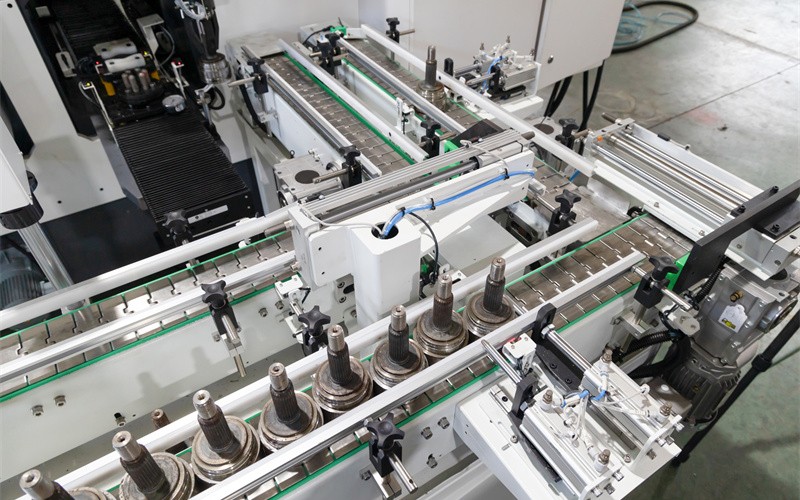

Equipped with an automatic loading system and modular clamping units, the machine offers easy operation and fast cycle times.

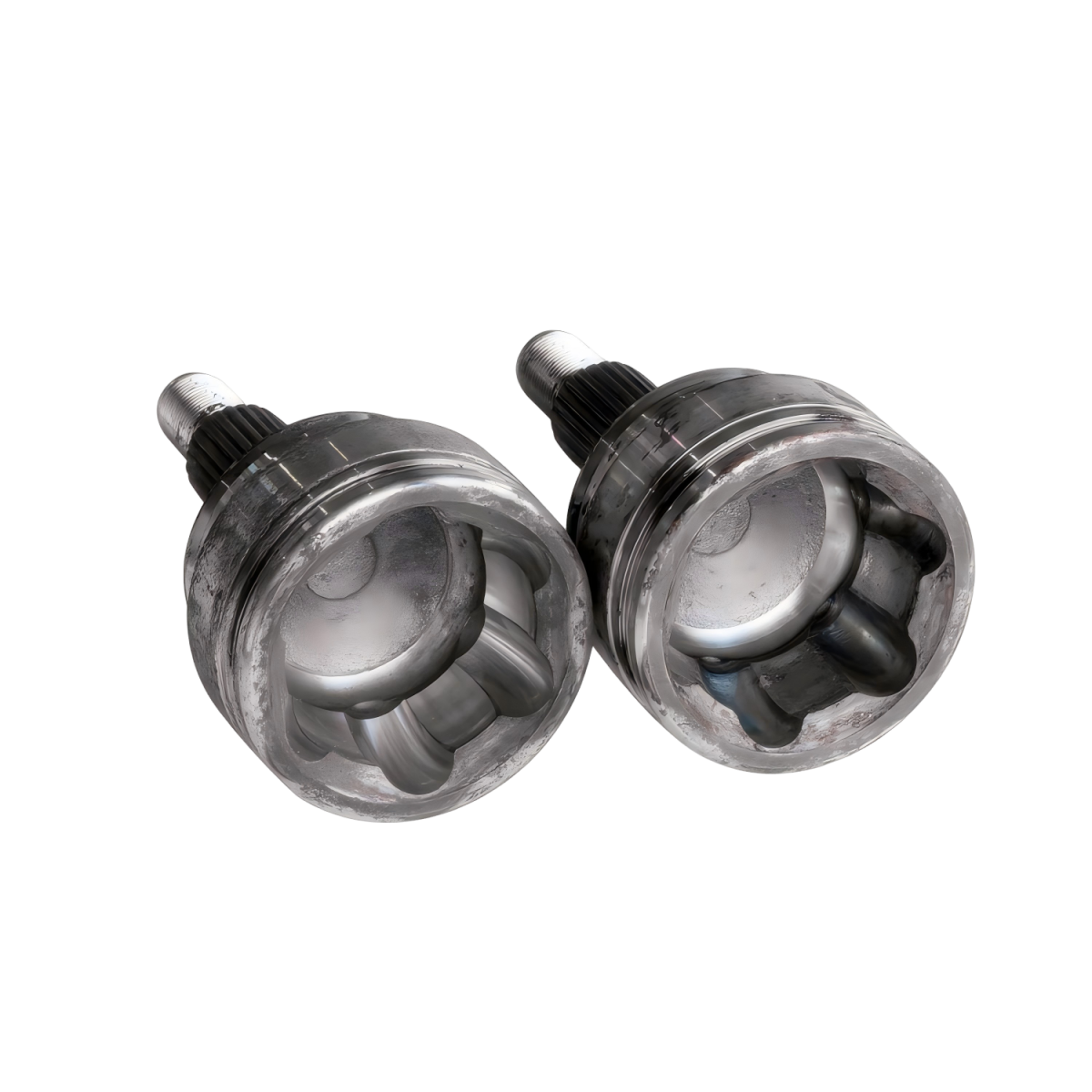

Workpiece
.png "outer-race") | CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. |
Technical Data
ITEM | Outer race | Inner race |
Max.clamping diameter (mm) | Φ110 | Φ35 |
Max.work piece length (mm) | 260 | 60 |
Groove diameter scope (mm) | Φ45-Φ95 | Φ20-Φ65 |
Diameter of steel ball scope (mm) | Φ12.7-Φ22 | Φ12.7-Φ22 |
Max.work piece handle diameter (mm) | Φ38 | -- |
Weight (kg) | 9000 | 9000 |
L x W (mm) | 4000*4500 | 4000*4500 |
