We provide full-process professional machine tool services and customized automation solutions: In response to the production needs of industries such as auto parts and precision machinery processing, we can offer one stop services including machine tool selection guidance, installation and commissioning, operation and maintenance, so as to ensure the equipment is quickly put into production.

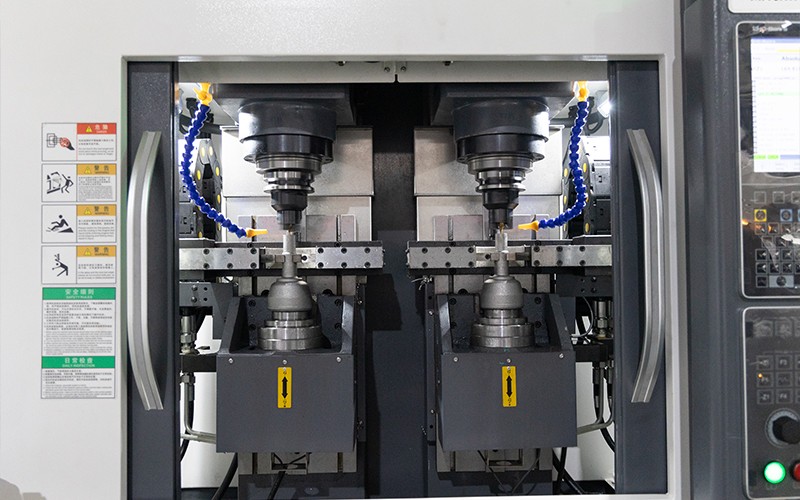

It efficiently completes end face milling + center hole drilling in 25 seconds, with a clamping range of Φ15-35mm and a machining length range of 100-250mm. It achieves A4 (R4) center hole precision, is equipped with a total power of 15kw and a cutting fluid capacity of 160L, and is suitable for mass production of auto parts.

Product Advantages

1. After milling, the roughness of the end face is ≤Ra3.2μm, and the surface roughness of the center hole is also ≤Ra3.2μm, which far exceeds the basic processing standards of the industry. The fine surface quality can directly reduce subsequent secondary processing procedures such as grinding and polishing, thereby lowering labor and time costs.

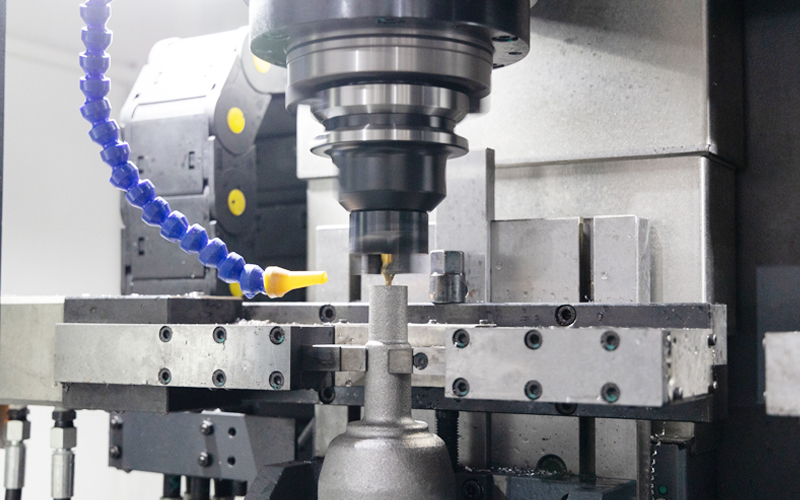

2. The center hole machining capability complies with the Standard A4 (R4) standard, featuring high hole position accuracy and excellent surface finish. It provides a precise positioning foundation for subsequent processes (such as grinding and turning) and reduces secondary machining errors.

3. The equipment is equipped with a dedicated door lock protection device. During machining processes such as milling and drilling, the machine door will be automatically locked and cannot be opened.

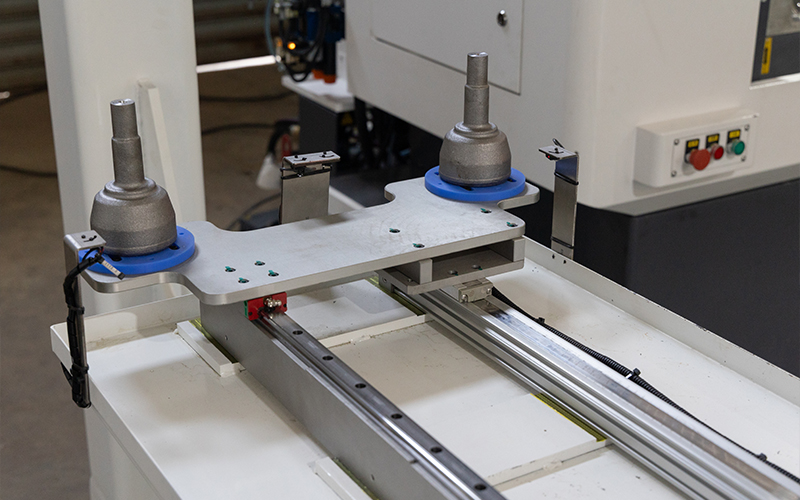

4. It is equipped with a dedicated inspection table. After processing, the outer race work pieces undergo routine sampling inspection of key indicators such as dimensional accuracy, surface roughness, and center hole quality. Only after passing the inspection can the next batch of production be started, eliminating defective products at the source.

Workpiece

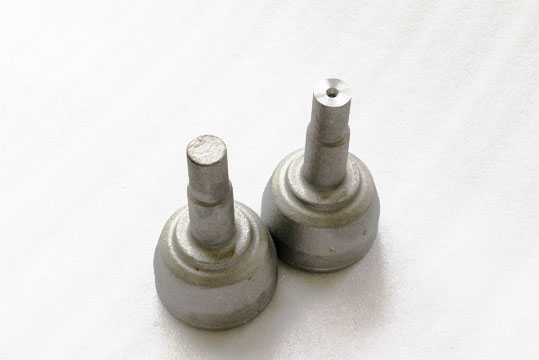

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

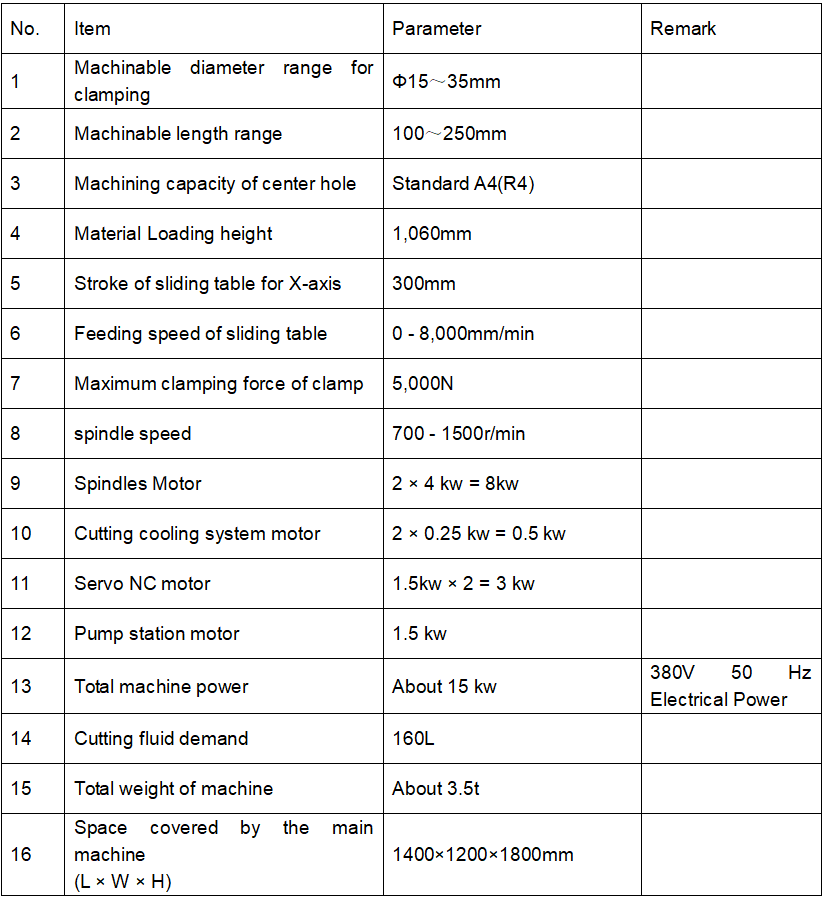

Technical Data

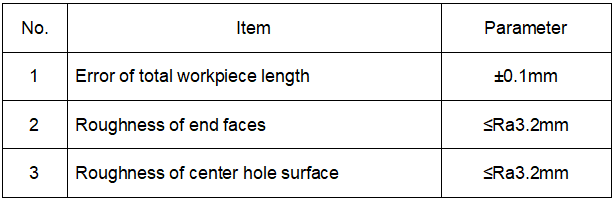

Machining Precision

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
