Product Details

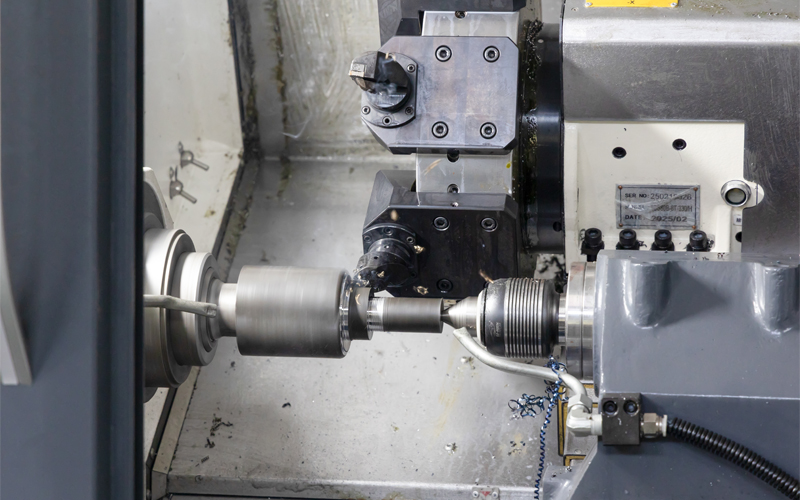

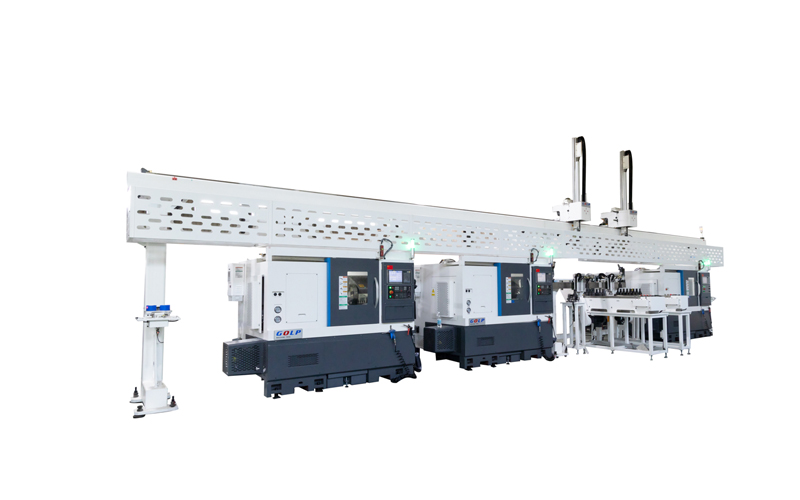

This automated lathe for precision turning of tripod housings combines high speed, high precision machining with automation. Equipped with a loading magazine, pneumatic grippers, precision positioning, and automatic material exchange, it minimizes manual handling and ensures stable, repeatable alignment. The 8-station rotary turret with quick-change tooling, tailstock, and dedicated inner support fixtures allows efficient external turning of large or complex parts. Integrated gantry robots and pneumatic inspection stations enhance workflow efficiency and maintain consistent surface quality up to Ra1.6, accommodating workpieces up to Ф300 mm in diameter and 500 mm in length.

Product Advantages

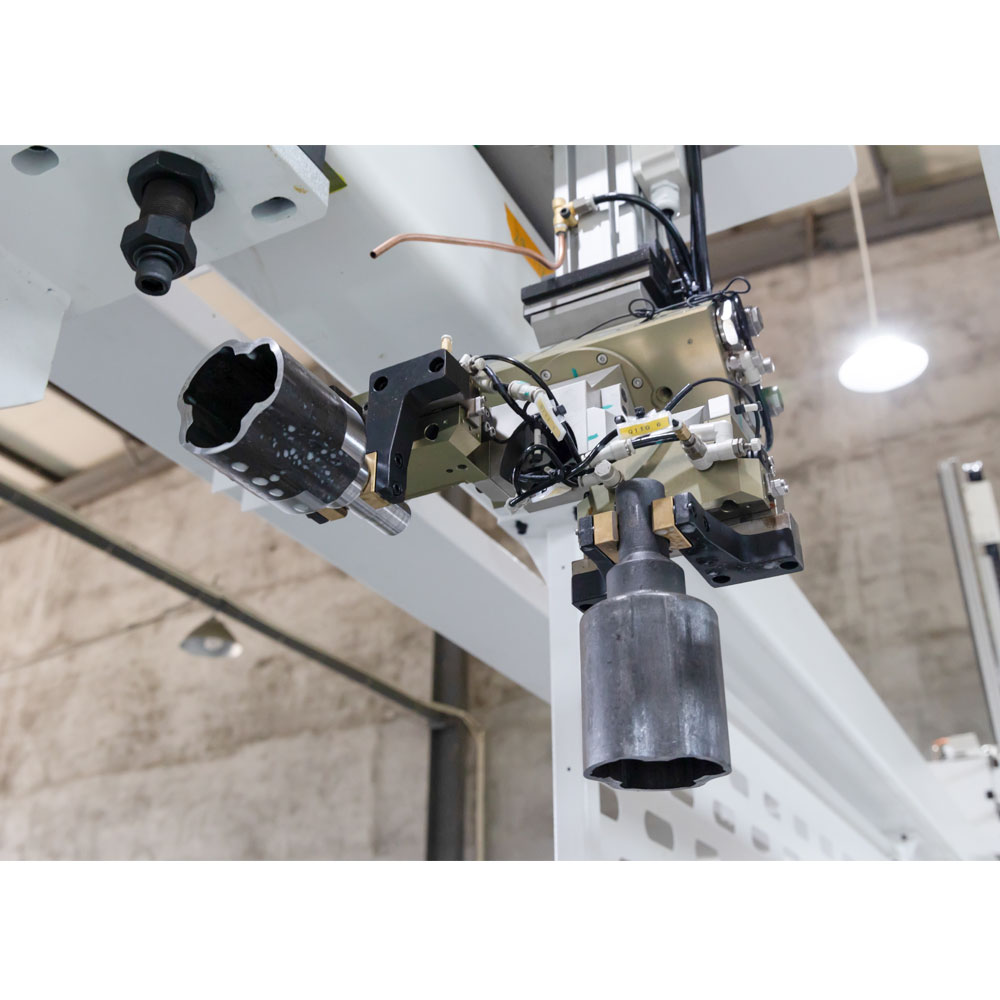

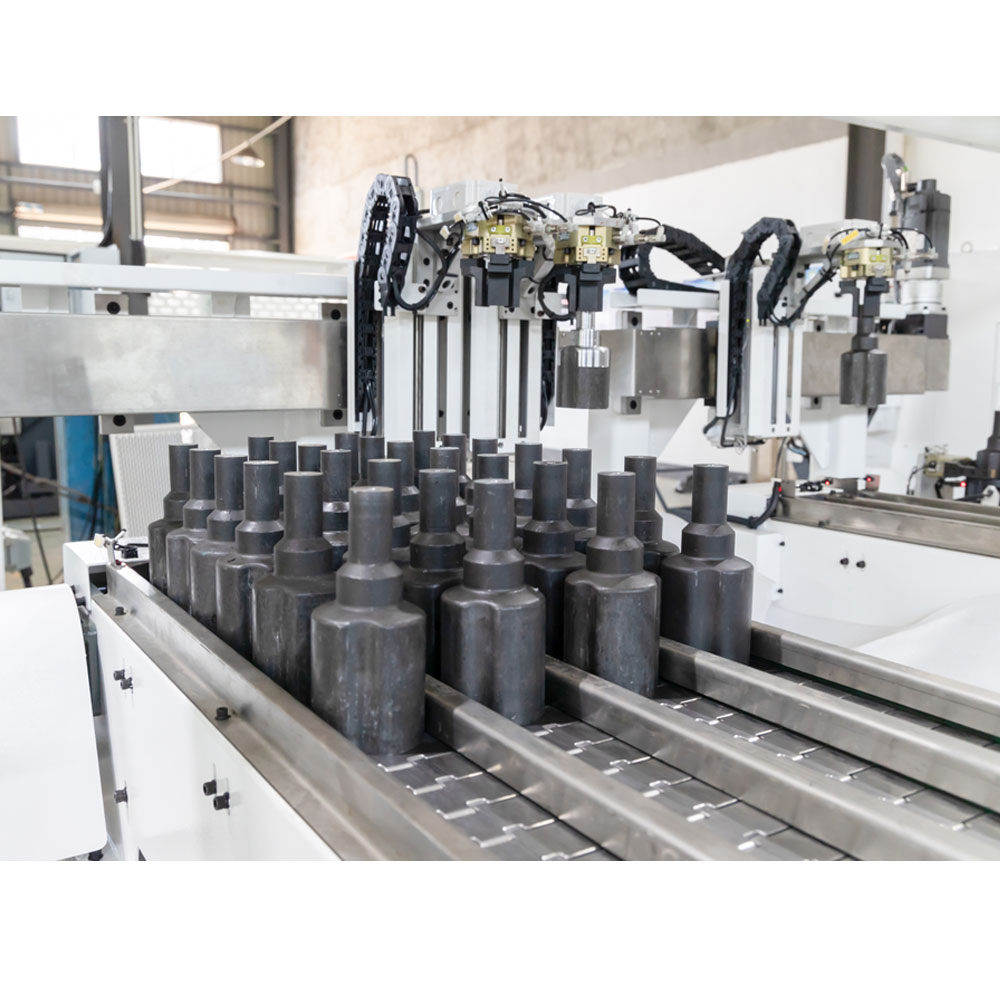

Loading magazine and automatic material exchange for continuous operation.

Pneumatic grippers with precision positioning ensure repeatable accuracy.

8-station rotary turret with quick-change tooling for flexible machining.

Tailstock and dedicated inner support fixtures stabilize long or heavy workpieces.

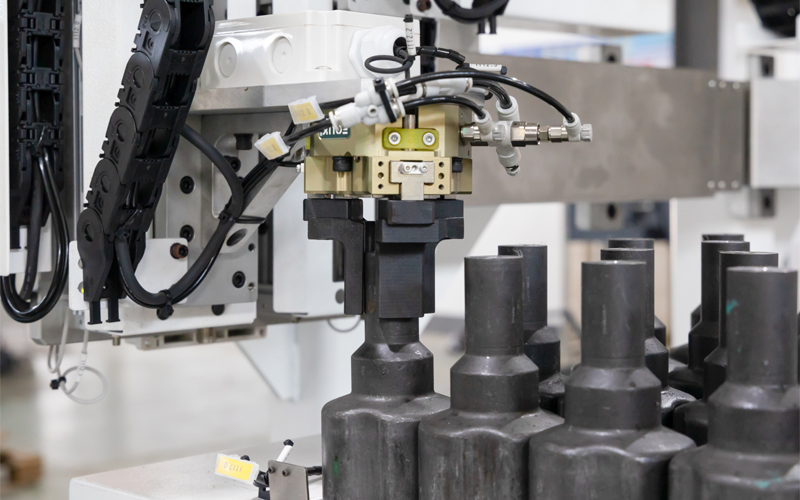

Automated manipulator for unmanned operation and improved efficiency.

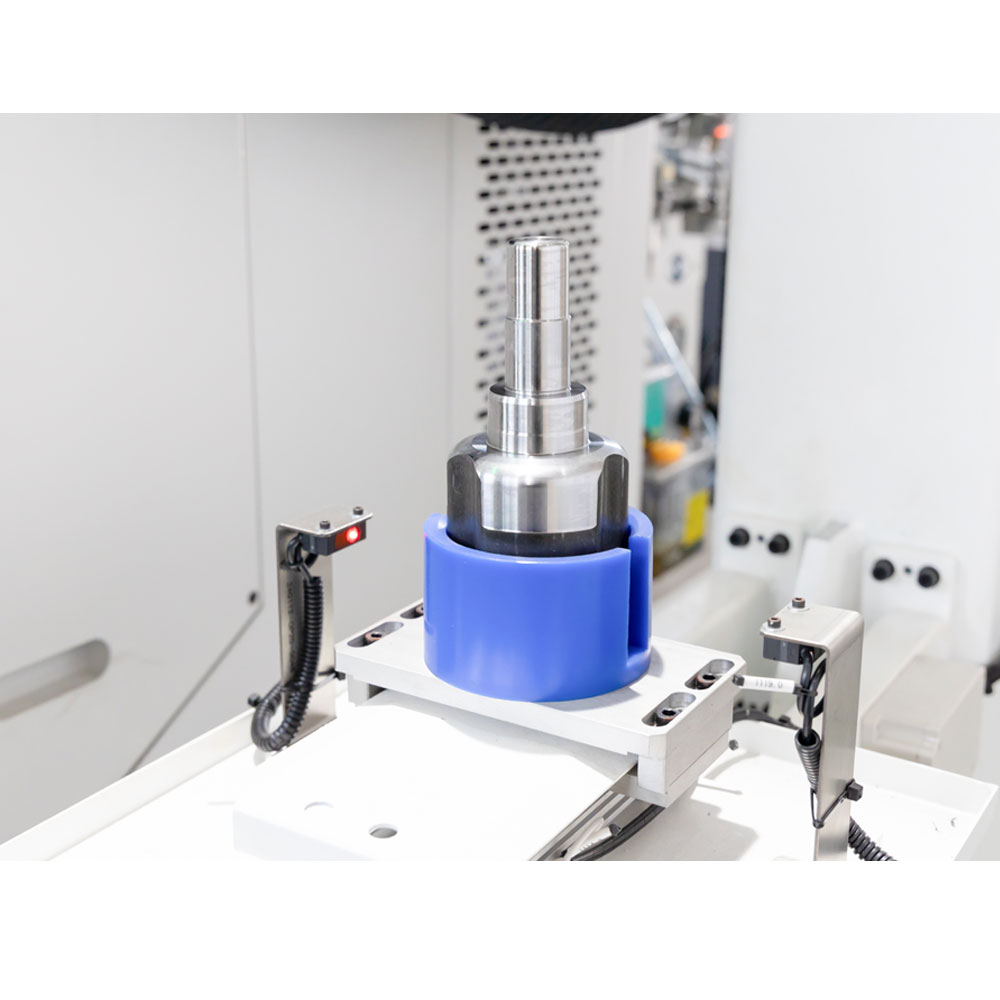

Pneumatic checking station for real-time quality verification.

High machining capability: max turning diameter Ф300 mm, max length 500 mm, spindle bore Ф55 mm, spindle max speed 3000 rpm, surface roughness Ra1.6.

Specialized for external turning of tripod housings, ensuring precise and consistent results.

Workpiece

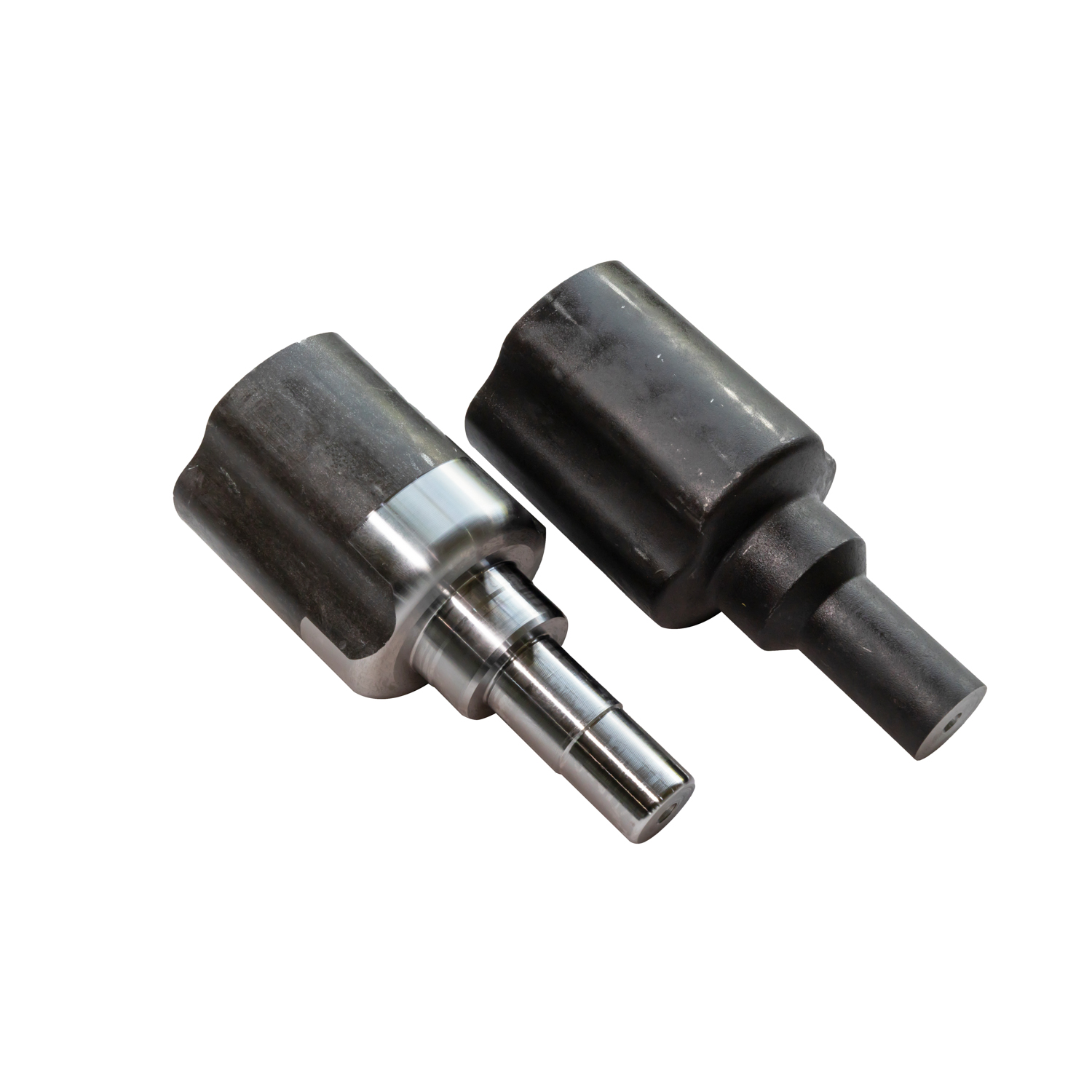

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!
