Product Details

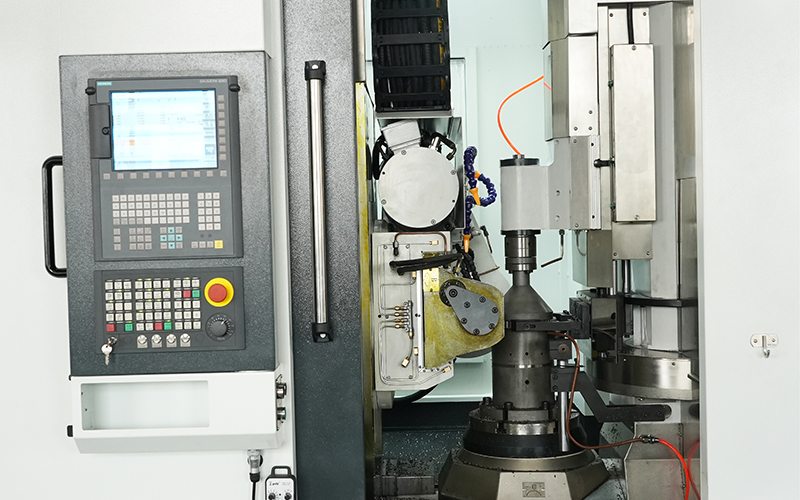

G350 High speed 6 axis automatic CNC gear hobbing machine,support both dry and wet cutting dry. it offers a user friendly Siemens system,

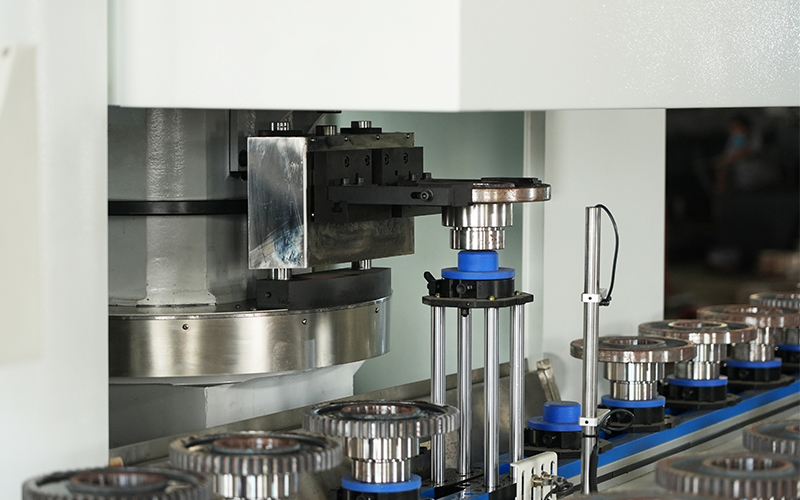

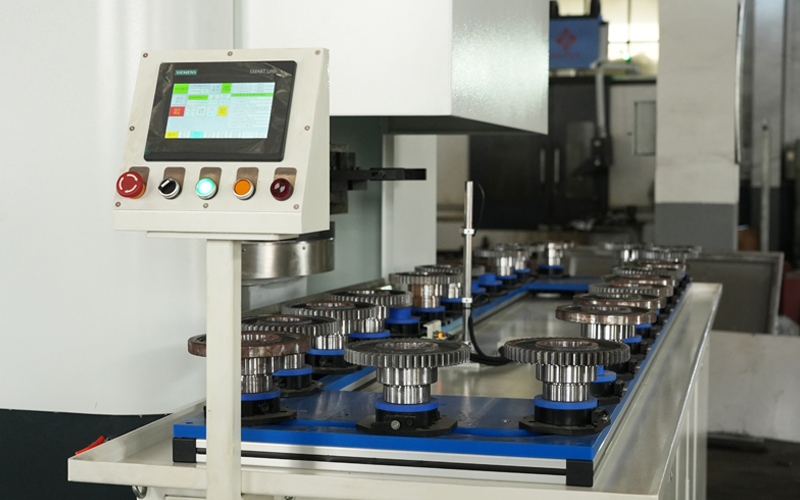

The lifting mechanism feeds the gear blank, and a gripper transfers the gear blank to the worktable through the loading and unloading rotary mechanism.

It has 6 axis and 4 linkages perfect for High speed and high Efficiency gear Machining; and can work stably even in batch production. support modules up to 8 and a max.diameter of 360.

Automatic hobbing creates more effcient processing and lower production costs. They can process various gears, cylindrical gears,sprockets, pulleys, worm gears etc.

Product Advantages

Ⅰ. A-axis can rotate ±45° in both directions, suitable for machining large helix angle helical gears;

Ⅱ. B-axis is driven by a direct-drive motor, providing high speed and cutting force, with a hydraulic tool holder enabling rapid tool change;

Ⅲ.C-axis features a high-precision, high-torque direct-drive motor directly driving the worktable, ensuring indexing accuracy and strong machining power;

Ⅳ. X and Z axes use servo motors with preloaded precision ball screws, supported by high-precision, high-rigidity bearings, and employ square hard rail guides;

Ⅴ. Y-axis uses a servo motor with precision gear drive to ensure accurate tool shifting and extended tool life.

Workpiece

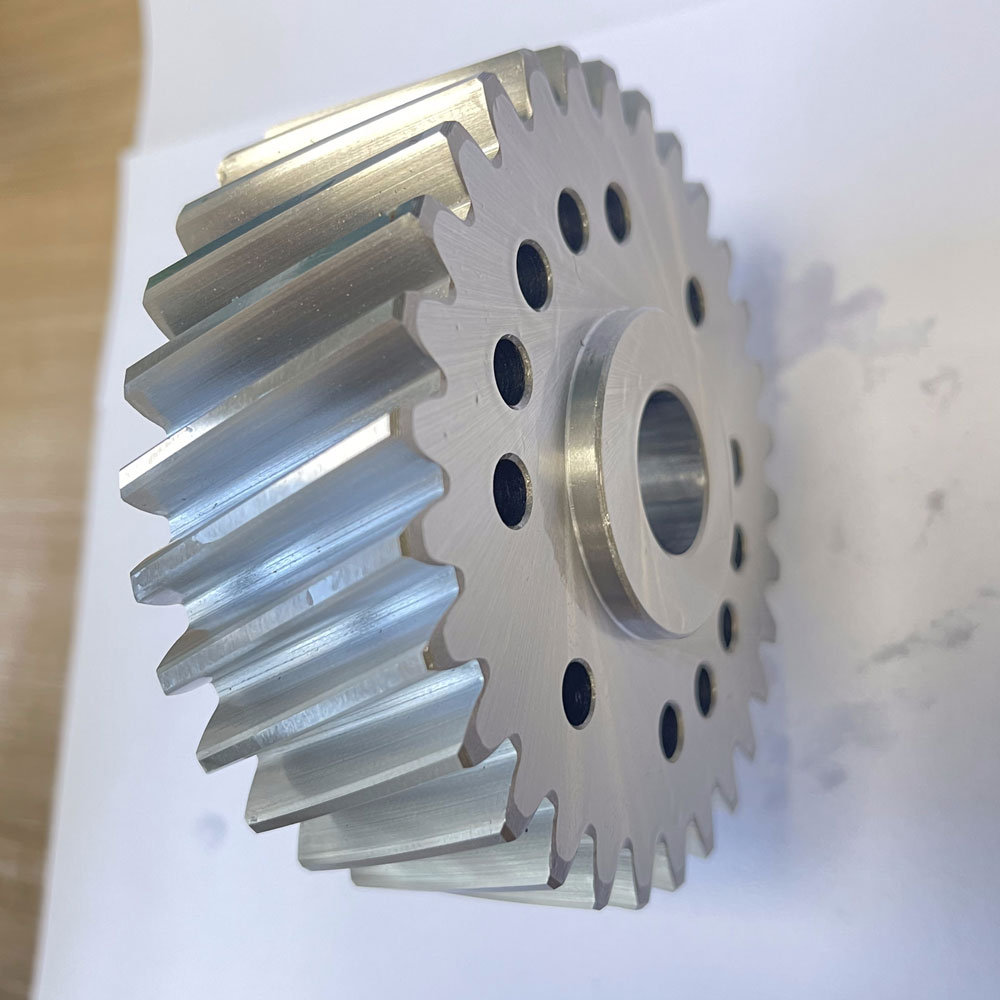

The following gear parts can be machined using the generating method: spur gears, helical gears (shaft gears, disc gears), worm gears, small bevel gears, drum gears, splines, sprockets, and synchronous belt pulleys. More

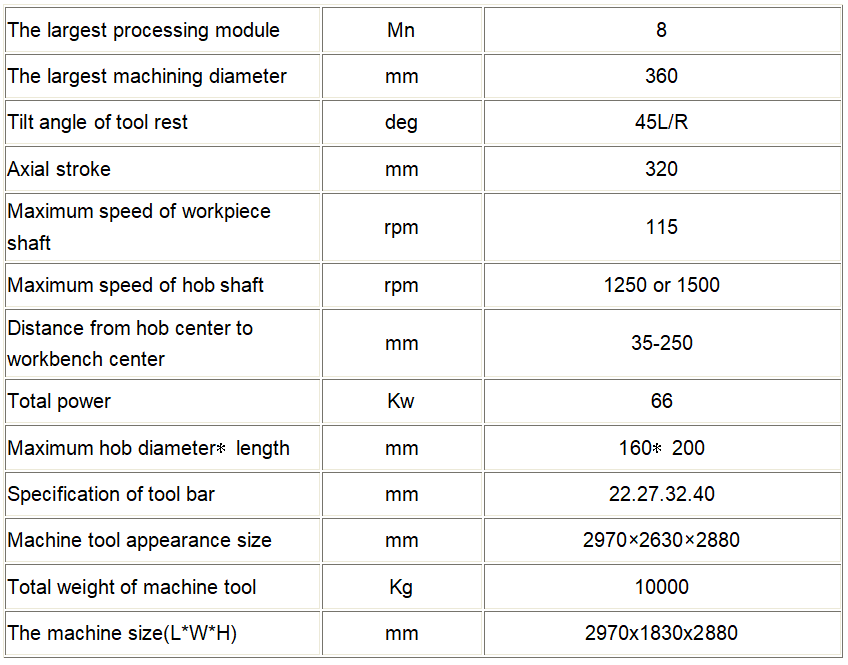

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
