What Is a CNC Automated Production Line for Automotive Parts?

What Is a CNC Automated Production Line?

A CNC automated production line is a complete CNC automation solution designed to achieve stable, efficient and continuous machining for automotive parts.

By integrating CNC machines with feeding manipulators, gantry automation systems and automatic inspection, manufacturers can build a fully automated production line that minimizes manual operation and improves machining consistency.

In automotive parts manufacturing,CNC automation is widely applied to processes such as gear grinding, chamfering and rolling, as well as the machining of CV joint components including outer race, inne race and cage parts. Compared with standalone CNC machines, an automated production line ensures precise positioning, stable cycle time and reliable quality control throughout the entire production process.

A well designed CNC automated production line can be customized based on customer drawings, production capacity and process requirements, allowing manufacturers to achieve unmanned night shift operation, higher productivity and long term cost efficiency.

Key Components of a CNC Automated Production Line

A complete CNC automation solution typically includes the following core modules:

Robotic loading & unloading systems

Robots or feeding manipulators automatically load raw parts into CNC machines and unload finished components, ensuring precise positioning and stable cycle times.

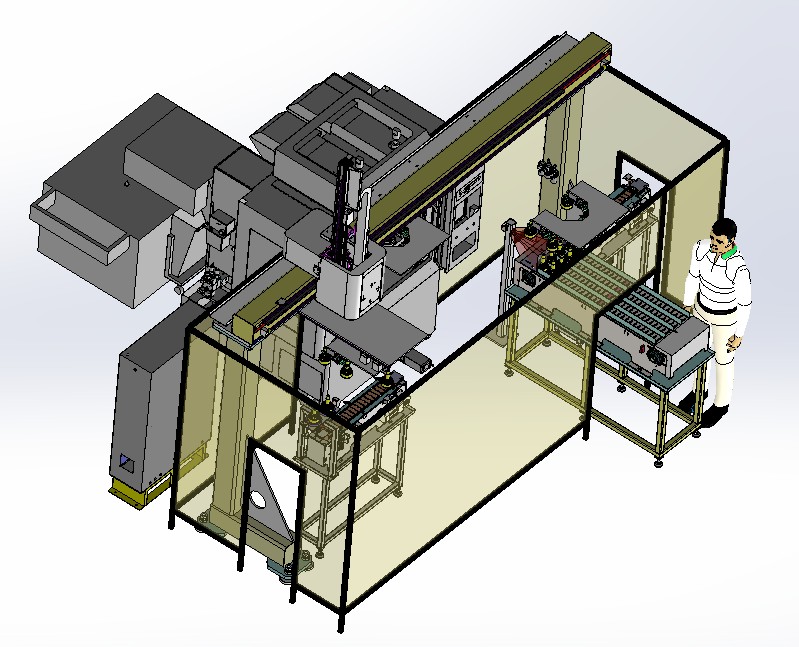

Gantry automation systems

Gantry robots are commonly used in automotive production lines for high speed, multi station handling, especially suitable for batch production of gear and CV joint parts.

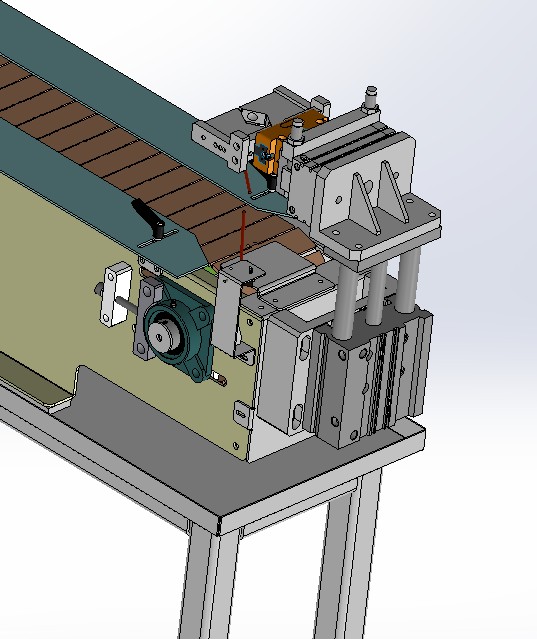

Automatic gauging and inspection

In-line measurement systems monitor critical dimensions during machining, helping manufacturers maintain consistent quality and reduce scrap rates.

Conveyor and pallet systems

These systems transfer workpieces between machines and stations smoothly, forming a continuous automated production flow.

Unmanned night shift operation

By combining CNC automation and reliable feeding systems, production lines can run unattended during night shifts, significantly improving equipment utilization.

Typical Machining Processes in an Automated Line

For automotive parts manufacturing, CNC automated production lines are commonly applied to processes such as:

grinding and broaching

Shaft rolling and finishing

CV joint component machining, including outer race, inner race, cage, and tripod housing parts;

Automation ensures that each process maintains stable accuracy while reducing dependence on manual labor.

Advantages of CNC Automation for Automotive Parts

Implementing an automated production line offers several key benefits:

Higher production efficiency through continuous operation;

Improved machining consistency with reduced human error;

Lower labor costs and safer working conditions;

Flexible configuration, allowing customization based on part design and production volume;

These advantages make CNC automation an essential solution for modern automotive parts manufacturers.

Custom Automation Based on Customer Drawings

Every automotive component has unique design and process requirements.

To ensure the automated production line meets exact specifications, customer drawings and technical requirements are essential.

Based on the drawings, the automation solution--including machine configuration, fixtures, feeding manipulators, and inspection systems--can be customized to produce parts that fully meet customer expectations in accuracy, efficiency, and reliability.

Conclusion

A CNC automated production line is more than a combination of machines--it is a complete manufacturing solution.

By integrating CNC machines with feeding manipulators, gantry systems, and inspection modules, manufacturers can achieve efficient, stable, and scalable production for automotive parts such as gears and CV joint components.

With a well-designed automation solution based on customer drawings, CNC automation becomes a powerful tool for improving competitiveness and long-term manufacturing capability.
